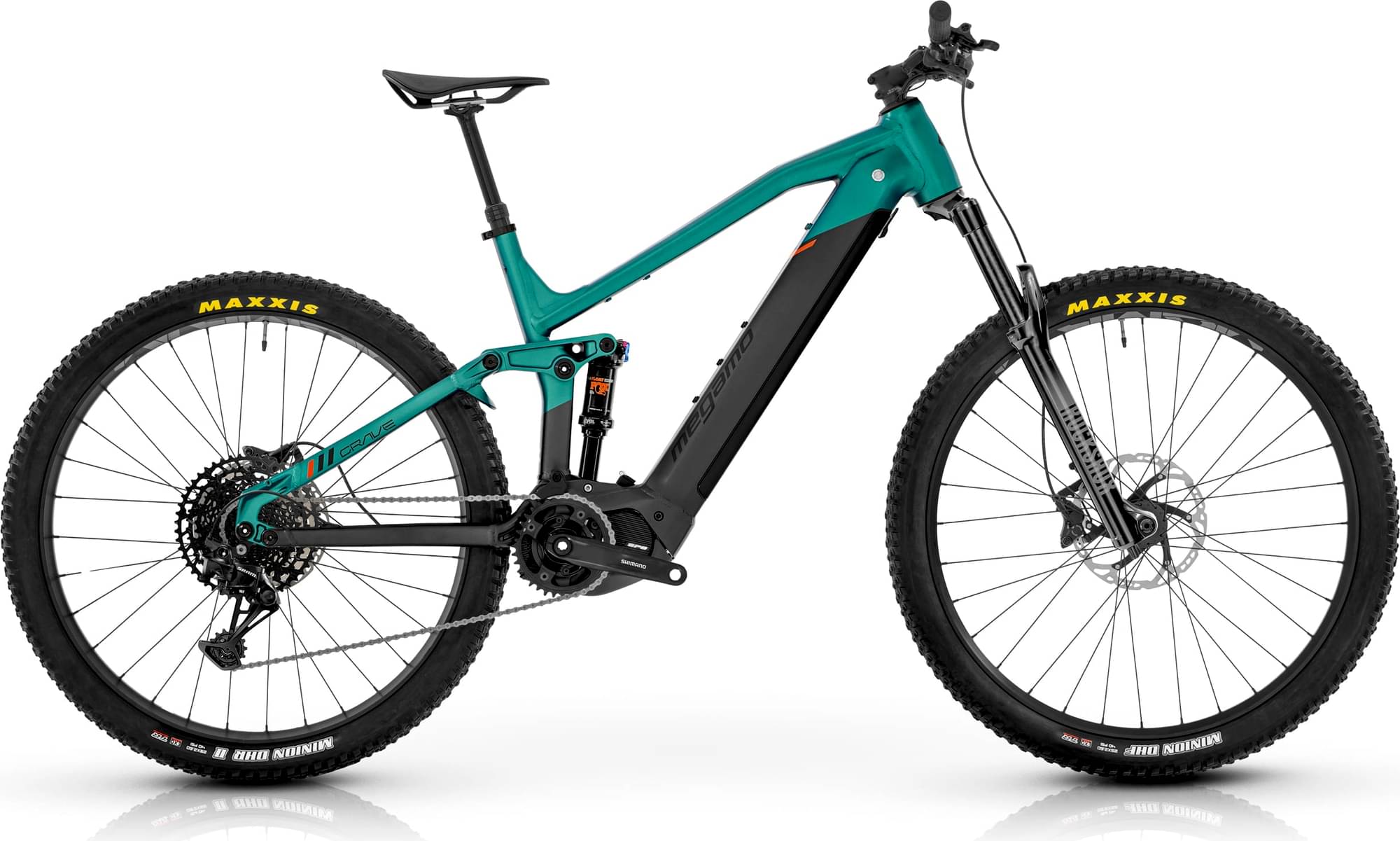

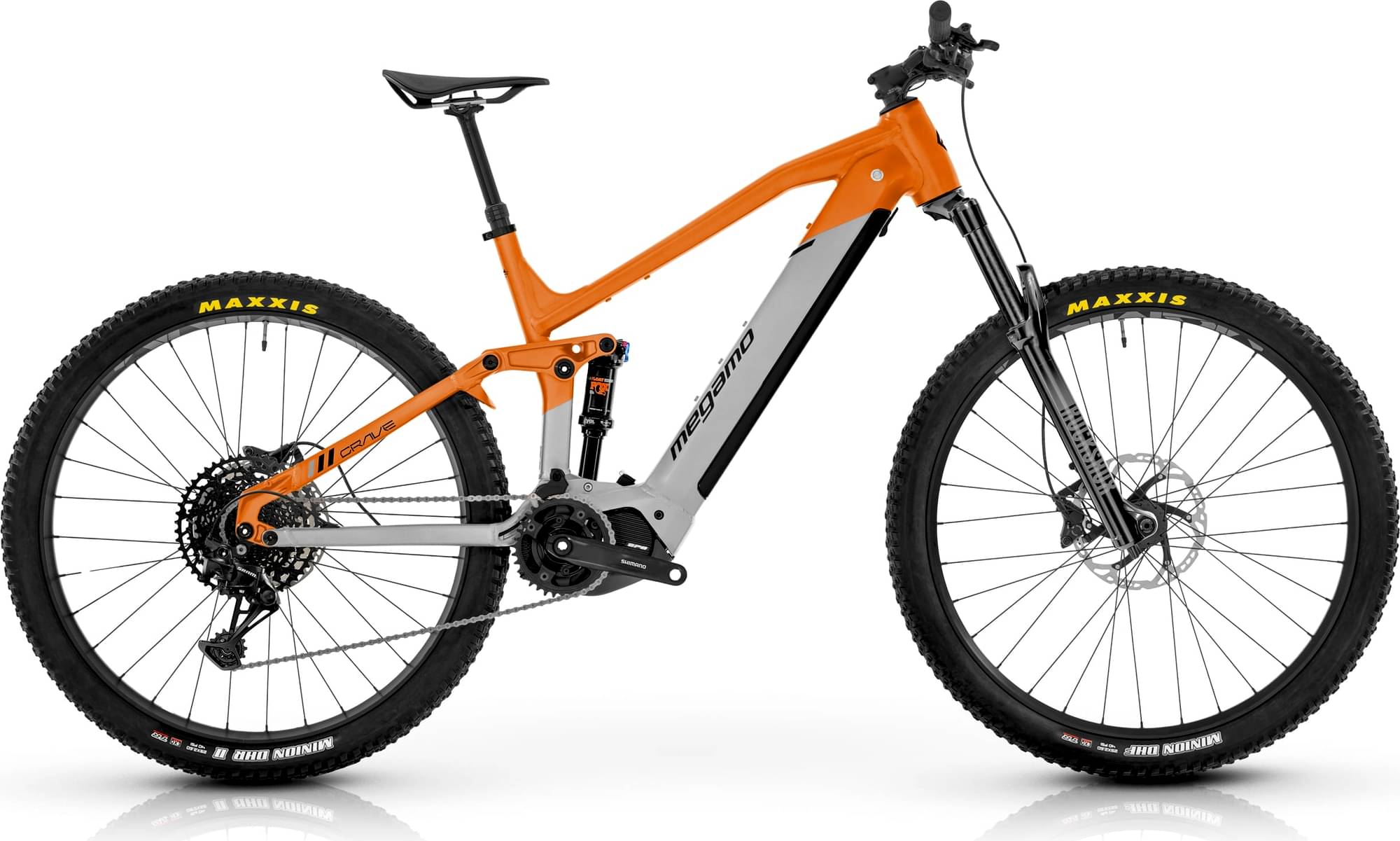

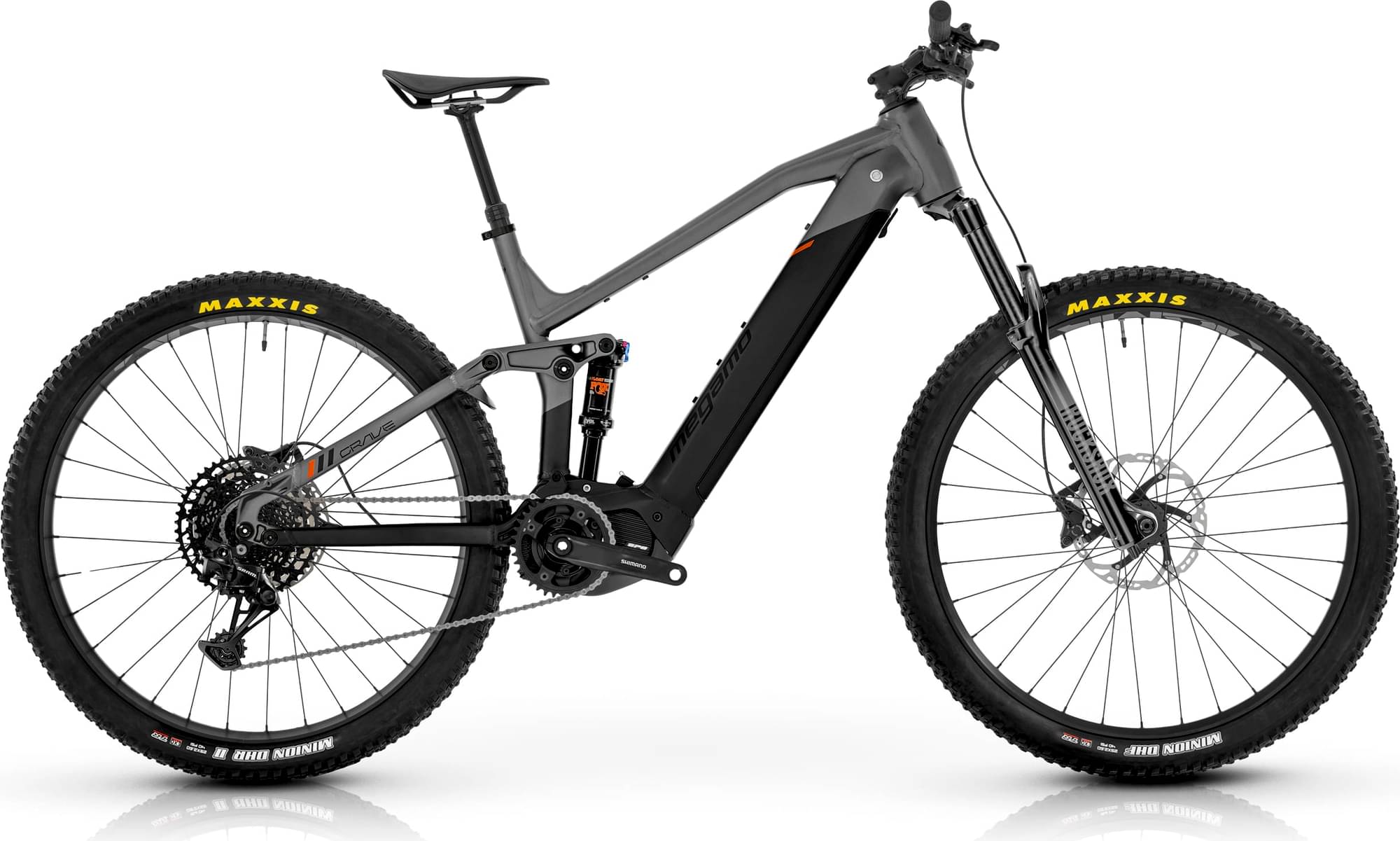

Megamo CRAVE AL 10 LTD 2024
2024 E-bike
Estimate price |
4,652$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Integrated LI-ION Battery, 762 Wh -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Integratted Battery, Alloy Triple Butted, 12x148 Boost, Horst Link 4, Wheel travel: 160 mm, Tire clearance 29 x 2.6
Suspension Fork
Rock Shox 35 Silver R 29" Boost 15x110mm 160mm E-MTB Tapered Steerer
Rear Shock
FOX Float DPS, Performance Series, 3pos, Trunnion, Evol LV, 205x65
Drivetrain
Rear Derailleur
SRAM SX Eagle 12s
Shift Levers
SRAM SX Eagle 12s
Cassette
SRAM SX Eagle 12s
Crank
Shimano 36t
Wheels
Rims
29 Asymmetric 15x110 12x148 Boost Wide:30mm Tubeless Ready
Tires
Front: 29x2,6 Maxxis Minion DHF, Rear: 29x2,6 Maxxis Minion DHR II, Tubeless Ready, EXO Protection / Pirelli Scorpion Eduro S HardWALL
Brakes
Brakes
Shimano MT420 hydraulic disc 4-Piston, 203mm
Cockpit
Stem
3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Handlebar
Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6º
Headset
FSA Orbit 1,5 E ZS 1-1/8” 1,5”
Seat
Saddle
Selle Italia Model X
Motor & Battery
Motor
Shimano EP801 / 85 Nm
Battery
Integrated LI-ION Battery, 762 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
