Bike details
Overview
Key information split into simple groups.

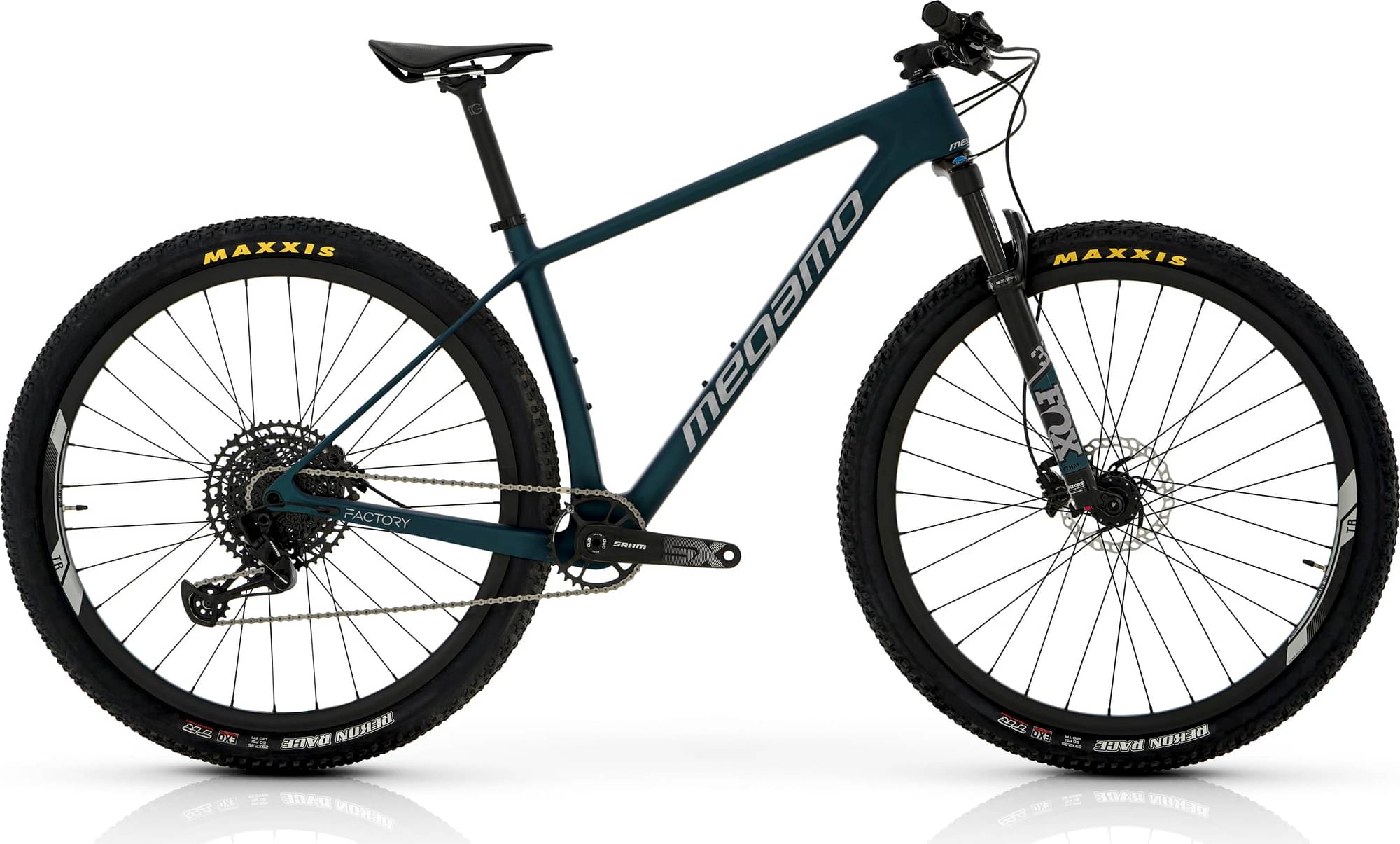

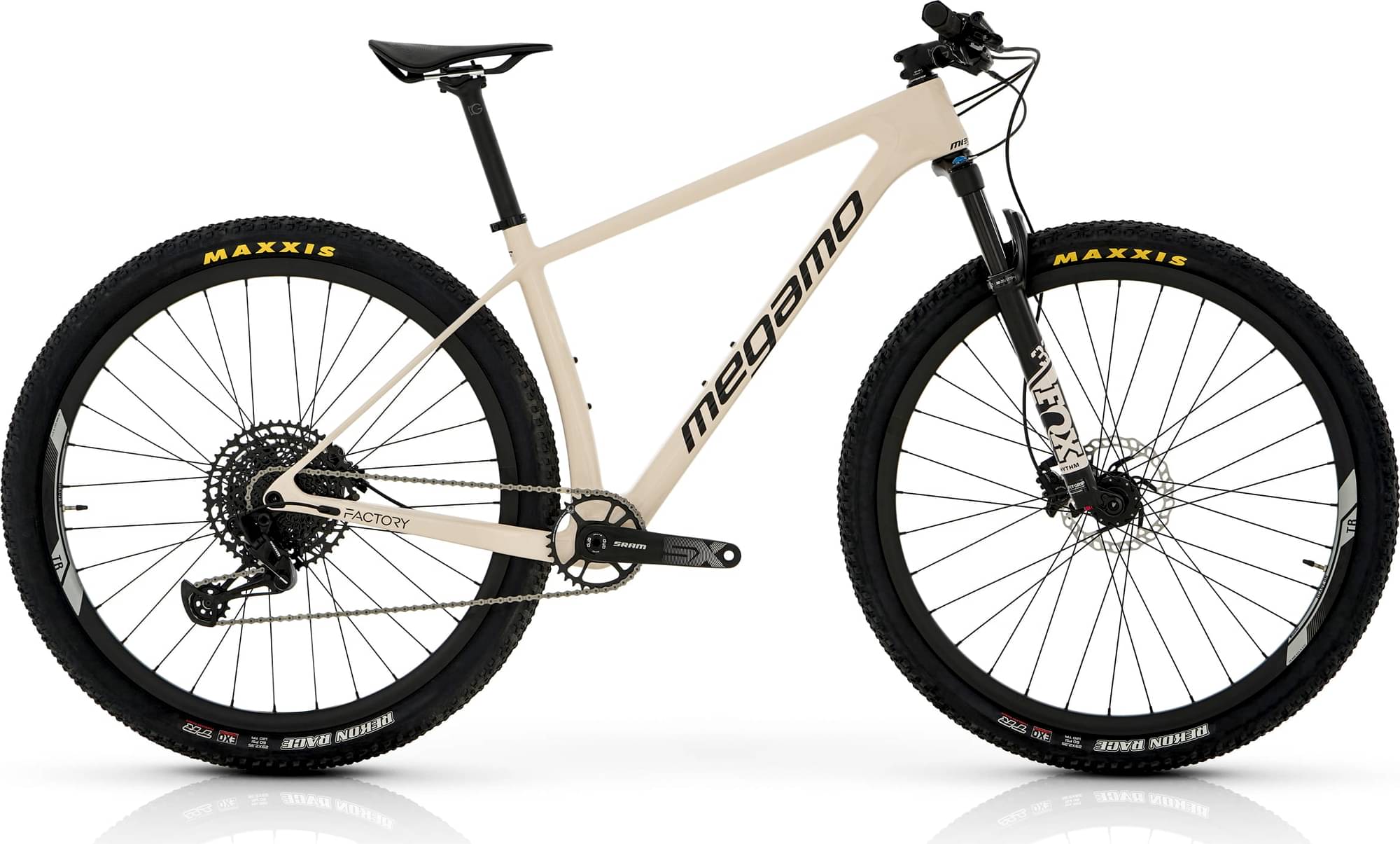

Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox Rhythm Float 32
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29 Factory Carbon Construction FC Technology, Pressfit BB92, Boost 12x148mm
Suspension Fork
Fox 32 Rhythm, Remote Lockout, 15x110 Boost, Travel 100mm
Drivetrain
Rear Derailleur
SRAM SX Eagle 12s
Shift Levers
SRAM SX Eagle 12s
Cassette
SRAM SX Eagle 12s
Crank
SRAM SX Eagle 12s 32t
Bottom Bracket
BB86/BB92, press-fit
Wheels
Rims
Ready GR 25 TR - 15x110 / 12x148 Boost
Tires
Pirelli MTB Scorpion Sport 29 x 2.4
Brakes
Brakes
Shimano MT-201 Hydraulic Disc
Cockpit
Stem
Megamo Elite Stem
Headset
FSA 1-1/8 1-1/2 Tapered
Seat
Saddle
Selle Italia Model X
Seatpost
Megamo Elite 30,9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.473 mm | 1.399 mm | 1.367 mm | 1.325 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 667 mm | 692 mm | 718 mm | 744 mm |
| Rake | 55 mm | 55 mm | 55 mm | 56 mm |
| Trail | 81 mm | 81 mm | 81 mm | 80 mm |
| Stack | 595 mm | 600 mm | 614 mm | 624 mm |
| Reach | 404 mm | 429 mm | 449 mm | 471 mm |
| Top Tube Length | 575 mm | 600 mm | 625 mm | 650 |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 125 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1085 mm | 1111 mm | 1137 mm | 1163 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
