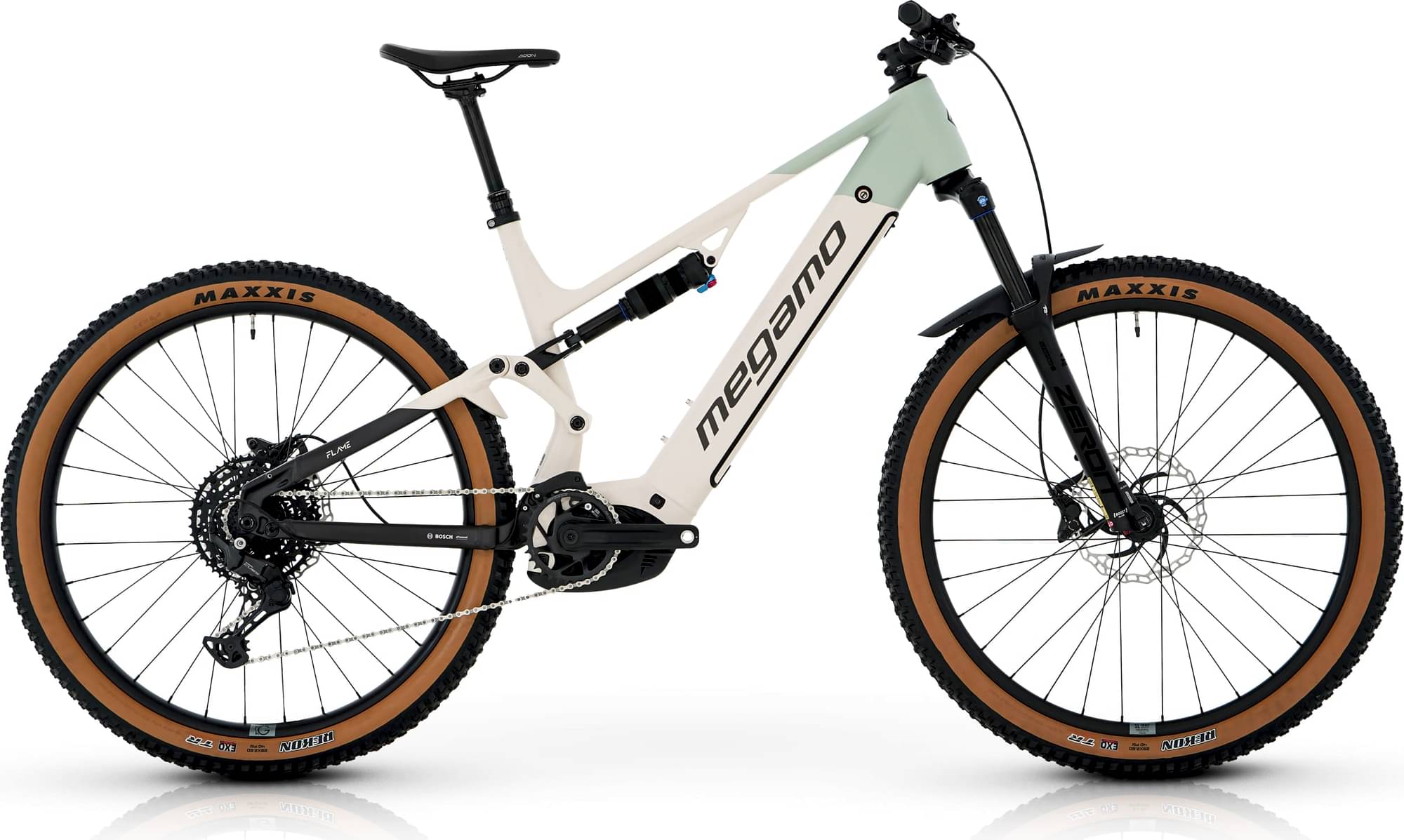

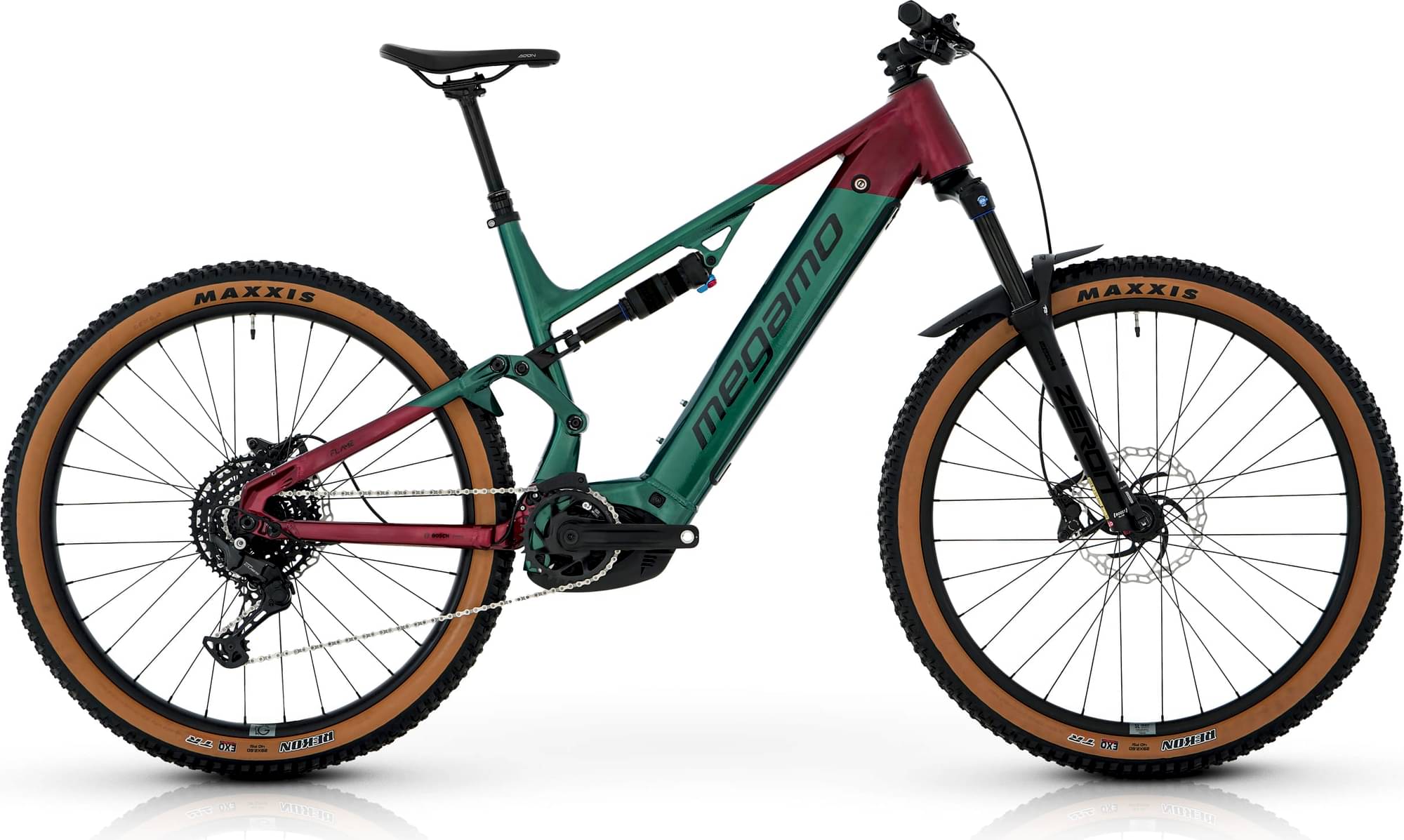

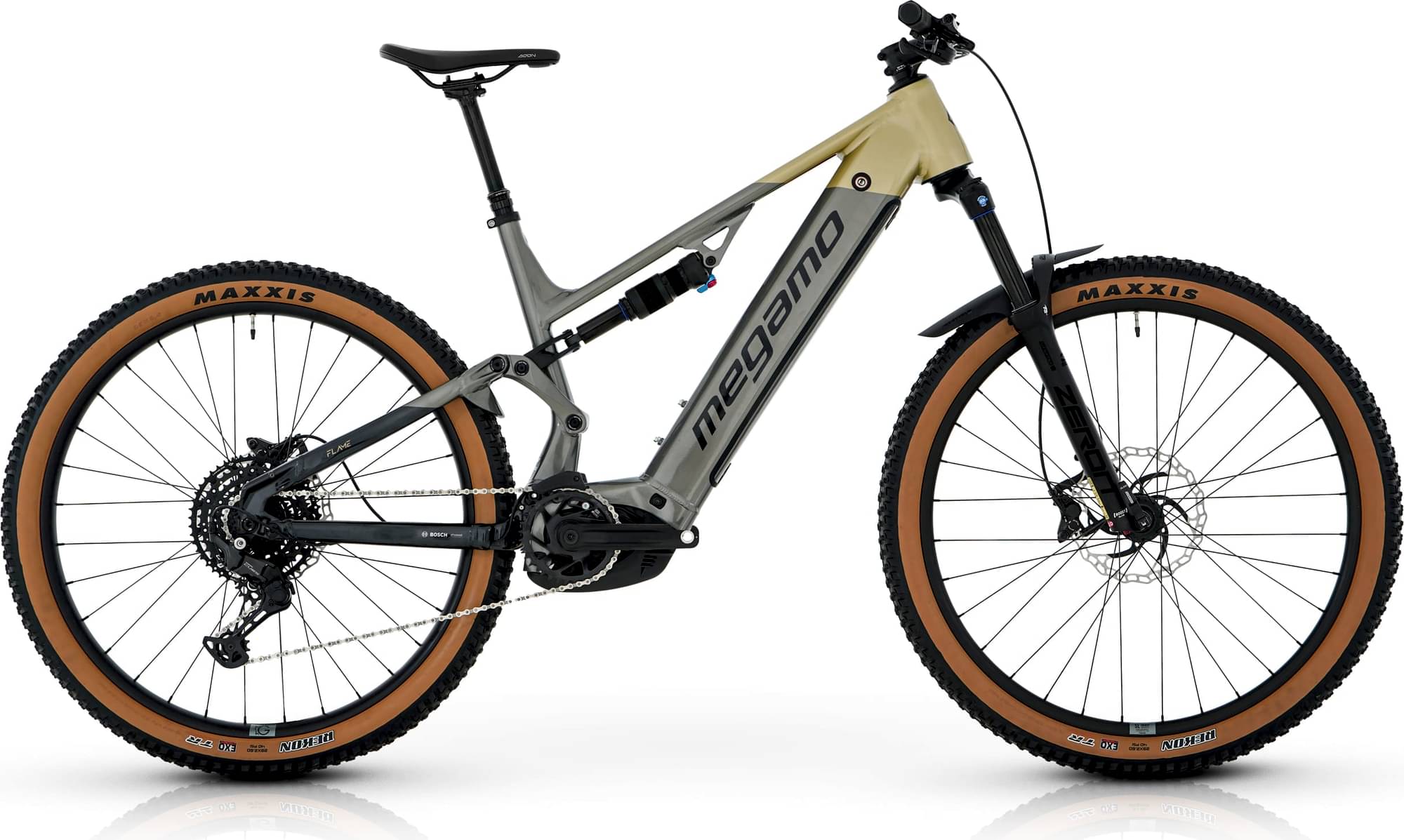

Megamo FLAME AL 20+ 2025
2025 E-bike
Estimate price |
5,583$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 160mm -
Fork Suntour Zeron
-
Groupset CUES -
Suspension Full -
Motor Bosch 750W 100Nm mid-drive -
Battery Bosch PowerTube 800 -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components

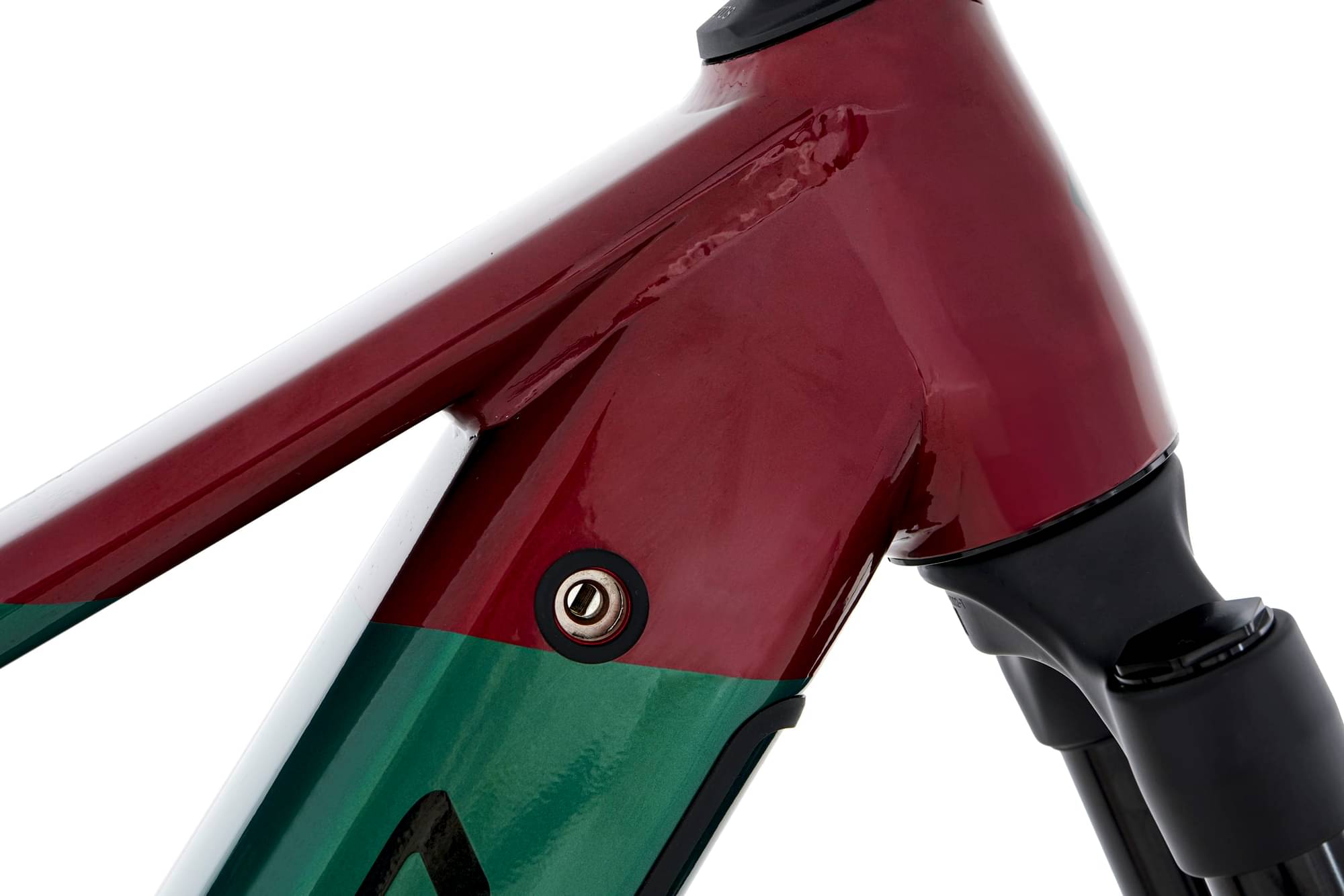

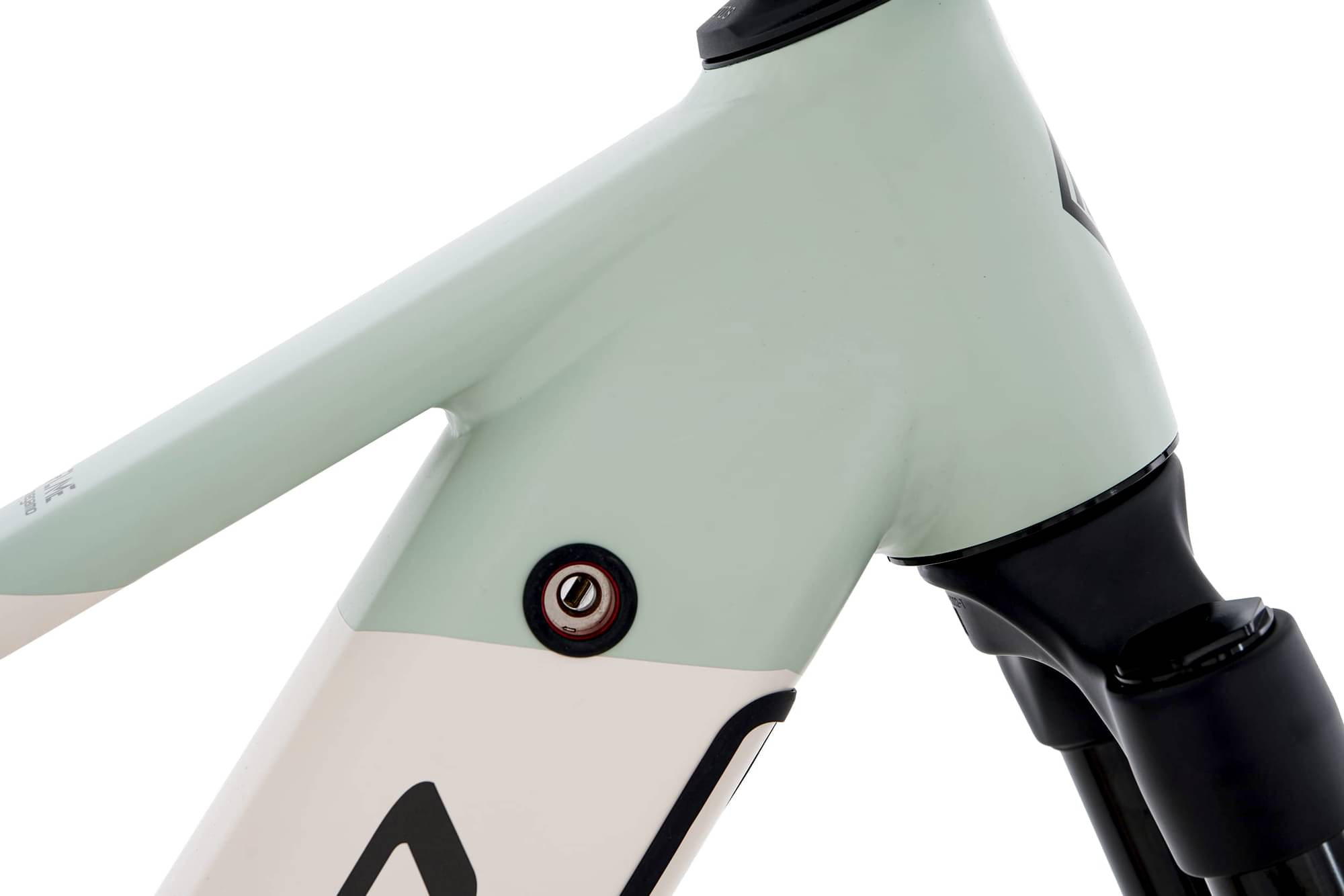

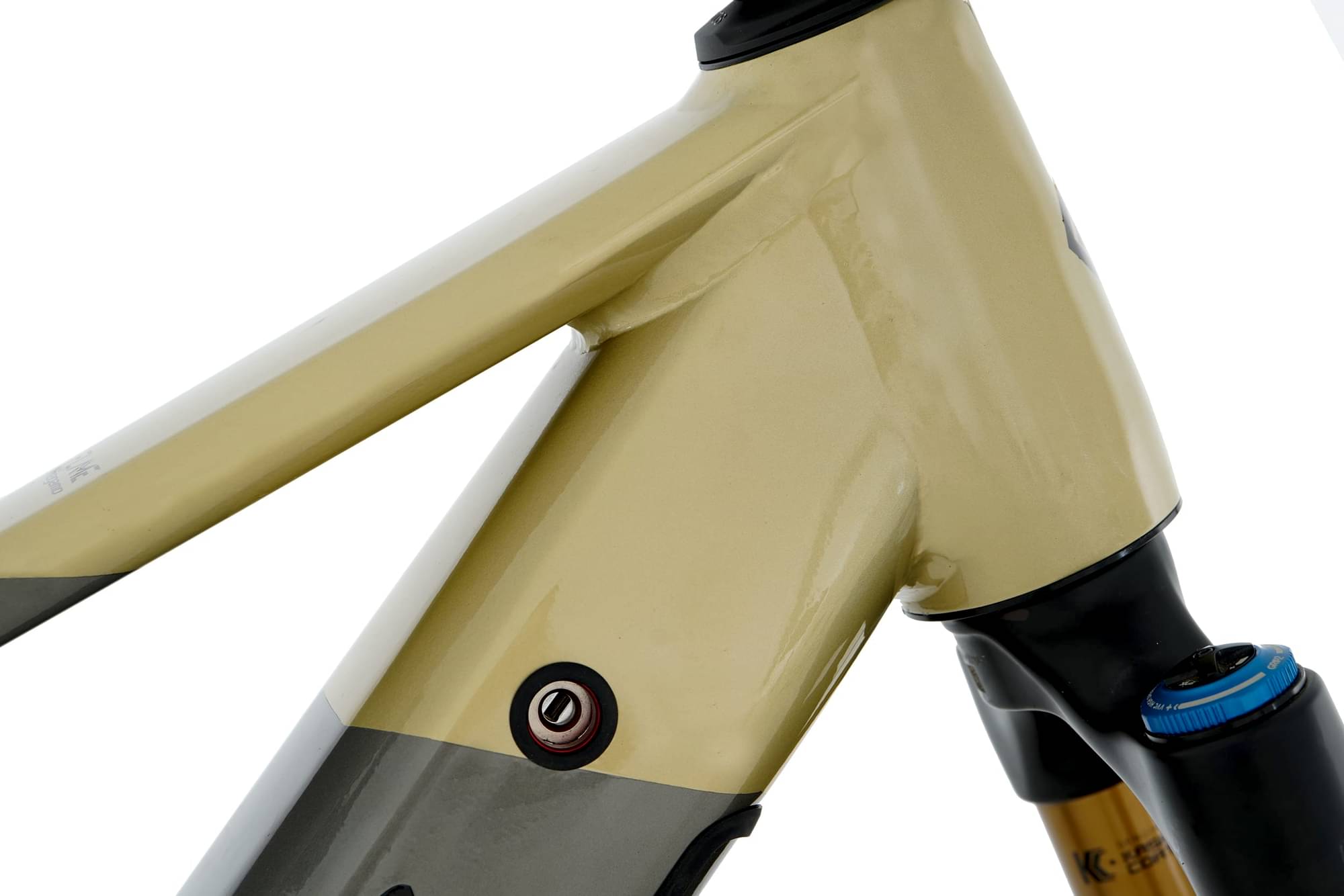

Frame
Frame
Full Integratted Battery, Aluminium 6061, 12x148 Boost, Horst Link 4, Wheel travel: 160 mm
Suspension Fork
SUNTOUR Zeron 36X, 150mm Travel, Boost, Air
Rear Shock
SUNTOUR RS25 Edge Evo 2CR, 230x57,5mm, Metric, LVN
Drivetrain
Rear Derailleur
Shimano CUES TD-U6000-GS, ShadowPlus 10-Speed
Shift Levers
Shimano CUES 6000 Speed Rapidfire Plus 10-Speed
Cassette
Shimano CUES 300 11-48T
Crank
FSA Bosch Direct Mount Chainring 34t CL55 12-Speed, Crankset 320 165mm
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
Megamo Hubs, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST EBIKE+
Rear Hub
Megamo Hubs, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST EBIKE+
Rims
Megamo 29 SL 30 ASY - HG, 30 mm Tubeless ready Aluminium rim
Tires
MAXXIS 29 x 2.6 Rekon
Brakes
Brakes
Shimano MT420 hydraulic disc 4-Piston, 203mm
Cockpit
Stem
Megamo 3D Forged Alloy, ±7º Rise, S size 60 mm / M size 60 mm / L size 70 mm
Handlebar
Megamo Alloy Butted 31,8 x 780 mm, 12 mm Rise, 6º Back Sweep
Headset
Acros AZX-589 ZS56 blocklock 150º
Seat
Saddle
Fizik Terra Aidon X5
Seatpost
Megamo Ø 31,6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 170 mm Drop
Motor & Battery
Motor
Bosch Performance Line CX, 5gen BDU384Y, Smart System / 100Nm 750W
Battery
Bosch PowerTube 800
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.425 mm | 1.389 mm | 1.337 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm |
| Front Center | 760 mm | 782 mm | 821 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 126 mm | 126 mm | 126 mm |
| Stack | 620 mm | 629 mm | 647 mm |
| Reach | 435 mm | 453 mm | 484 mm |
| Top Tube Length | 590 mm | 610 mm | 645 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 410 mm | 435 mm | 470 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1219 mm | 1241 mm | 1280 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm |
| Standover Height | 783 mm | 783 mm | 783 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
