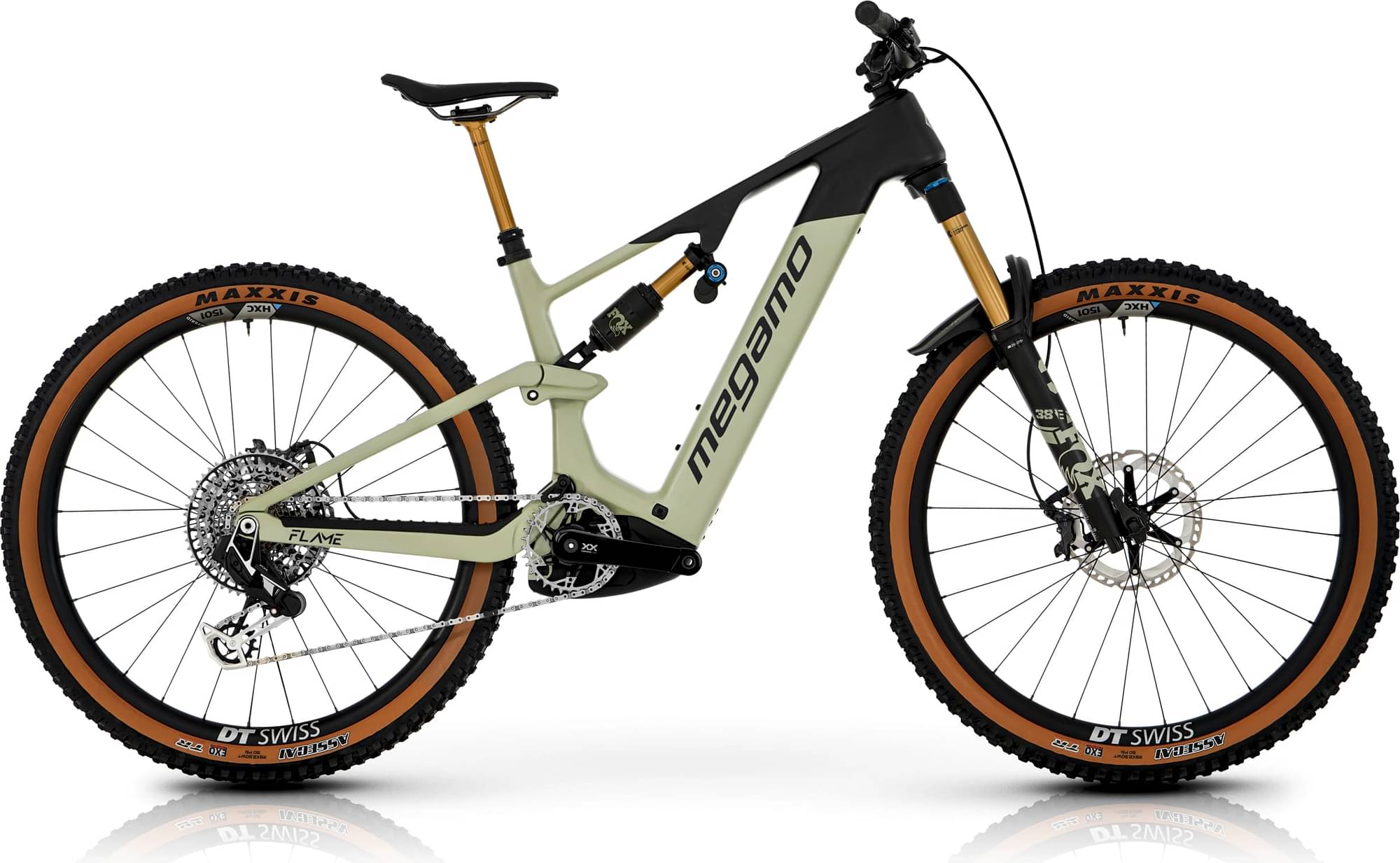

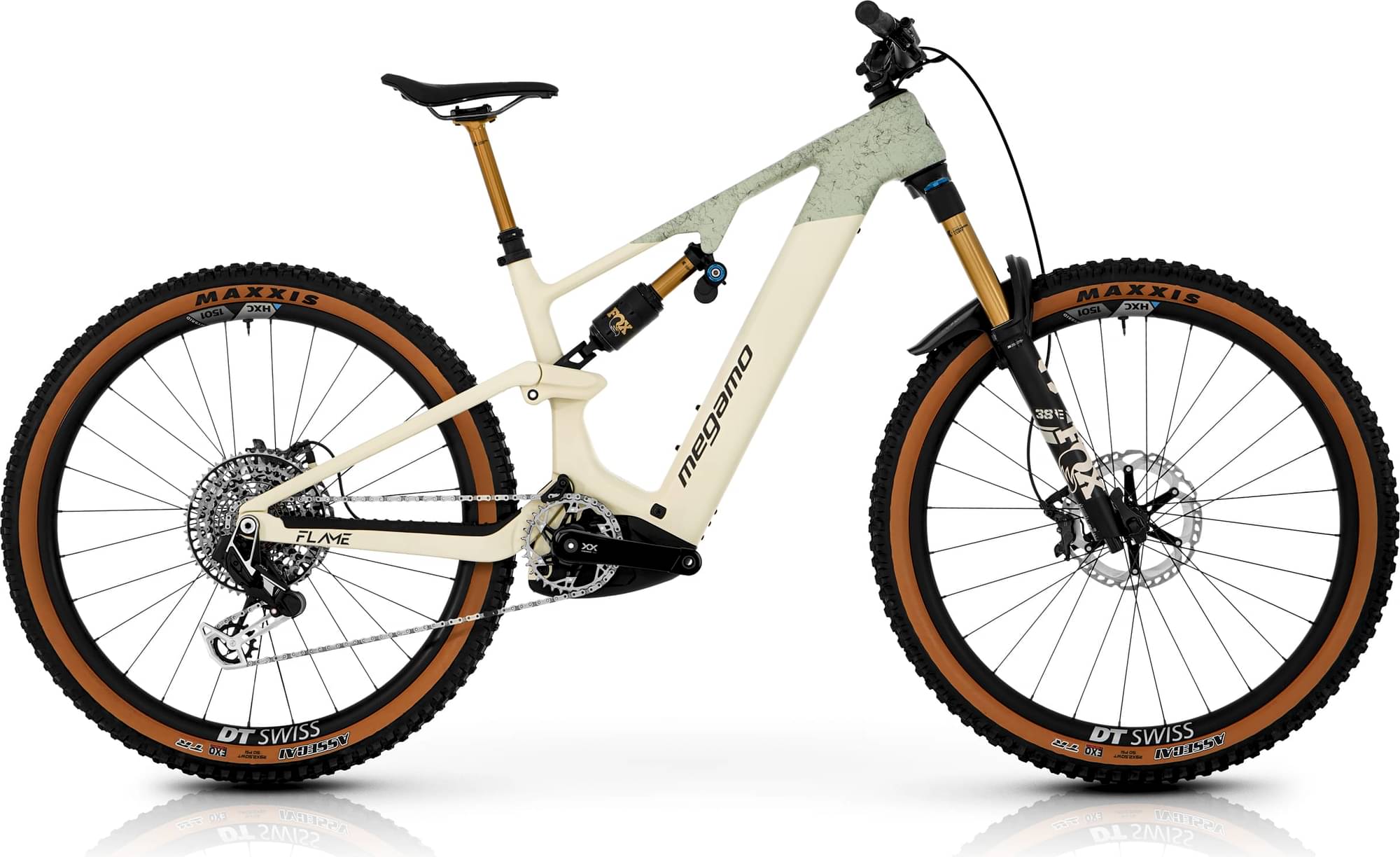

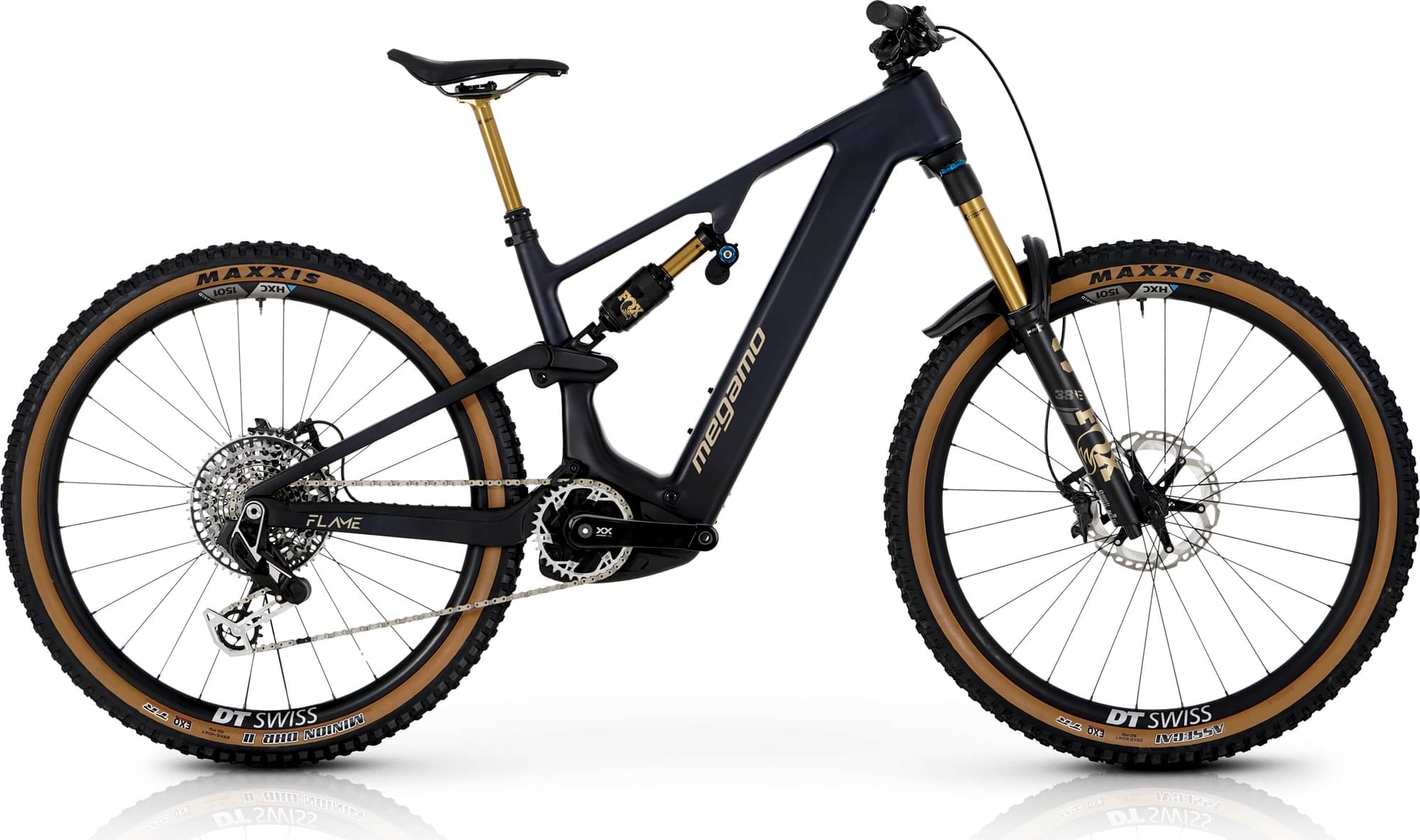

Megamo FLAME CRB 01 2026
2026 E-bike
Estimate price |
13,959$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Float 38
-
Groupset XX Eagle Transmission, Eagle AXS -
Suspension Full -
Motor Bosch 750W 100Nm mid-drive -
Battery Bosch PowerTube 800 -
Drivetrain 1 × 12 Electronic -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

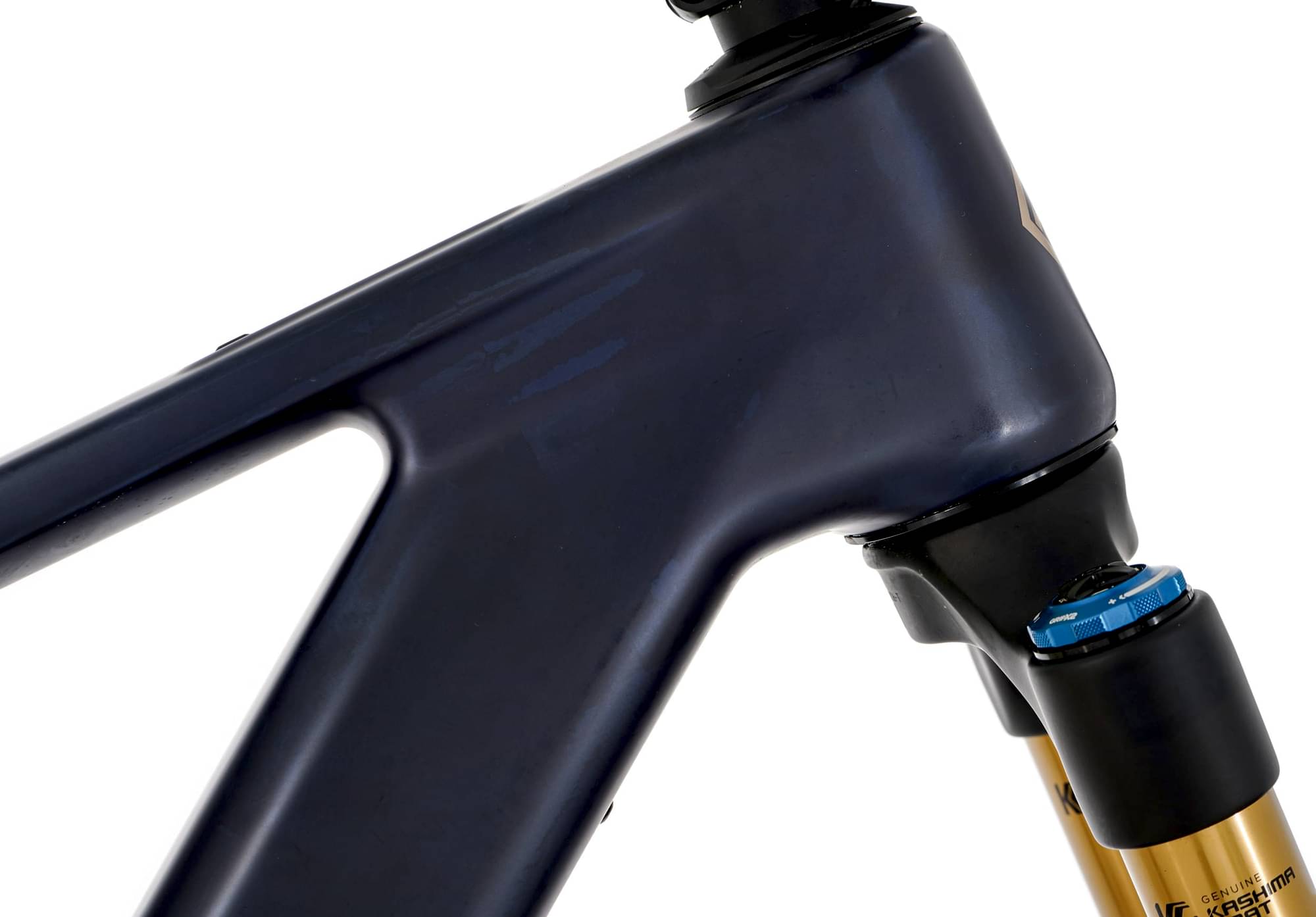

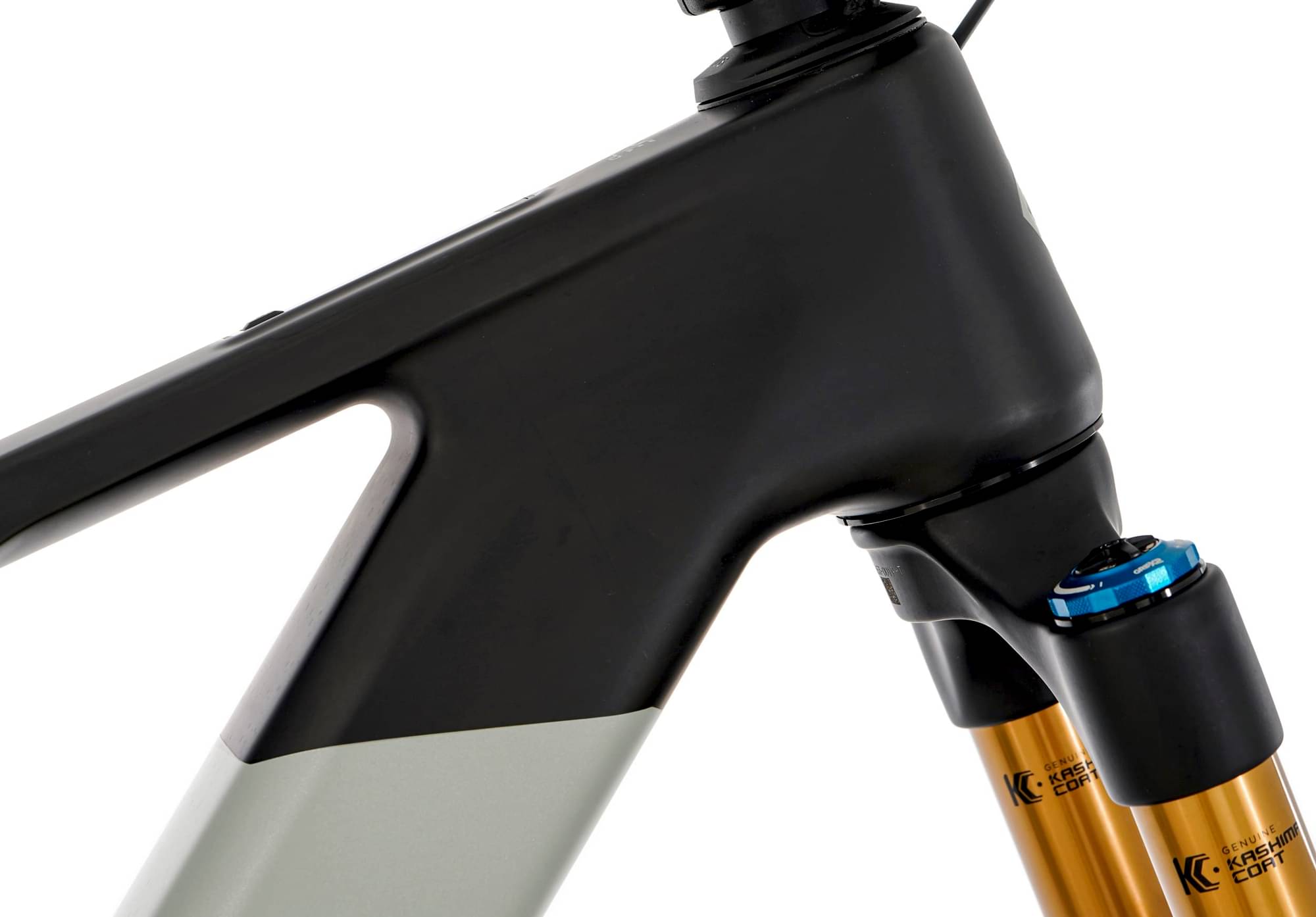

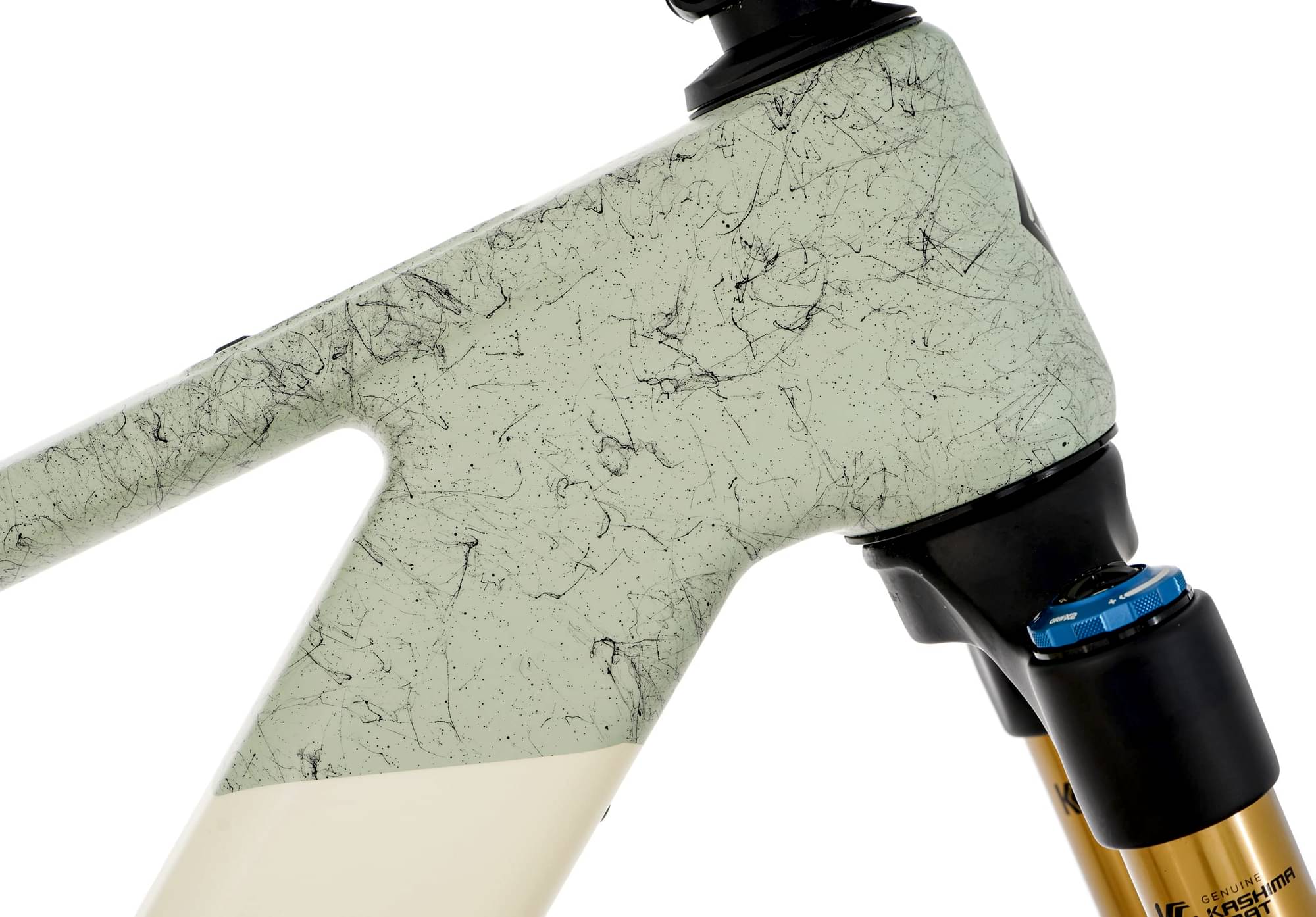

Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 170/160 mm
Suspension Fork
Fox 38 Kashima, Float, 29in, 170mm, Grip X2, HSC, LSC, HSR, LSR, 15QRx110, 1.5 T, 68HT, 44mm Rake
Rear Shock
Fox Float X2 Factory, 230x60mm, Evol Transverse Reservoir + 2 Position
Drivetrain
Rear Derailleur
SRAM XX Eagle AXS T-Type 12s
Shift Levers
SRAM AXS POD Ultimate
Cassette
SRAM XX Eagle T-type 10-52T
Crank
SRAM XX EAGLE Crankset 165mm
Wheels
Rims
DT Swiss 1501 HXC 30 - XD Carbon, Tubeless ready
Tires
Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II
Brakes
Brakes
Shimano XT BR-M8220, hydraulic disc 4-Piston, 203/203mm
Cockpit
Stem
Satori New Ursa 35mm
Handlebar
Carbon Race Face ERA 35x800, Rise 20mm
Headset
Acros AZX-286R1 ZS56 blocklock 150º
Seat
Saddle
Selle San Marco Ground Short Open-fit Titanium
Seatpost
Fox Transfer Kashima 31,6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 175 mm Drop
Motor & Battery
Motor
Bosch Performance Line CX-R / 100Nm 750W
Battery
Bosch PowerTube 800
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.459 mm | 1.398 mm | 1.348 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm |
| Front Center | 761 mm | 790 mm | 830 mm |
| Rake | 51 mm | 51 mm | 52 mm |
| Trail | 121 mm | 121 mm | 120 mm |
| Stack | 620 mm | 629 mm | 647 mm |
| Reach | 425 mm | 450 mm | 480 mm |
| Top Tube Length | 574 mm | 601 mm | 636 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 460 mm |
| Head Tube Angle | 64.6 ° | 64.6 ° | 64.6 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1209 mm | 1238 mm | 1278 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
