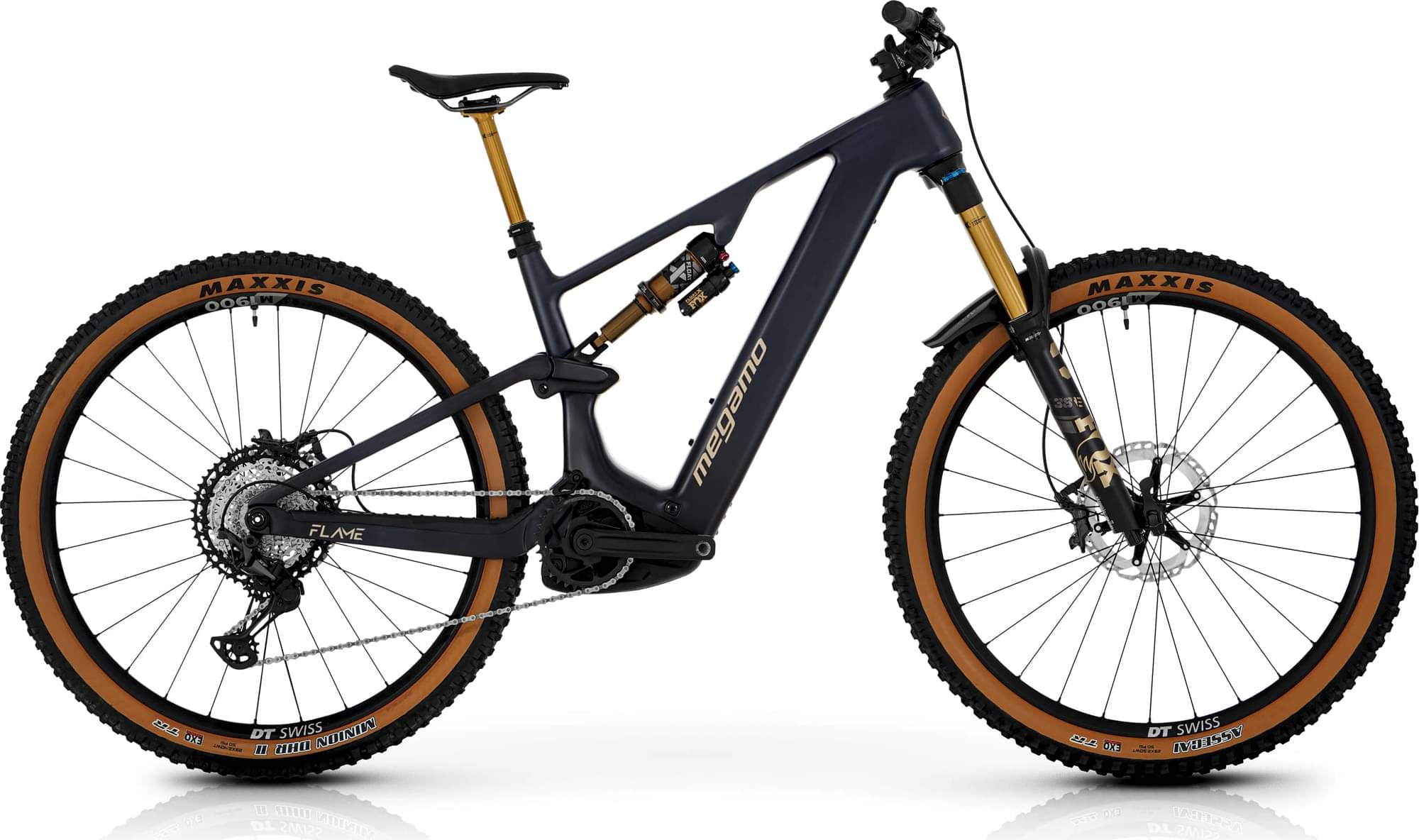

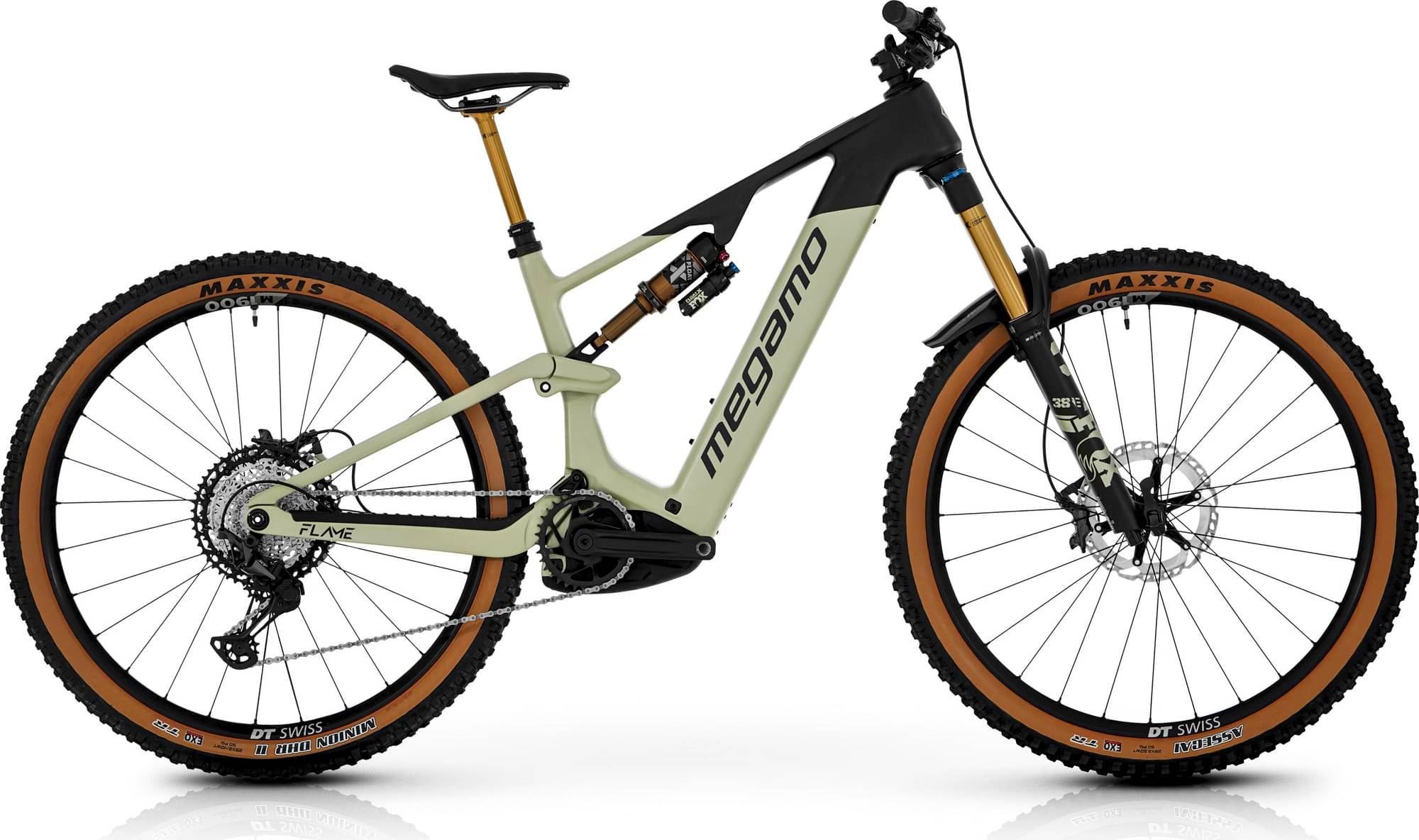

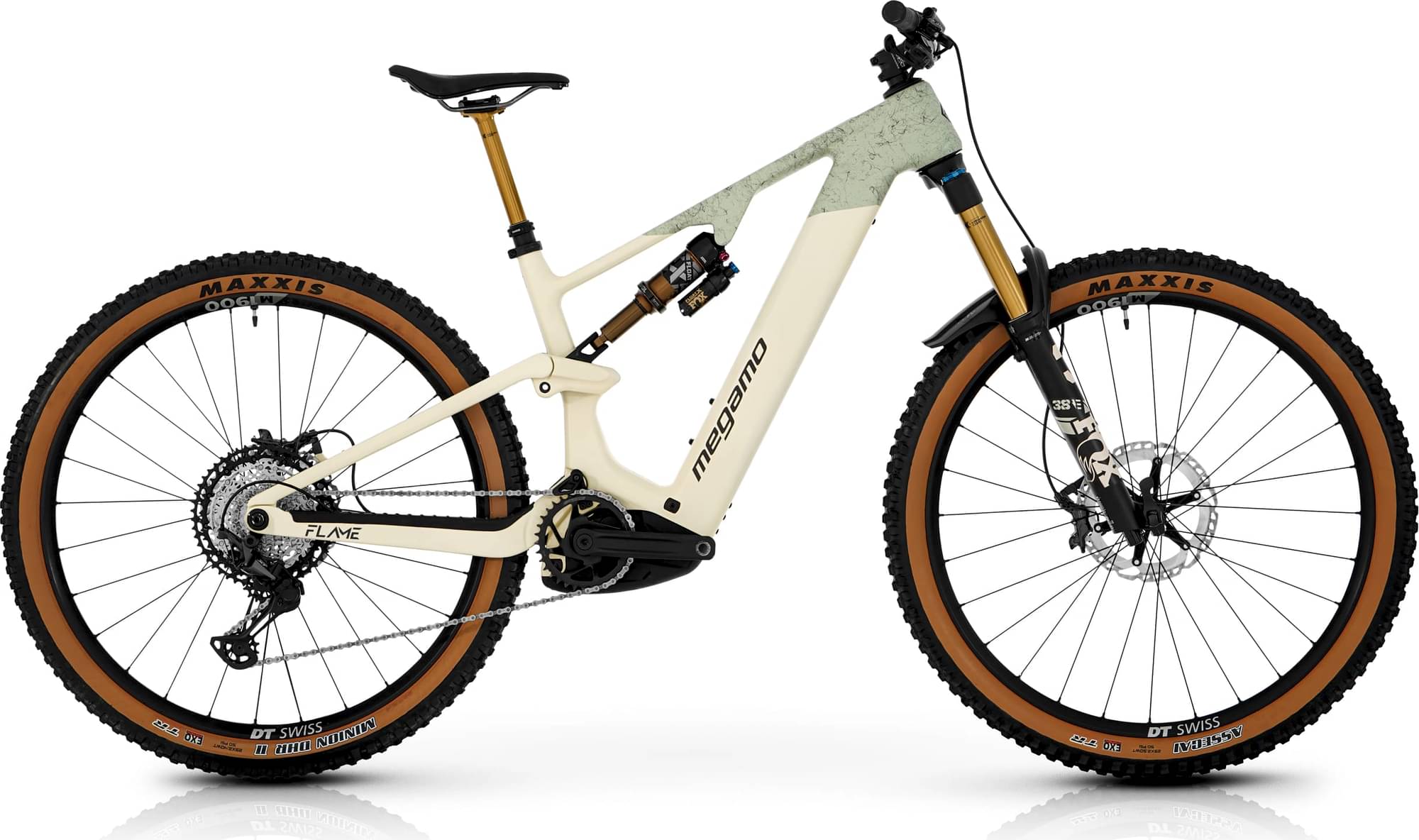

Megamo FLAME CRB 03 2026
2026 E-bike
Estimate price |
9,306$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Float 38
-
Groupset XT -
Suspension Full -
Motor Bosch 750W 100Nm mid-drive -
Battery Bosch PowerTube 800 -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

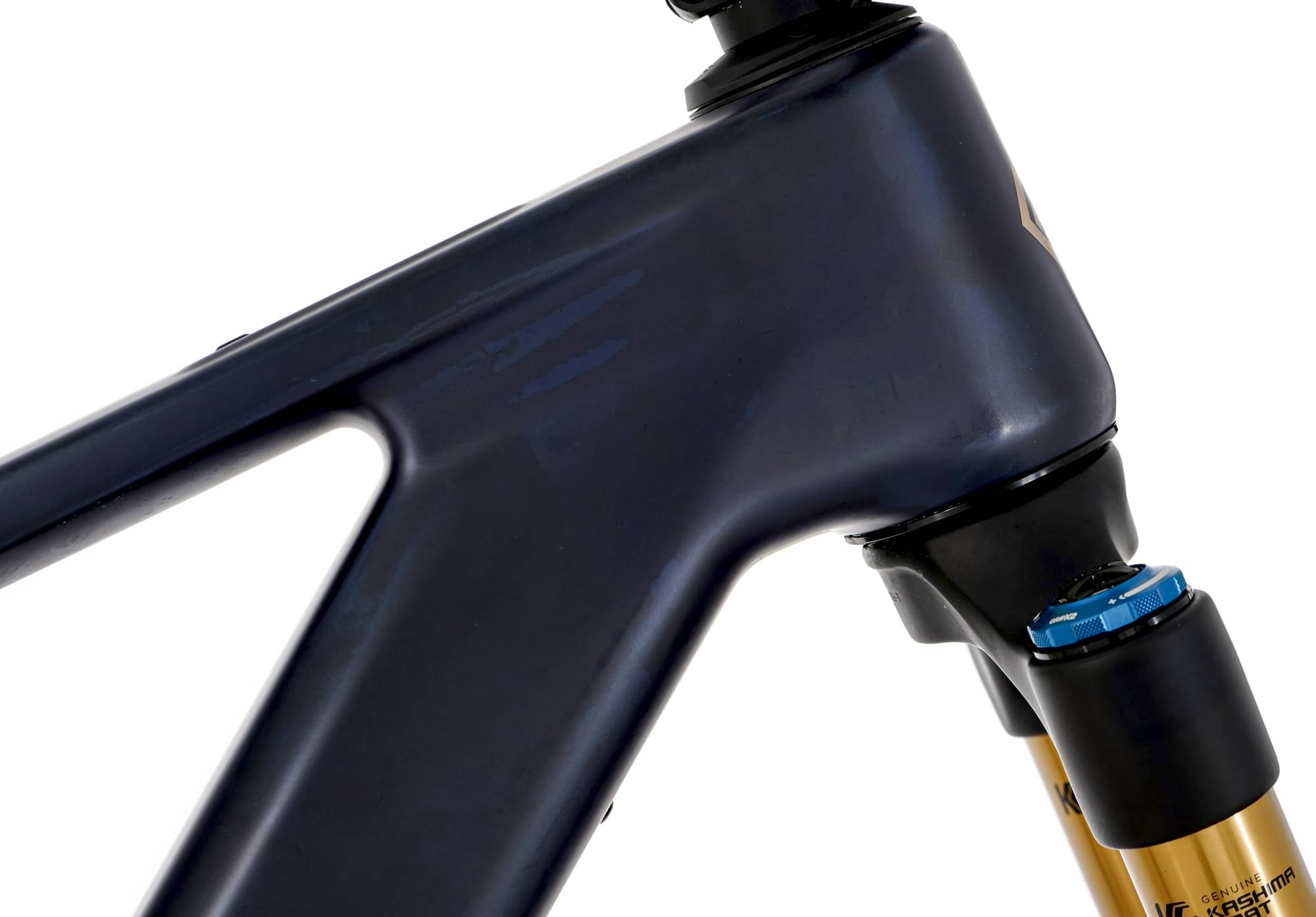

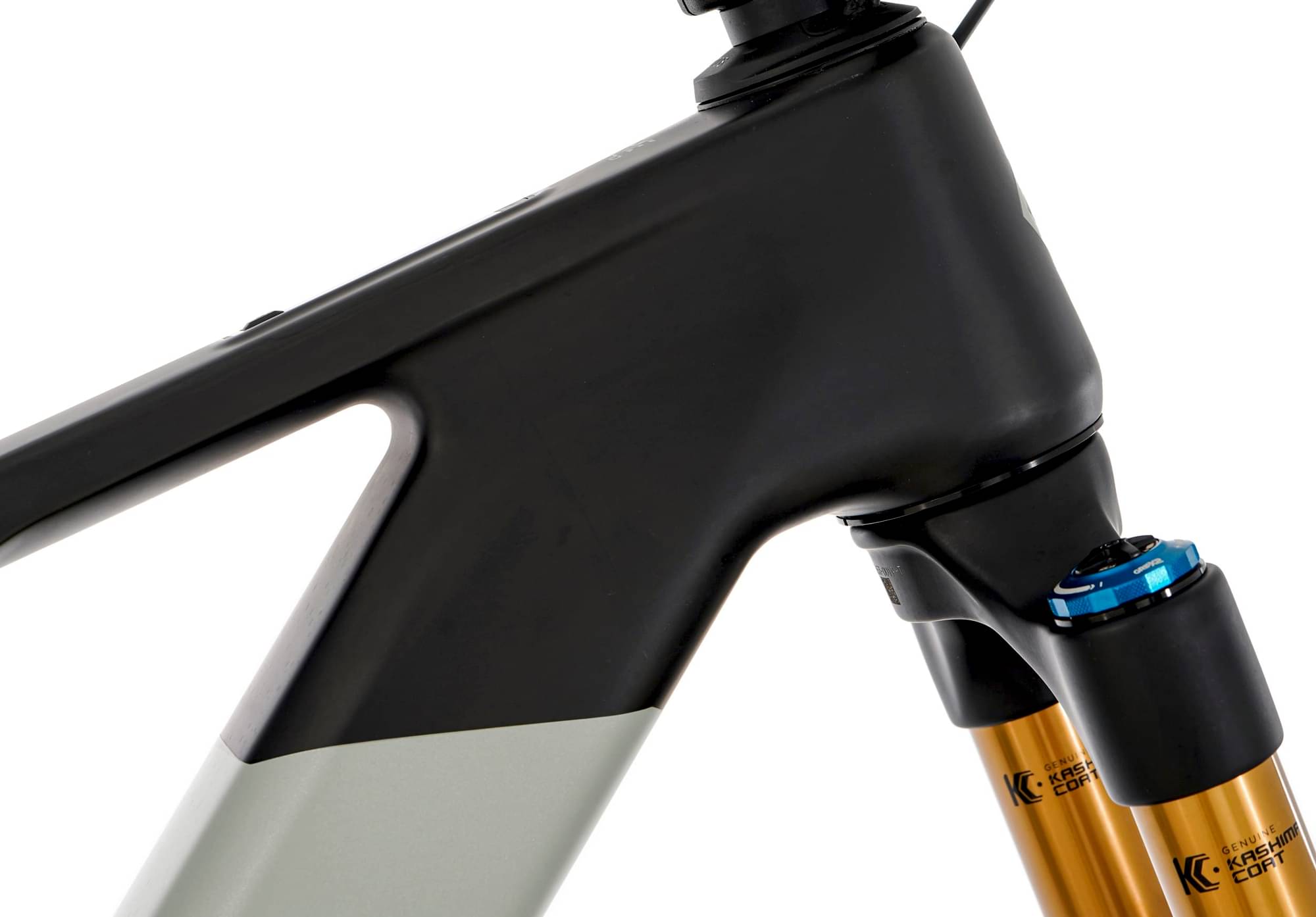

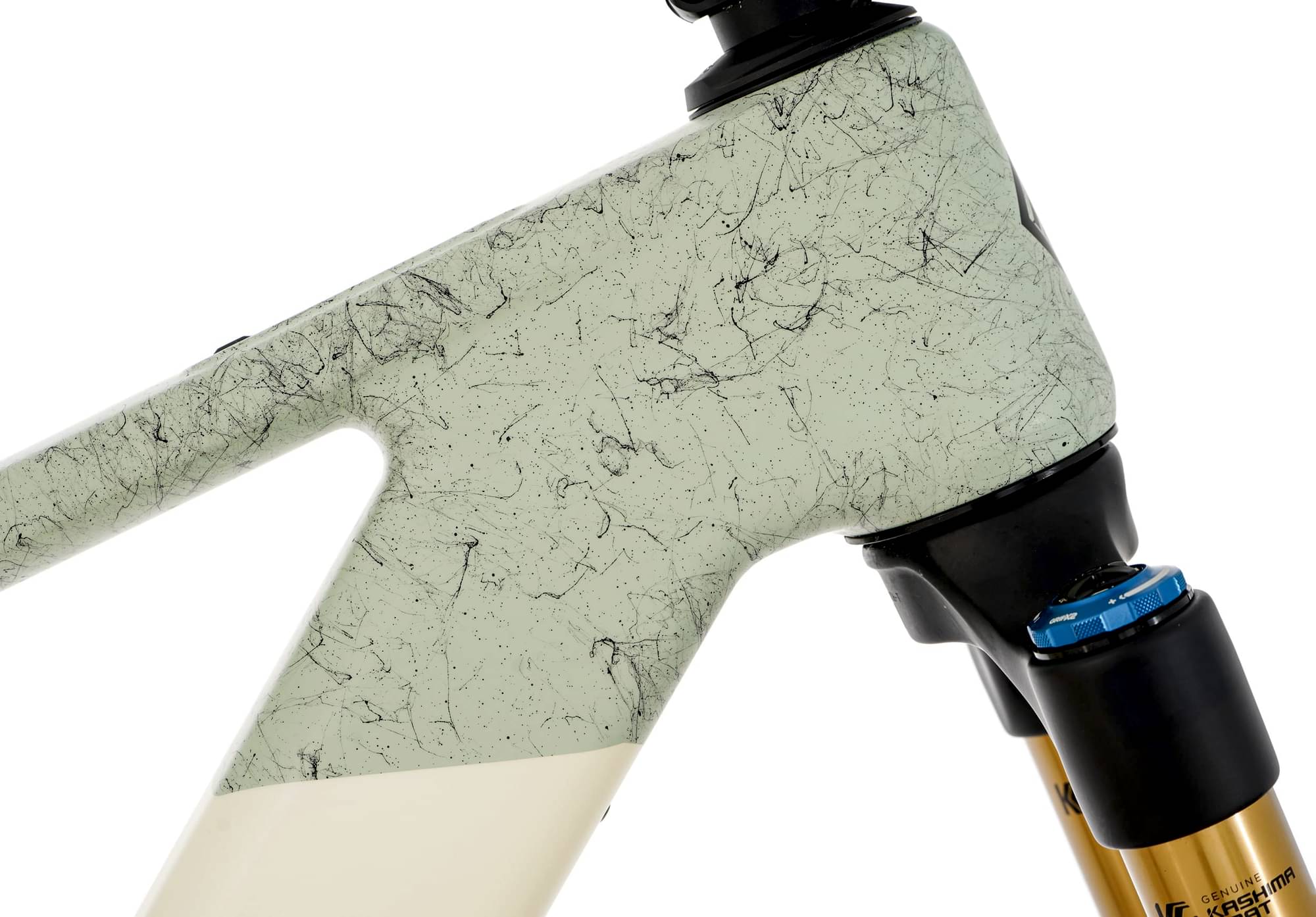

Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 170/160 mm
Suspension Fork
Fox 38 Kashima, Float, 29in, 170mm, Grip X2, HSC, LSC, HSR, LSR, 15QRx110, 1.5 T, 68HT, 44mm Rake
Rear Shock
Fox Float X, Factory-Series, Kashima, 2pos-Adj, Evol LV, 230x60
Drivetrain
Rear Derailleur
Shimano XT M8100, Shadow Plus 12-Speed
Shift Levers
Shimano XT M8100, 12-Speed
Cassette
Shimano XT M8100 10-51T
Crank
FSA Bosch Direct Mount Chainring 34t CL55 12-Speed, Crankset 320 165mm
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
DT Swiss 370 Ratchet LN 18, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST
Rear Hub
DT Swiss 370 Ratchet LN 18, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST
Rims
DT Swiss M 1900 SP, 30mm Tubeless ready Aluminium rim
Tires
Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II
Brakes
Brakes
Shimano XT BR-M8220, hydraulic disc 4-Piston, 203/203mm
Cockpit
Stem
Satori New Ursa 35mm
Handlebar
Carbon Race Face ERA 35x800, Rise 20mm
Headset
Acros AZX-286R1 ZS56 blocklock 150º
Seat
Saddle
Selle San Marco Ground Short Open-fit Titanium
Seatpost
Fox Transfer Kashima 31,6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 175 mm Drop
Motor & Battery
Motor
Bosch Performance Line CX, 5gen BDU384Y, Smart System / 100Nm 750W
Battery
Bosch PowerTube 800
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.459 mm | 1.398 mm | 1.348 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm |
| Front Center | 761 mm | 790 mm | 830 mm |
| Rake | 51 mm | 51 mm | 52 mm |
| Trail | 121 mm | 121 mm | 120 mm |
| Stack | 620 mm | 629 mm | 647 mm |
| Reach | 425 mm | 450 mm | 480 mm |
| Top Tube Length | 574 mm | 601 mm | 636 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 460 mm |
| Head Tube Angle | 64.6 ° | 64.6 ° | 64.6 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1209 mm | 1238 mm | 1278 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
