Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

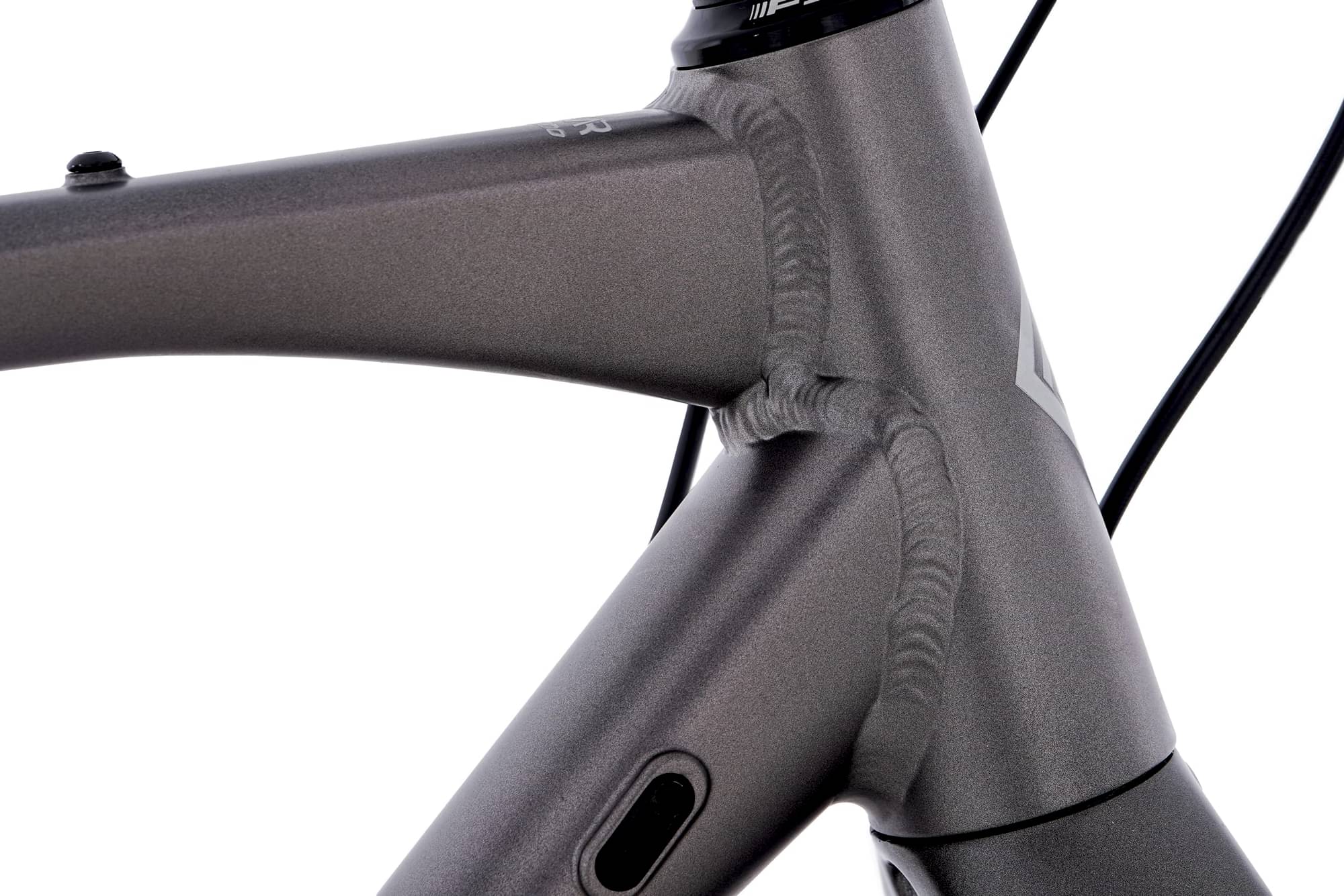

Frame
Frame
Gravel AL 6061 Triple Butted, Hydroformed Technology, Internal Cable Routing, Flat Mount Disc 12x142
Suspension Fork
Carbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12 x 100 mm
Drivetrain
Rear Derailleur
Shimano CUES TD-U6000-GS, ShadowPlus 10/11-Speed
Shift Levers
Shimano CUES U6000 Rapidfire Plus 10-Speed
Cassette
Shimano CUES LG300, 11-48T
Crank
Shimano CUES Chainring 40T 9/10/11-Speed, Crankset XS/S size170 mm, Crankset M/L/XL size 175 mm
Wheels
Front Hub
Megamo hubs, Front axle 12 x 100 mm, Rear axle 12 x 142 mm
Rear Hub
Megamo hubs, Front axle 12 x 100 mm, Rear axle 12 x 142 mm
Rims
Megamo 29 SL 25 ASY - Gravel, 25 mm Tubeless ready Aluminium rim
Tires
WTB Riddler 700 x 45c Tan Sidewall
Brakes
Brakes
Shimano MT200 + UR300 Flat Mount, Hydraulic disc, 160/160 mm
Cockpit
Stem
Megamo 3D Forged Alloy 31,8, ±15º Rise, XS size 60 mm / S size 70 mm / M size 80 mm / L size 90 mm / XL size 100 mm
Handlebar
Megamo Alloy Flat Bar 31,8 x 680 mm, 9º Back Sweep
Headset
FSA Orbit ZS, 1-1/8" - 1.5''
Seat
Saddle
Megamo Confort+
Seatpost
Megamo Ø 27,2 mm, XS size 300 mm / S/M size 350 mm / L/XL size 400 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.524 mm | 1.536 mm | 1.516 mm | 1.531 mm | 1.553 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 572 mm | 584 mm | 606 mm | 631 mm | 657 mm |
| Rake | 50 mm | 49 mm | 51 mm | 49 mm | 50 mm |
| Trail | 74 mm | 72 mm | 66 mm | 68 mm | 67 mm |
| Stack | 529 mm | 550 mm | 570 mm | 600 mm | 632 mm |
| Reach | 347 mm | 358 mm | 376 mm | 392 mm | 407 mm |
| Top Tube Length | 494 mm | 515 mm | 545 mm | 575 mm | 600 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 415 mm | 500 mm | 530 mm | 570 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 105 mm | 125 mm | 145 mm | 175 mm | 210 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 992 mm | 1004 mm | 1026 mm | 1051 mm | 1078 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
