Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Shimano -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

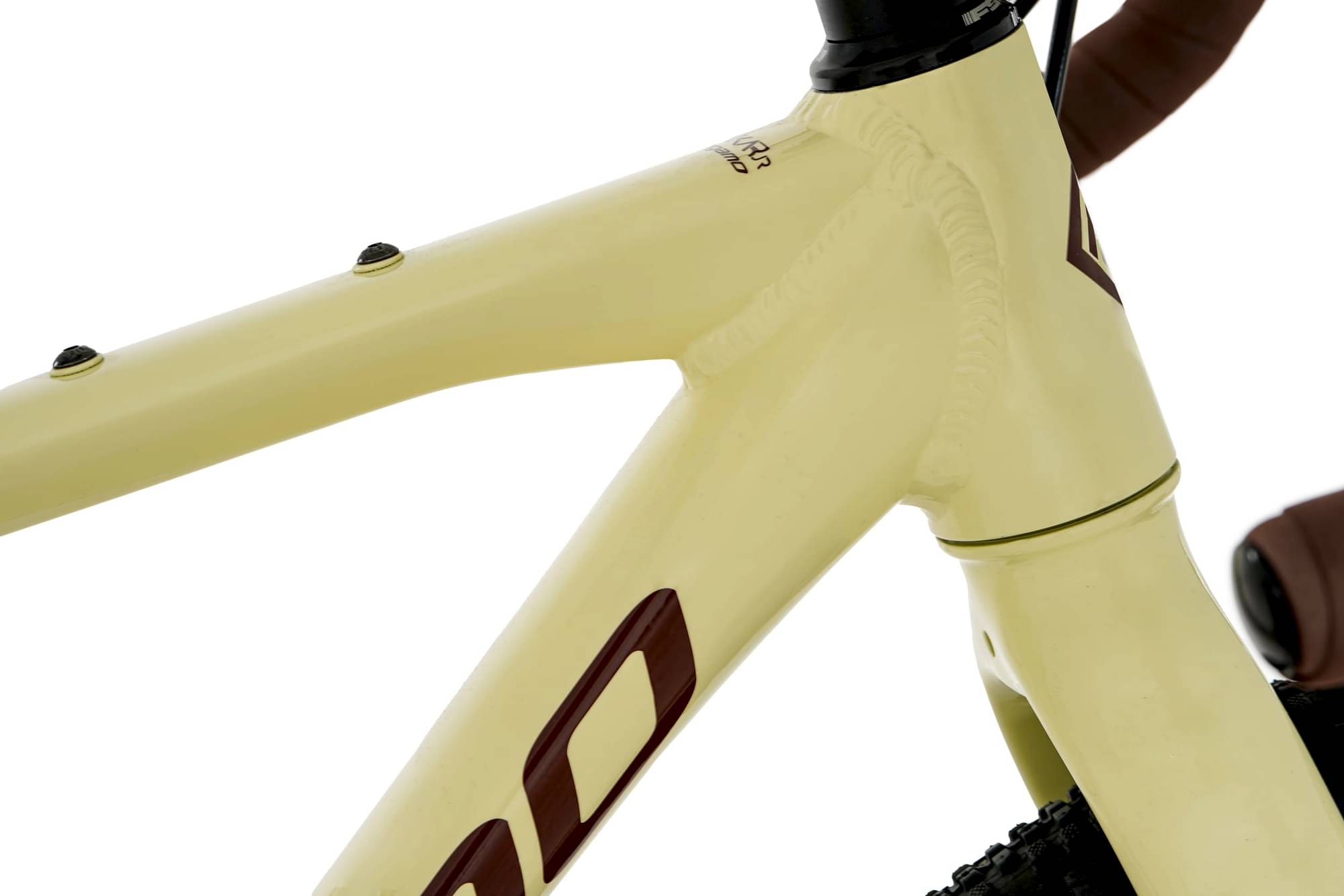

Gravel Junior AL 6061 Triple Butted, Hydroformed Technology, Internal Cable Routing, Flat Mount Disc, 9 x 135 mm QR
Suspension Fork
AL Disc Fork, Internal Cable Routing, Flat Mount, 9 x 100 mm Axle with Quick Release
Drivetrain
Shift Levers
Shimano ESSA U2030, 8-Speed
Cassette
Shimano HG300, 11-45T
Crank
Megamo Chainring 36T, Crankset 160mm
Wheels
Front Hub
Megamo Hubs, Front Axle 9 X 100 mm QR, Rear Axle 9 x 135 mm QR
Rear Hub
Megamo Hubs, Front Axle 9 X 100 mm QR, Rear Axle 9 x 135 mm QR
Rims
Megamo 26 FW DISC, Aluminium rim
Tires
WTB Riddler 1.95 x 26'' Tan Sidewall
Brakes
Brakes
Shimano RS305 Disc 2-Piston, 160mm
Cockpit
Stem
Megamo 3D Forged Alloy 31,8, ±7º Rise, 60 mm
Handlebar
Megamo Alloy 31,8 x 360 mm
Headset
FSA Orbit C-40-ACB, 1-1/8" - 1.5''
Seat
Saddle
Megamo Gravel Junior
Seatpost
Megamo Ø 27,2 mm, 300 mm
Fit data
Geometry
