Bike details
Overview
Key information split into simple groups.

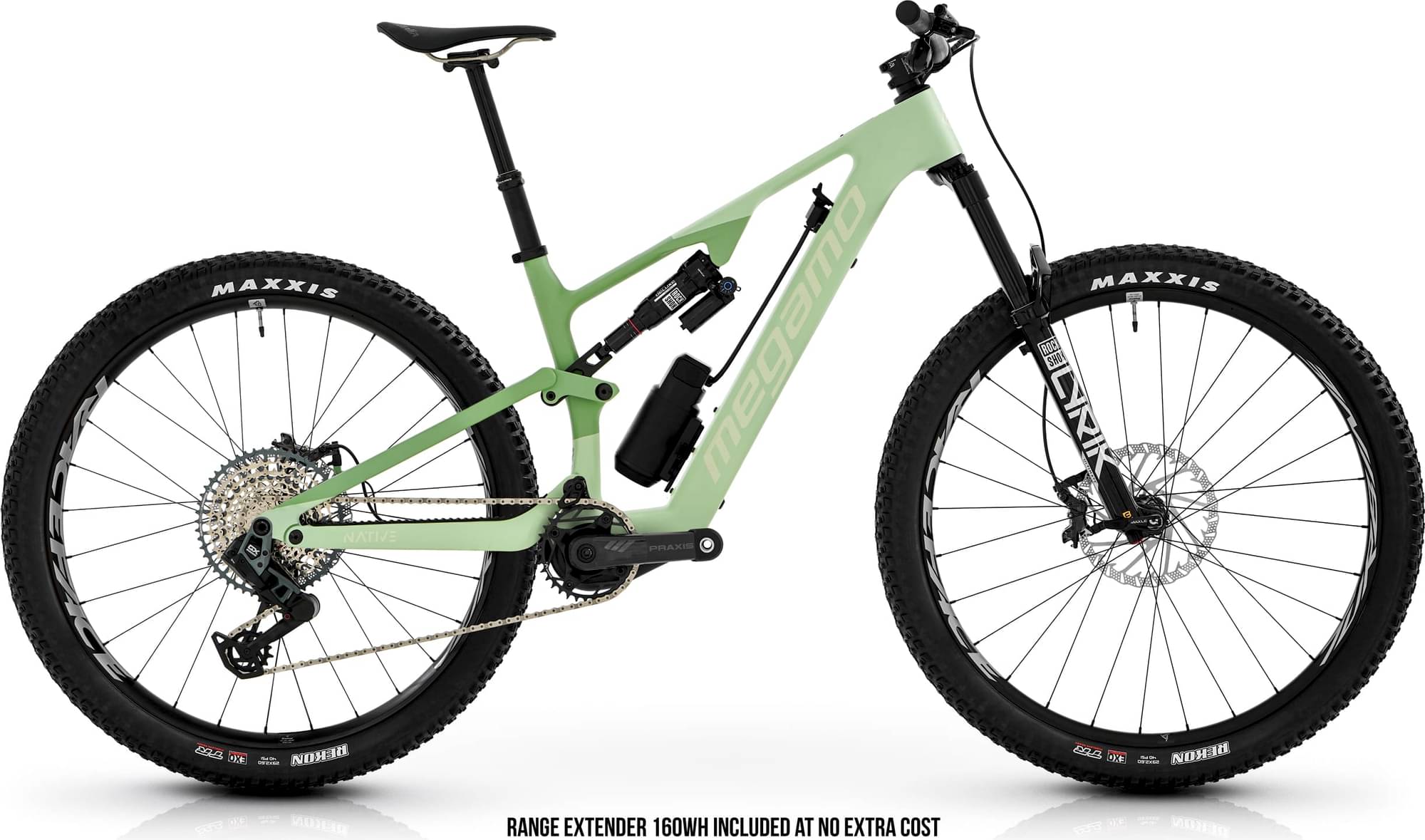

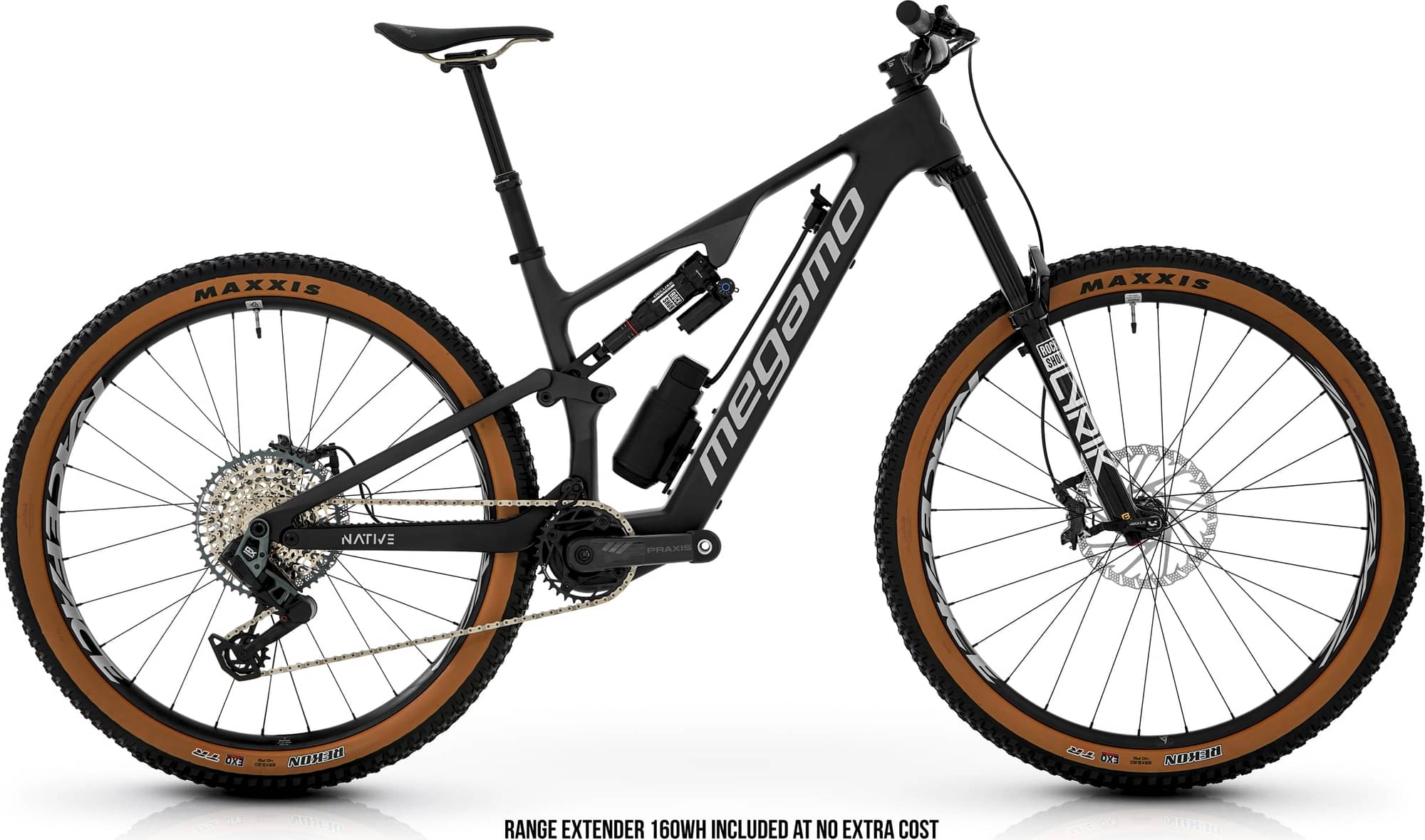

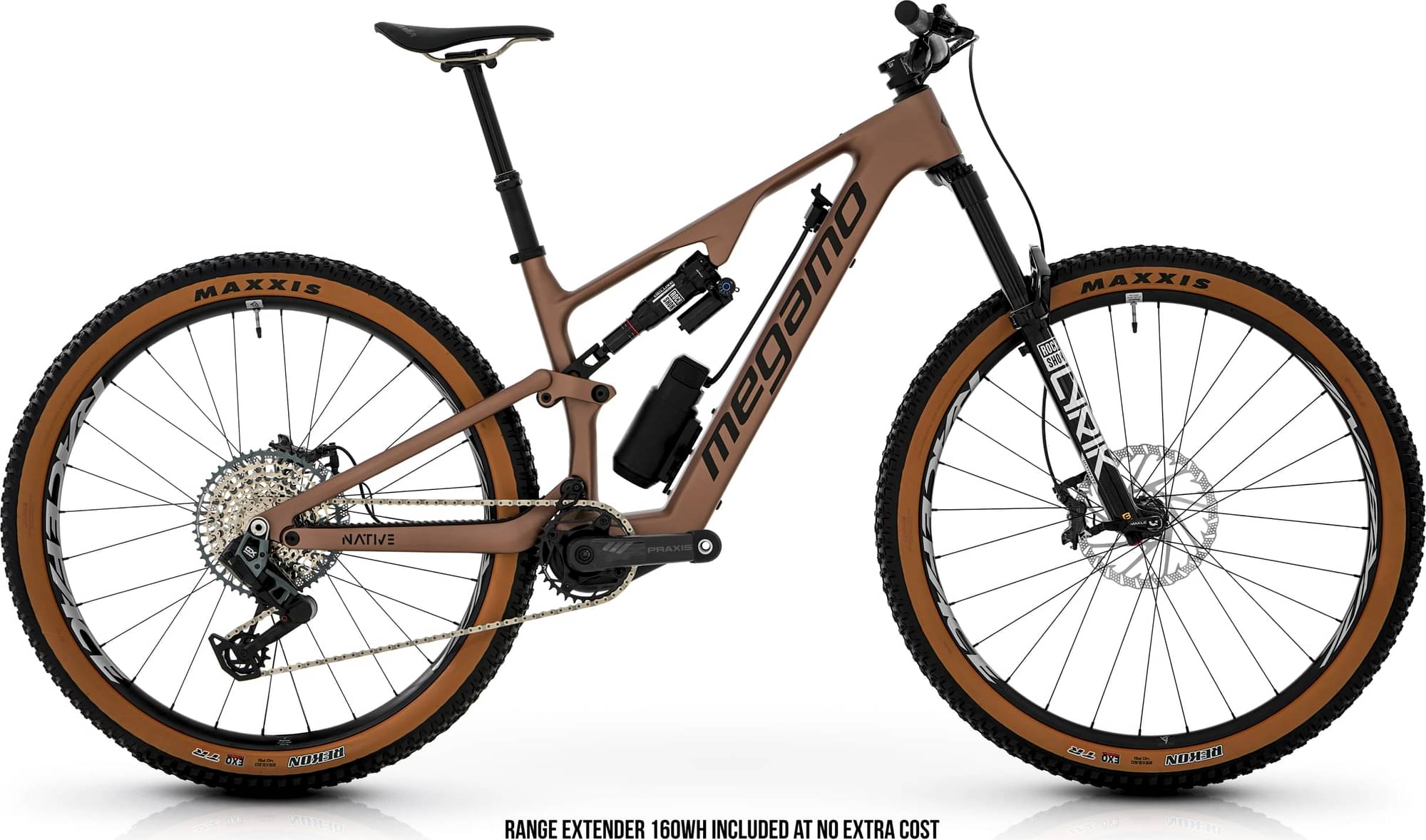

Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Lyrik Ultimate
-
Groupset GX Eagle Transmission -
Suspension Full -
Motor TQ 50Nm hub-drive -

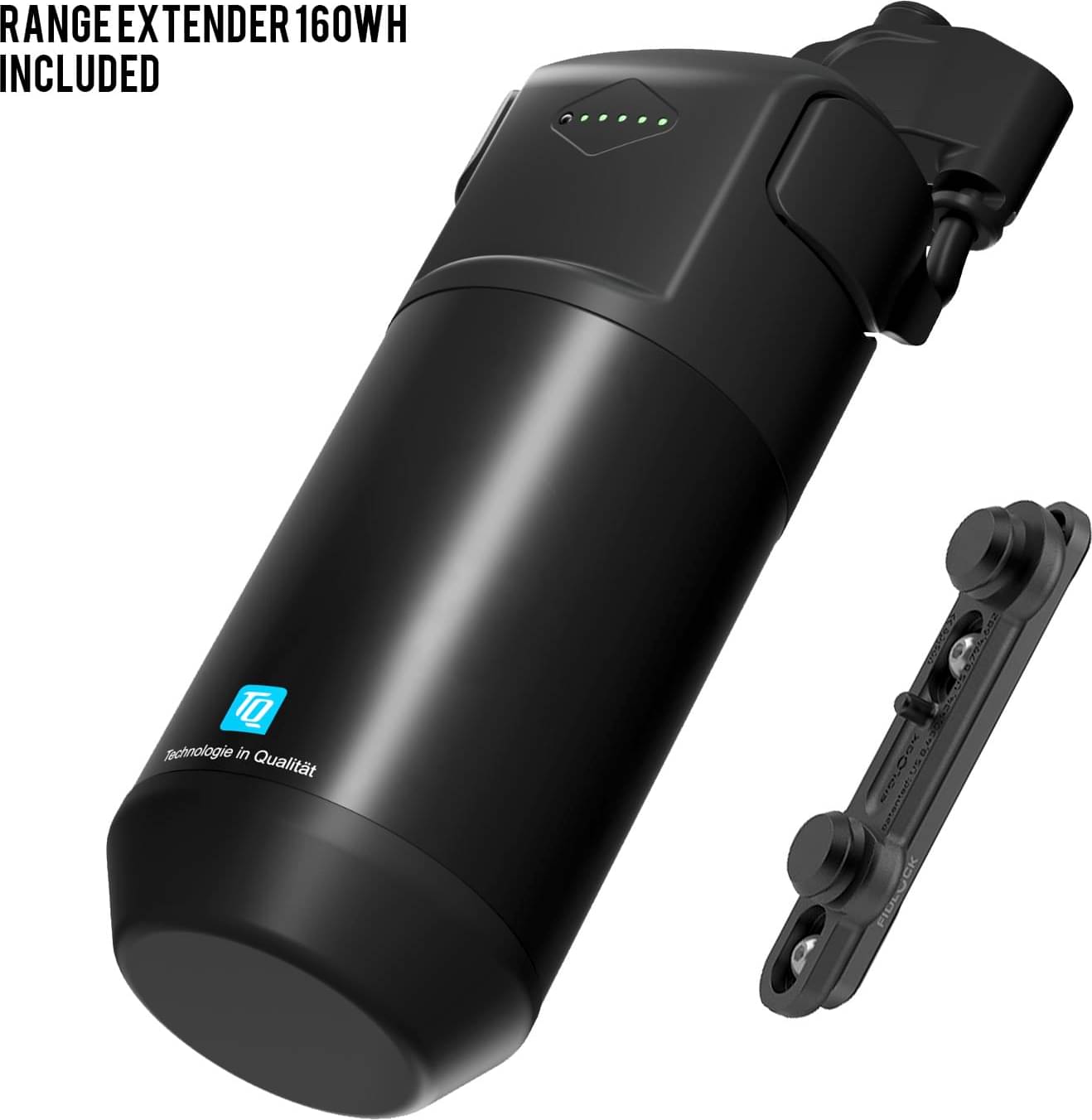

Battery Integrated LI-ION Battery, 360 Wh + Kit Range Extender TQ HPR 160 Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Native Full Carbon, TQ Specific, Boost 12x148mm, Wheel travel: 150mm, Tire clearance 29x2.6
Suspension Fork
Rock Shox Lyrik Ultimate, 150 mm, 15x110mm BOOST
Rear Shock
Rock Shox Super Deluxe+
Drivetrain
Rear Derailleur
SRAM GX AXS T-Type 12s
Cassette
SRAM GX AXS T-Type 12s
Crank
Praxis Carbon Ecrank Type ISIS 165 Carb MTN
Wheels
Rims
29" RaceFace Turbine R
Tires
Maxxis Rekon 29 x 2.6 TR
Brakes
Brakes
Shimano XT M8020 Hydraulic disc 4-Piston, 203mm
Cockpit
Stem
Race Face Aeffect
Handlebar
Race Face Turbine R
Headset
Integrated Full Internal Cable Routing
Seat
Seatpost
Race Face Turbine R
Motor & Battery
Motor
TQ HPR50 / 50 Nm
Battery
Integrated LI-ION Battery, 360 Wh + Kit Range Extender TQ HPR 160 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.433 mm | 1.356 mm | 1.296 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm |
| Front Center | 741 mm | 771 mm | 809 mm |
| Rake | 45 mm | 45 mm | 44 mm |
| Trail | 121 mm | 121 mm | 122 mm |
| Stack | 612 mm | 617 mm | 631 mm |
| Reach | 427 mm | 455 mm | 487 mm |
| Top Tube Length | 574 mm | 603 mm | 636 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 455 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1179 mm | 1209 mm | 1247 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
