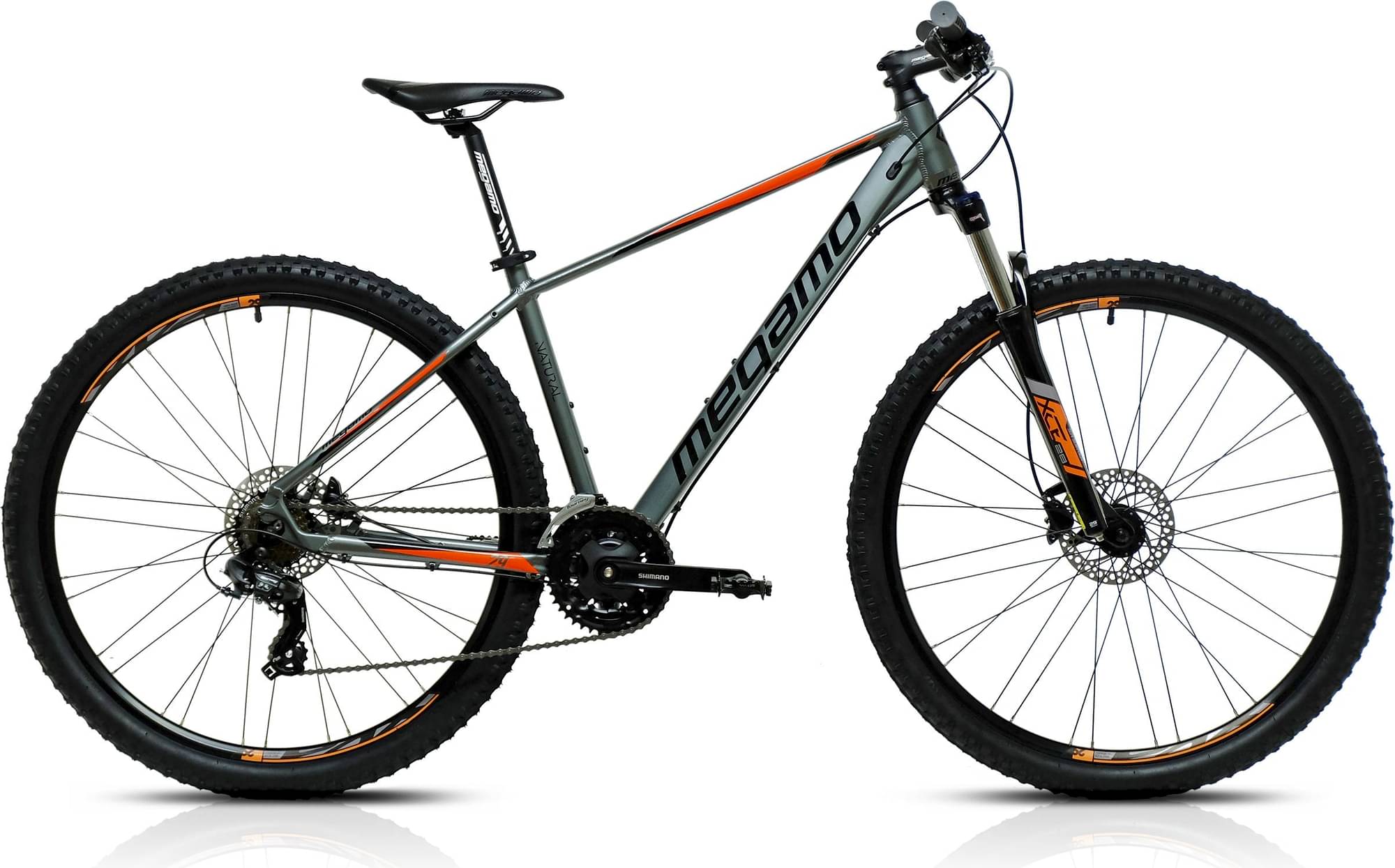

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy 6061 Double Butted, Hydroformed Technology, Internal Cable Routing
Suspension Fork
Suntour XCE DS Travel 100
Drivetrain
Rear Derailleur
Shimano Tourney TY300 7s
Shift Levers
Shimano Altus M310 3x7
Cassette
Shimano TZ5007 14-34 7s
Crank
Shimano TY301 42/34/24
Wheels
Front Hub
Formula
Rear Hub
Formula
Rims
Megamo Doble Wall Disc
Tires
29" x 2,1 MTB / 27,5" x 2,1 MTB
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Megamo Fov Compact
Handlebar
Megamo Fov Compact
Headset
1-1/8" Semi Integrated
Seat
Saddle
Megamo
Seatpost
Megamo 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.548 mm | 1.49 mm | 1.435 mm | 1.388 mm |
| Stack | 610 mm | 620 mm | 630 mm | 640 mm |
| Reach | 394 mm | 416 mm | 439 mm | 461 mm |
| Top Tube Length | 575 mm | 600 mm | 625 mm | 650 |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 395 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
