Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano Ultegra Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

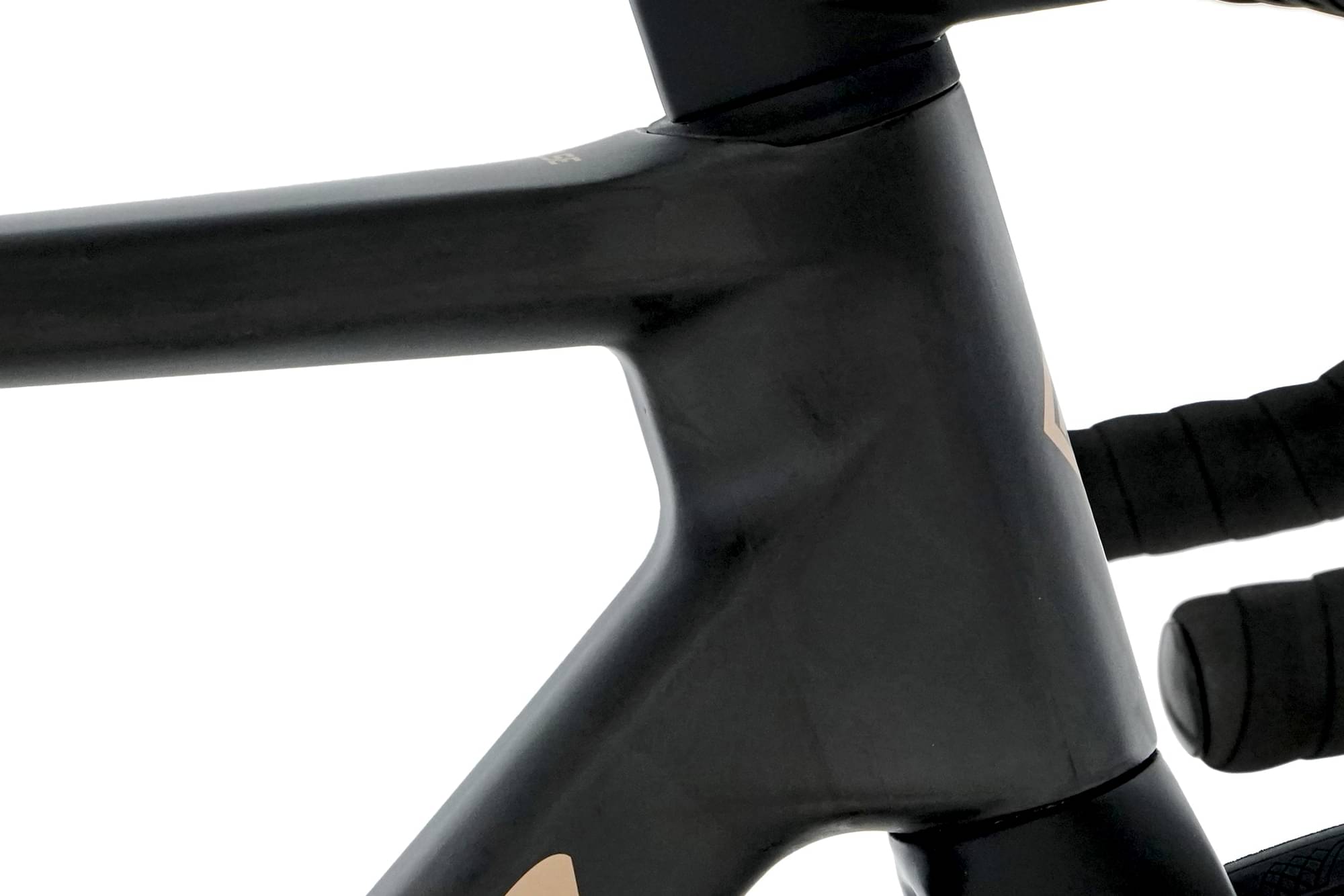

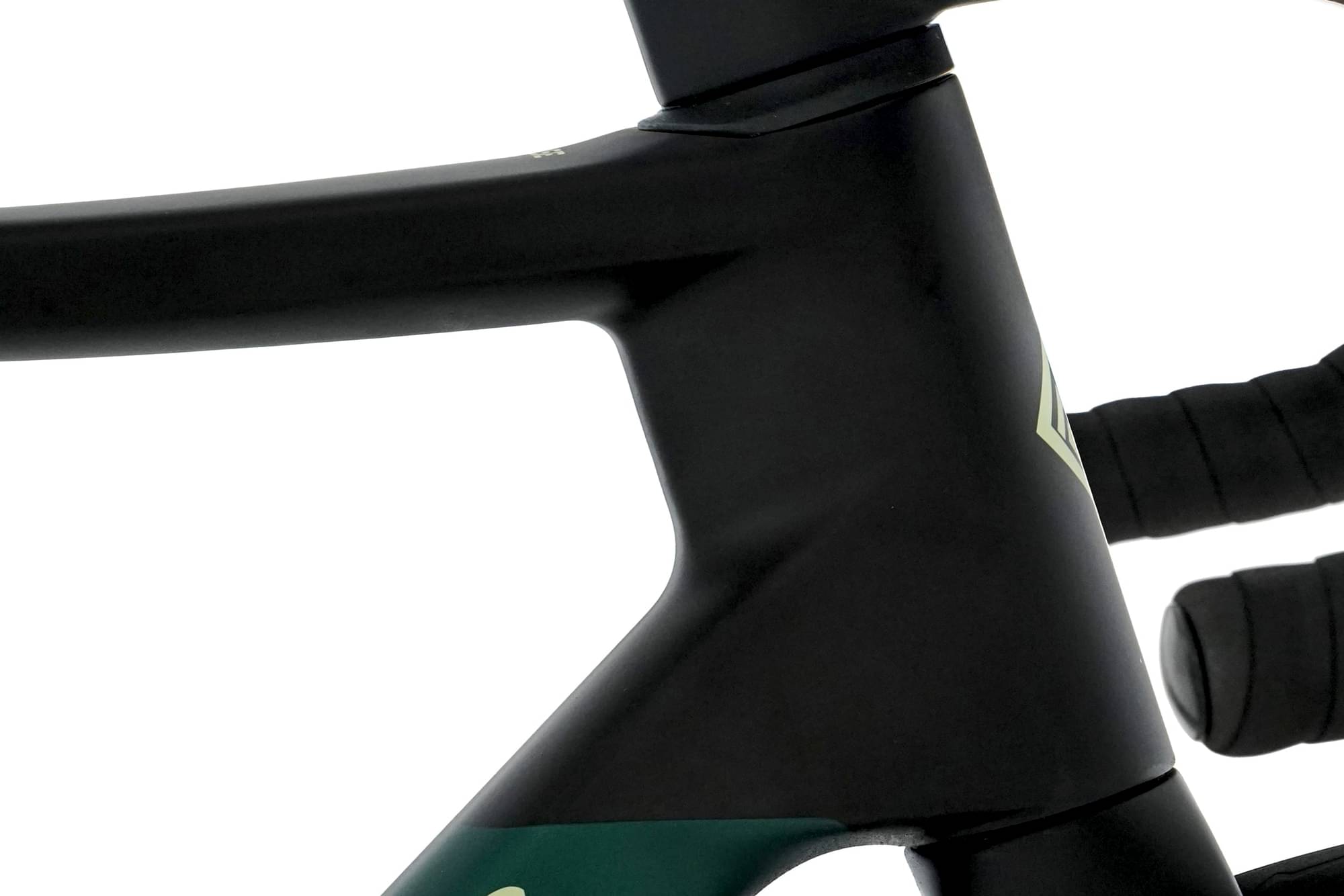

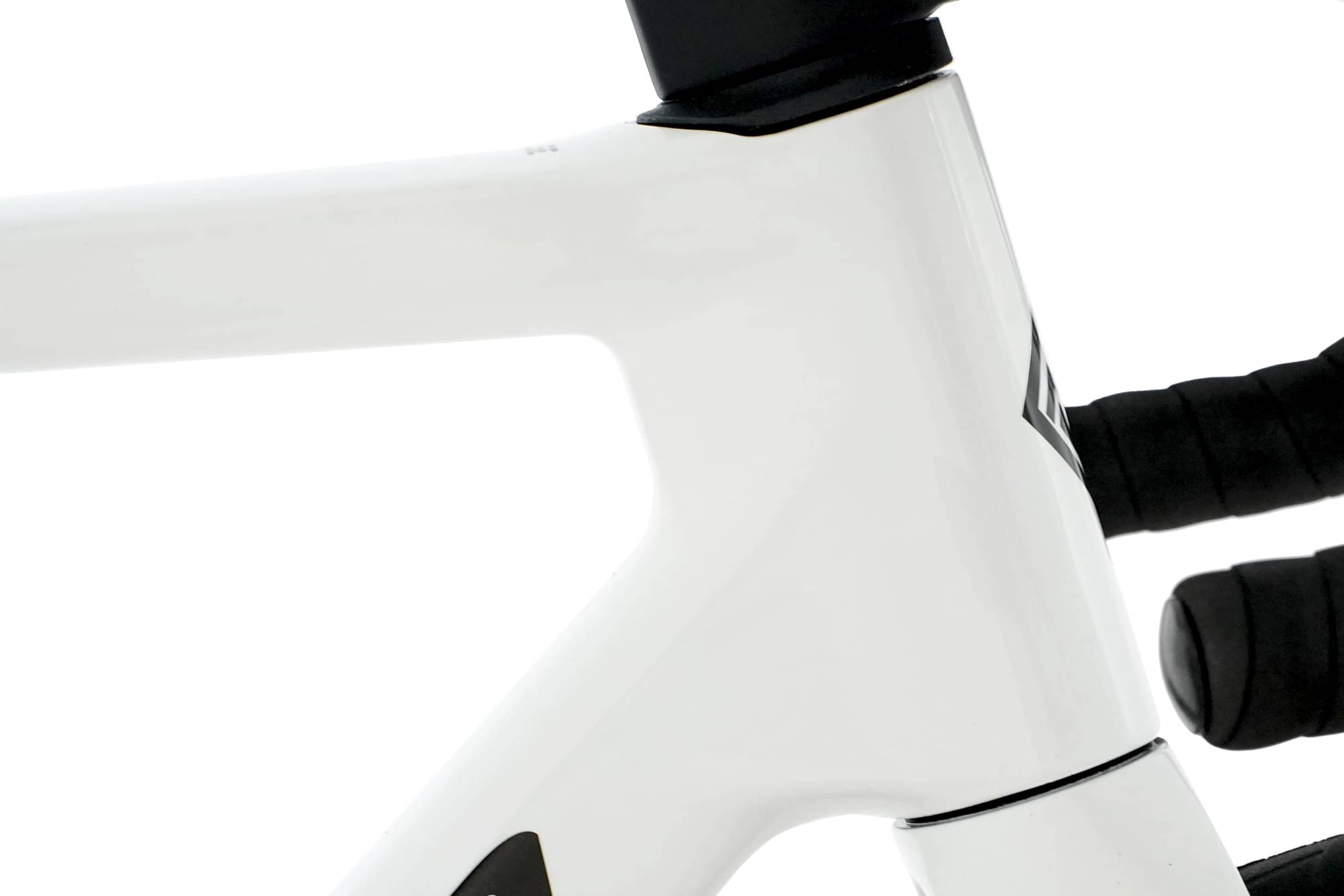

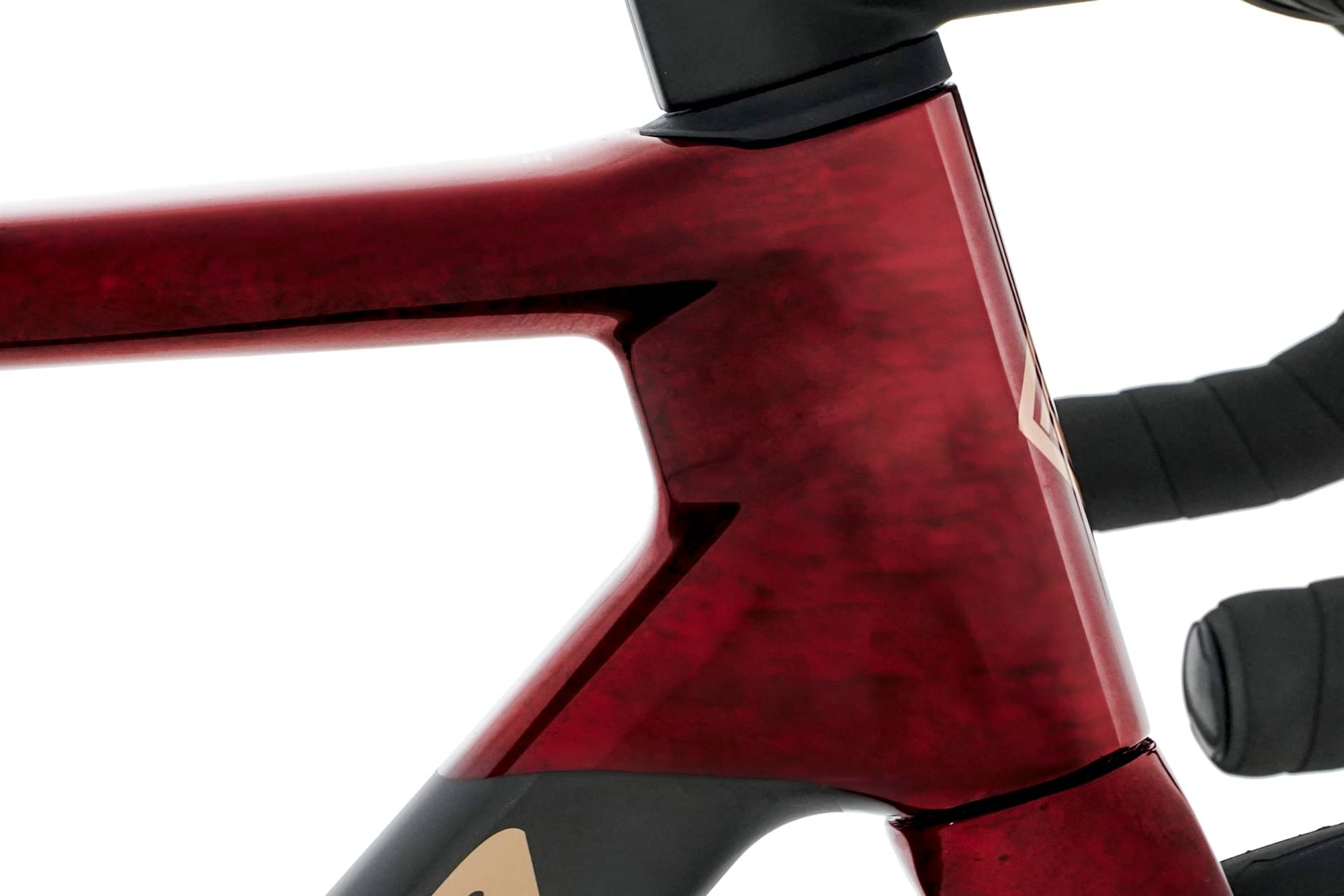

Carbon Advanced Composite frame, Full Internal Cable Routing, Flat mount disc 12x142
Suspension Fork
Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150 12s
Shift Levers
Shimano Ultegra Di2 R8150 12s
Cassette
Shimano Ultegra Di2 R8100 12s 11-30T
Crank
Shimano Ultegra Di2 R8100 12s 52-36T
Wheels
Rims
Fulcrum Racing 800 DB
Tires
Pirelli P Zero RC TLR Classic / Vittoria Rubino Pro IV 700x28 TLR G2.0
Brakes
Brakes
Shimano Ultegra Di2 R8170 12s Hydraulic Disc
Cockpit
Handlebar
Carbon Full Integratted Internal Cable Routing: 80/370 (XS), 90/390 (S), 100/390 (M), 110/410 (L), 120/430 (XL)
Headset
Totally Internal Cable routing
Seat
Saddle
Selle Italia Novus Boost Evo Superflow Titanium
Seatpost
Aerodinamic Advanced Carbon Seat Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.341 mm | 1.363 mm | 1.397 mm | 1.428 mm | 1.471 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Stack | 503 mm | 518 mm | 538 mm | 557 mm | 581 mm |
| Reach | 375 mm | 380 mm | 385 mm | 390 mm | 395 mm |
| Top Tube Length | 515 mm | 529 mm | 544 mm | 558 mm | 576 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.25 ° | 72.75 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 100 mm | 115 mm | 135 mm | 155 mm | 180 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
