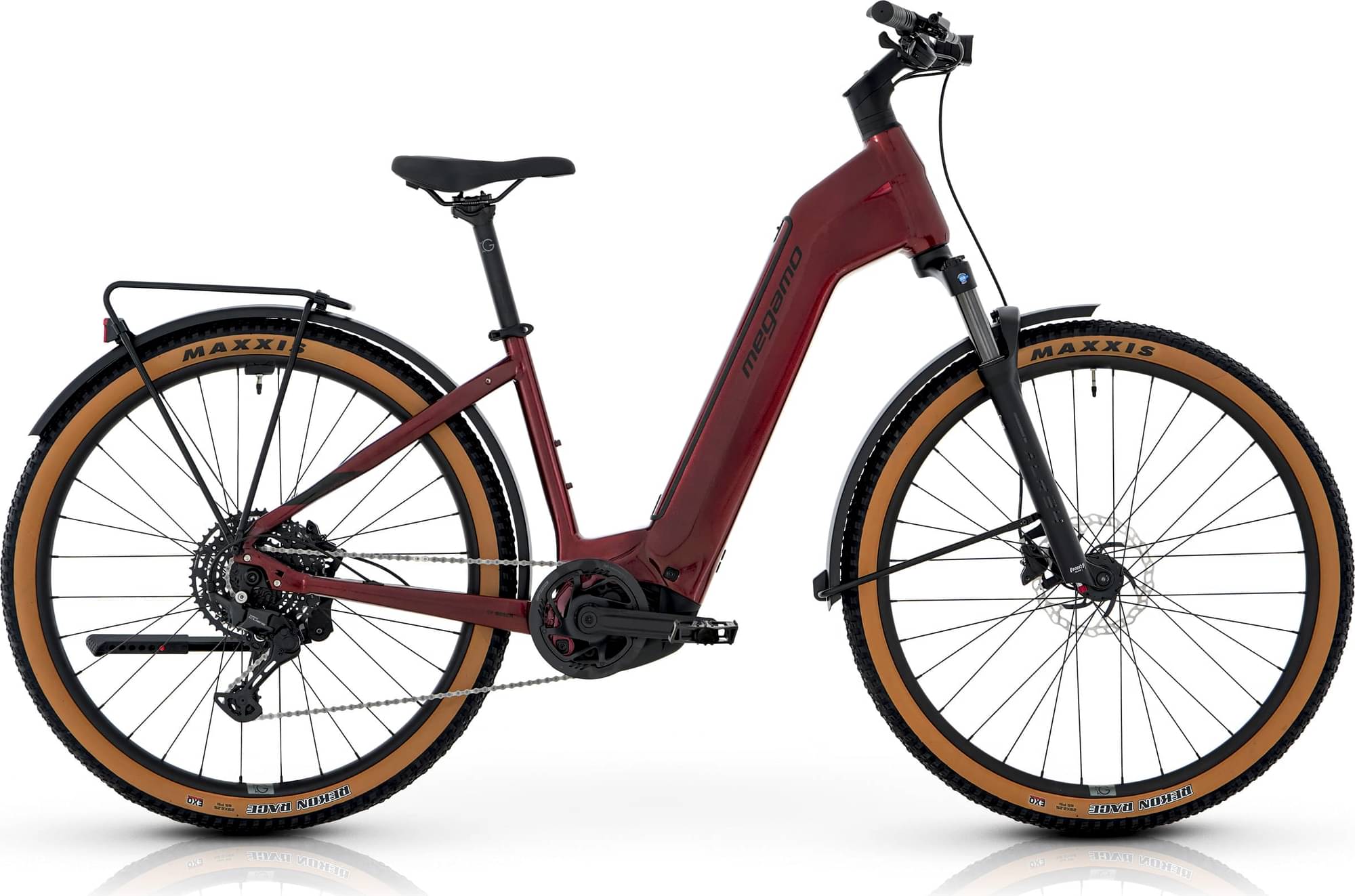

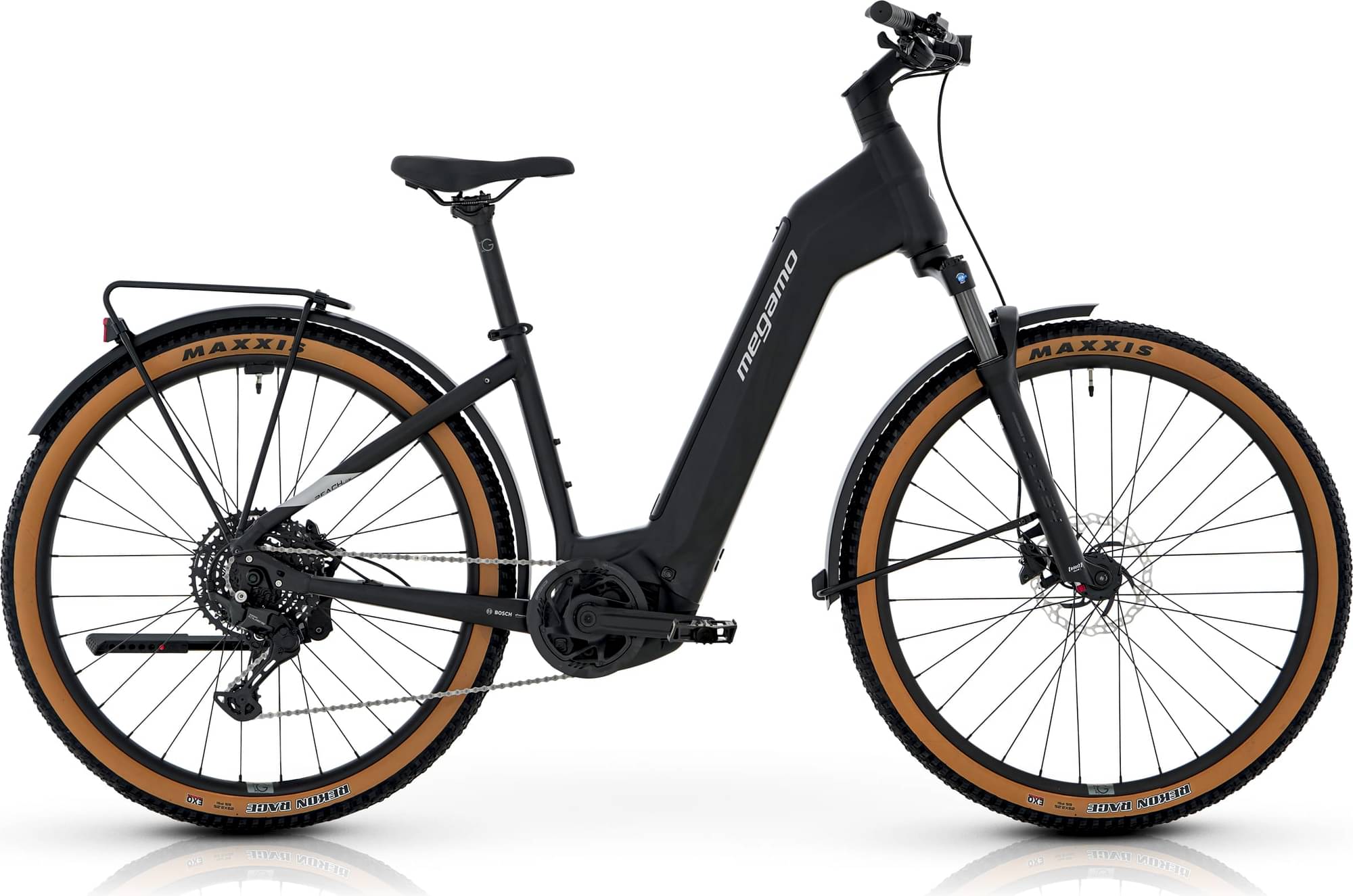

Megamo REACH LOW 10 SUV 2025
2025 E-bike
Estimate price |
4,536$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 750W 100Nm mid-drive -
Battery Bosch PowerTube 600 -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

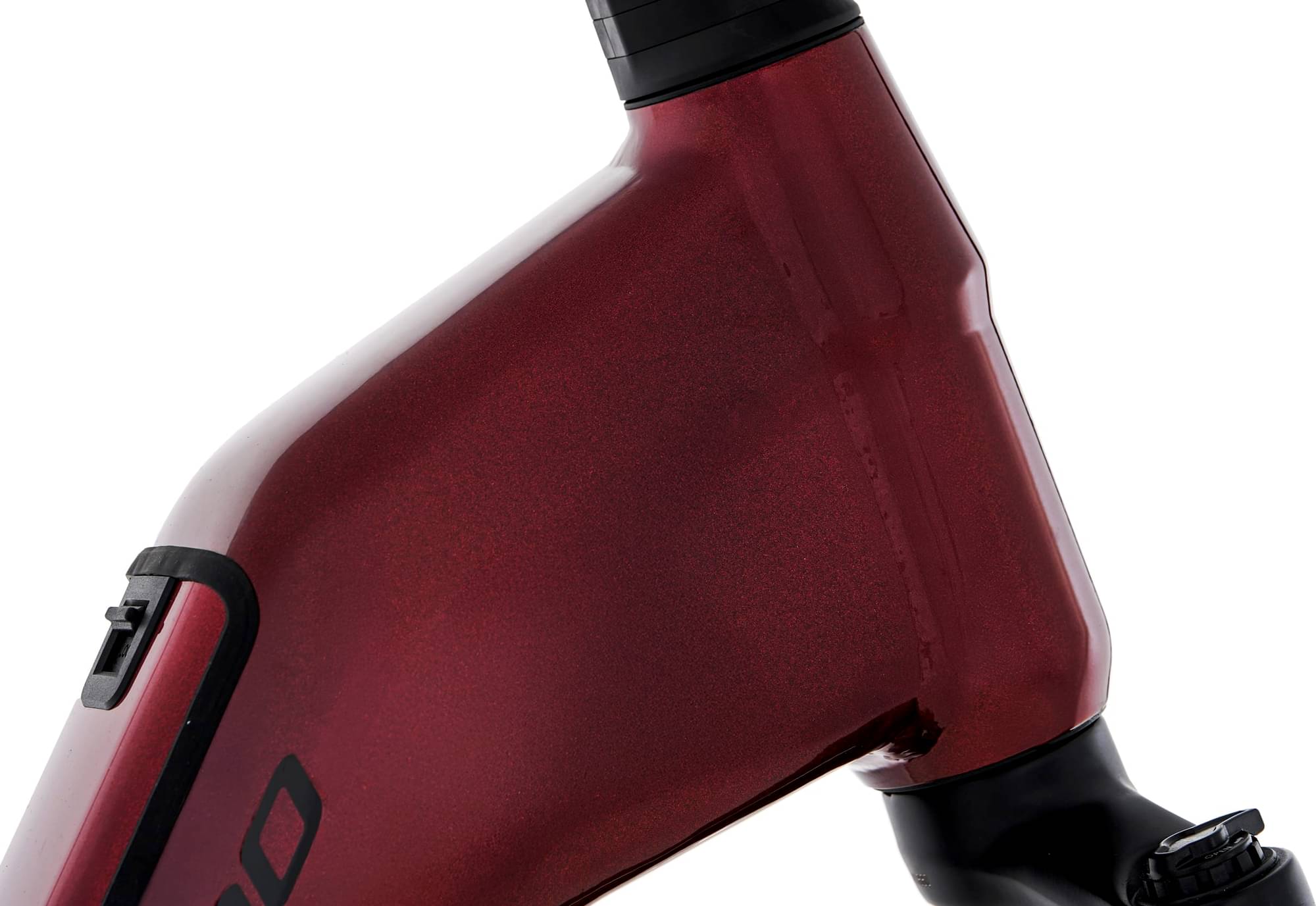

Aluminium E-Bike Specific DT Frame, Full Integratted Battery, Central motor, Hydroformed Technology, Integrated Cable Routing, 12 x 148 BOOST
Suspension Fork
SUNTOUR XCR 34, COIL, 100mm Travel, 15 x 110 mm BOOST
Drivetrain
Rear Derailleur
Shimano CUES TD-U6000-GS, ShadowPlus 10-Speed
Shift Levers
Shimano CUES U6000 Rapidfire Plus 10-Speed
Cassette
Shimano CUES LG300 11-48T
Crank
FSA Bosch Direct Mount Chainring & Chainguard 38t CL55 10/11-Speed, Crankset 320 165mm
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
Megamo Hubs, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST EBIKE+
Rear Hub
Megamo Hubs, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST EBIKE+
Rims
Megamo 29 SL 27 ASY - SUV, 27mm Tubeless ready Aluminium Rim
Tires
MAXXIS 29 x 2.25 Rekon Race
Brakes
Brakes
Shimano MT200 Hydraulic Disc, 180mm
Cockpit
Stem
Satori Rana ICR 31.8, +20º Rise, S size 90 mm / M size 90 mm / L size 110 mm + Satori Rana Accessories for Light Mount
Handlebar
Satori Wien AL6061, 31,8 x 680 x 20 mm, 15º Back Sweep
Headset
Acros AZX-727 ZS56
Seat
Saddle
Megamo E-Bike Confort+
Seatpost
Megamo alloy Ø 30.9 mm, S size 350 x 2.2 mm / M size 350 x 2.2 mm / L size 400 x 2.6 mm
Motor & Battery
Motor
Bosch Performance Line CX, 5gen BDU384Y, Smart System / 100Nm 750W
Battery
Bosch PowerTube 600
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.693 mm | 1.652 mm | 1.639 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm |
| Front Center | 710 mm | 720 mm | 742 mm |
| Rake | 33 mm | 33 mm | 33 mm |
| Trail | 116 mm | 116 mm | 116 mm |
| Stack | 689 mm | 689 mm | 708 mm |
| Reach | 407 mm | 417 mm | 432 mm |
| Top Tube Length | 605 mm | 615 mm | 635 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 430 mm | 485 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 175 mm | 175 mm | 195 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1184 mm | 1194 mm | 1216 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
