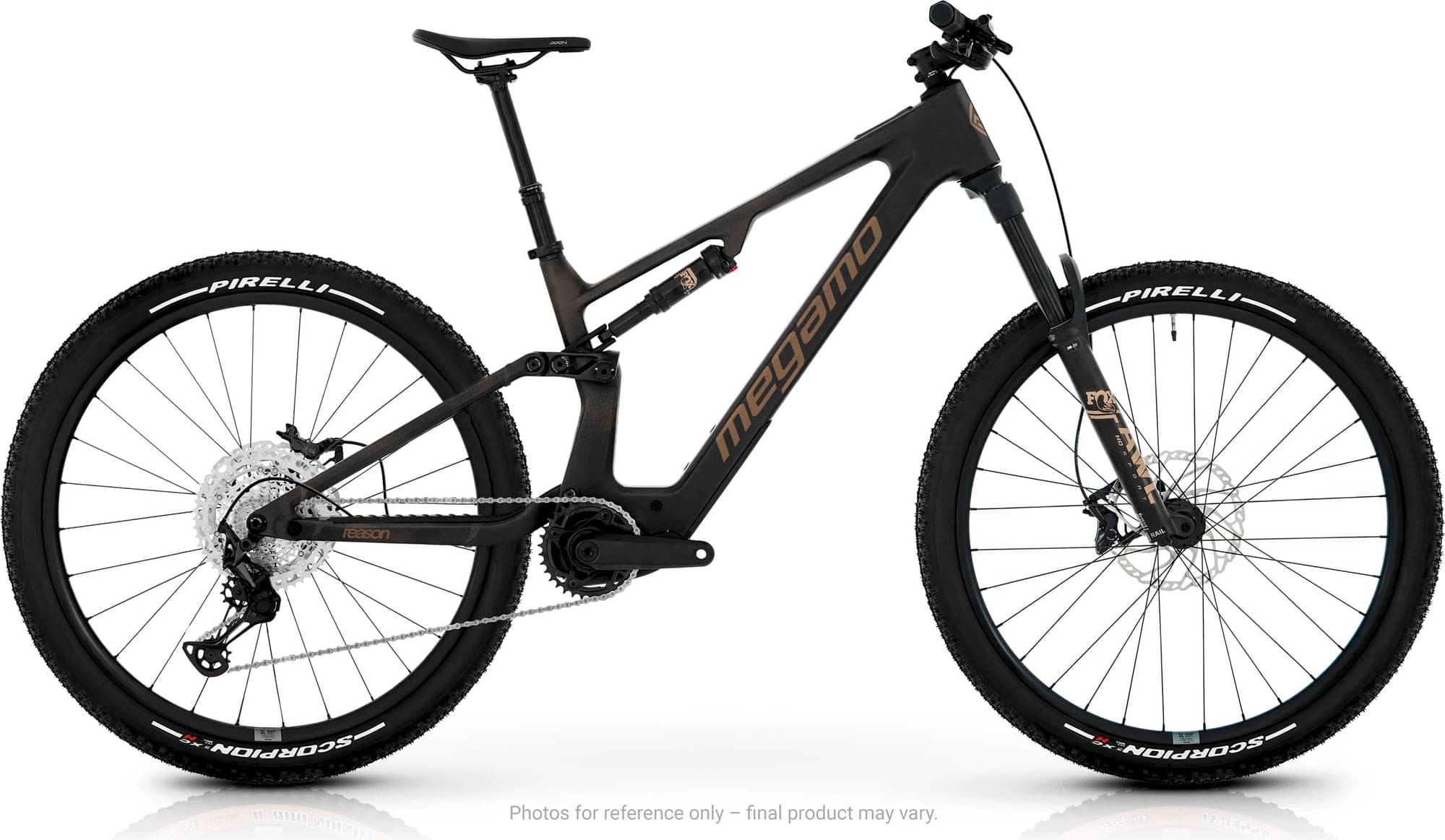

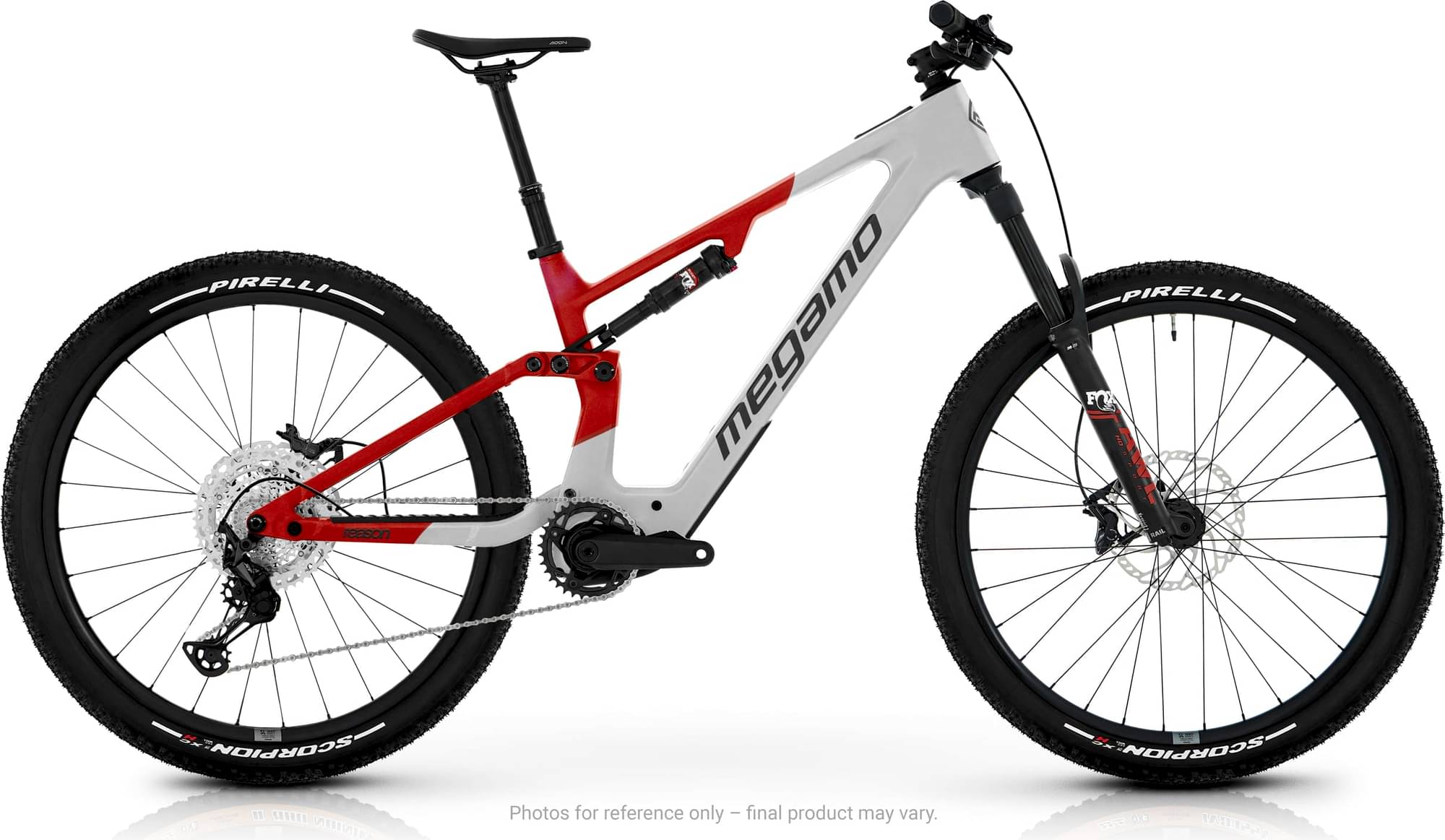

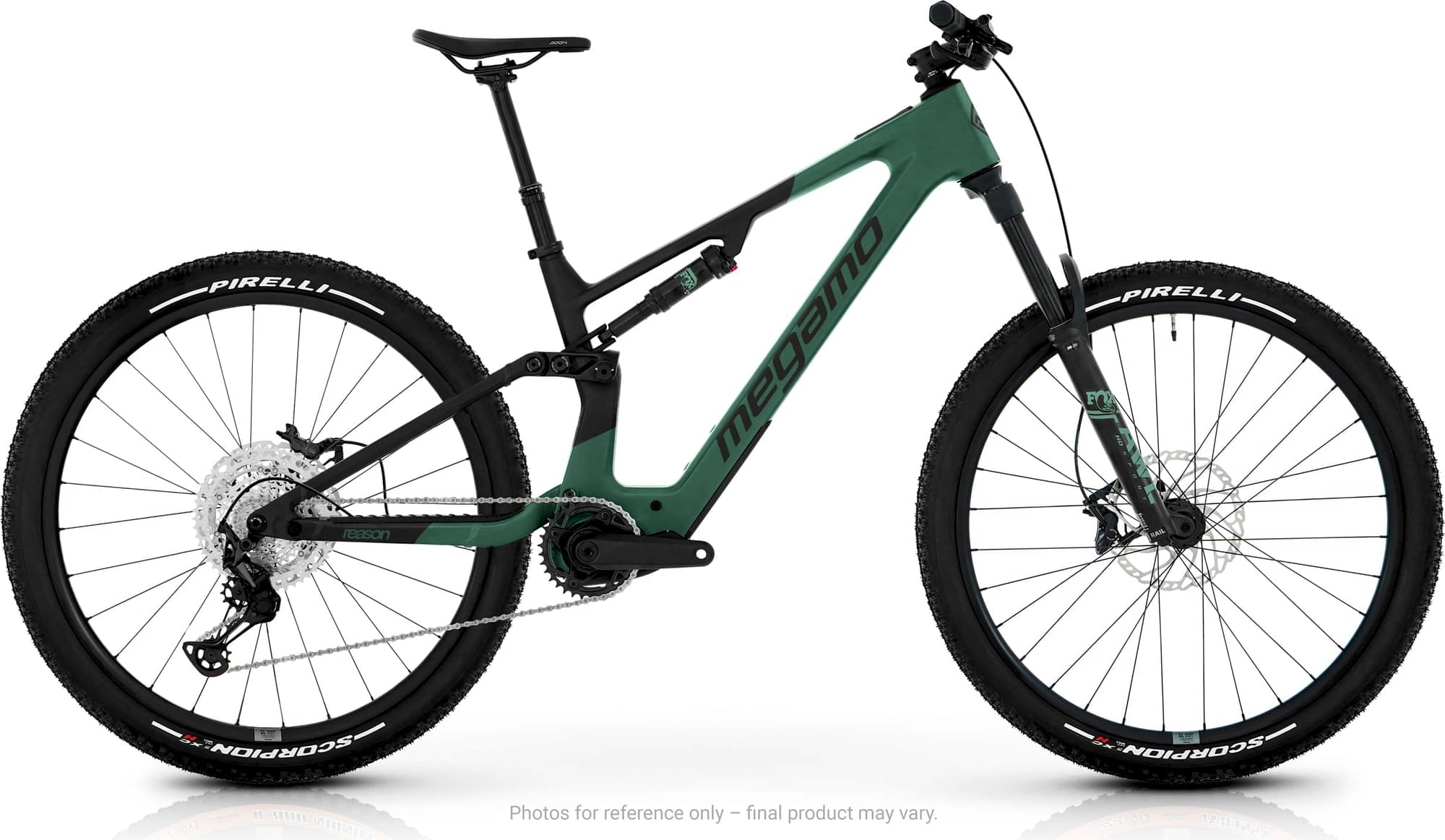

Megamo REASON AIR AL 15 2026
2026 E-bike
Estimate price |
5,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork Fox AWL
-
Groupset XT, Deore -
Suspension Full -
Motor DJI 850W 120Nm mid-drive -
Battery DJI Avinox 800 Wh, 35,9V, IP56 -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox 34 FLOAT AWL HD Sport 29, 140mm, 15QRx110 Boost, 1.5T, 68HT, 44mm rake
Rear Shock
Fox Float Rhythm, Evol LV, 210x47,5mm, 2 Position
Drivetrain
Rear Derailleur
Shimano XT M8100, Shadow Plus 12-Speed
Shift Levers
Shimano Deore 6100 Speed Rapidfire Plus 12-Speed
Cassette
Shimano Deore 6100 10-51T
Crank
34T BCD 104mm with chainring bolt / Forged AL6061/T6 165mm beat blasted anodized black
Wheels
Rims
Megamo 29 SL 30 ASY - Micro, 30 mm Tubeless ready Aluminium rim
Tires
Maxxis Rekon Race 29x2,35 - Tubeless Ready, EXO, Foldable, 120 TPI
Brakes
Brakes
Shimano XT BR-M8220, hydraulic disc 4-Piston, 203/203mm
Cockpit
Stem
Megamo 3D Forged Alloy, ±7º Rise, S size 60 mm / M size 60 mm / L size 70 mm
Handlebar
Megamo Alloy Butted 35 x 800 mm, 12 mm Rise, 6º Back Sweep
Headset
Acros AZX-589 ZS56 blocklock 150º
Seat
Seatpost
Megamo Ø 31,6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 170 mm Drop
Motor & Battery
Motor
DJI Avinox M1,120Nm 1000W (Boost mode) / 105Nm 850W, 5 modos de asistencia, 150rpm
Battery
DJI Avinox 800 Wh, 35,9V, IP56
