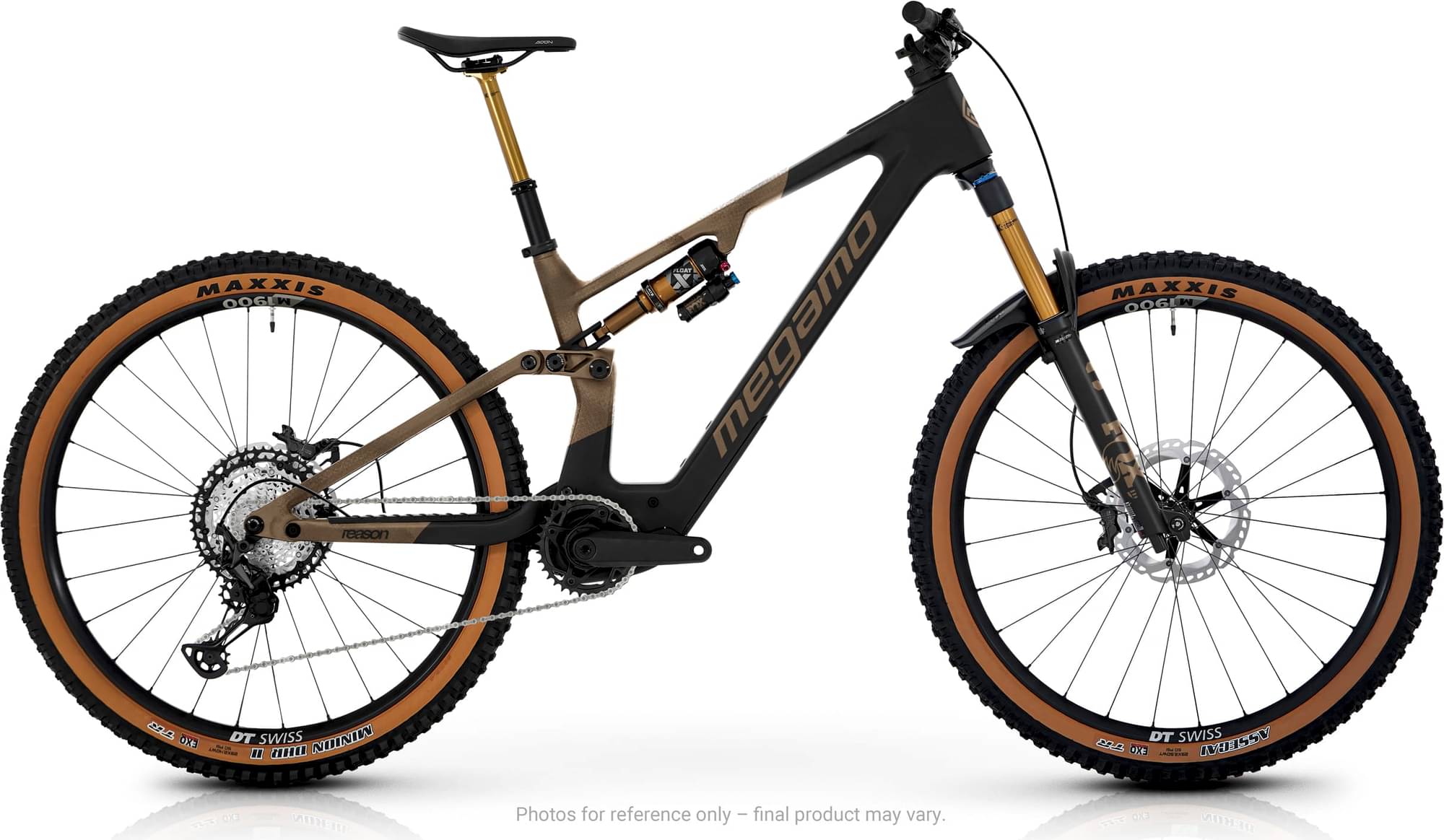

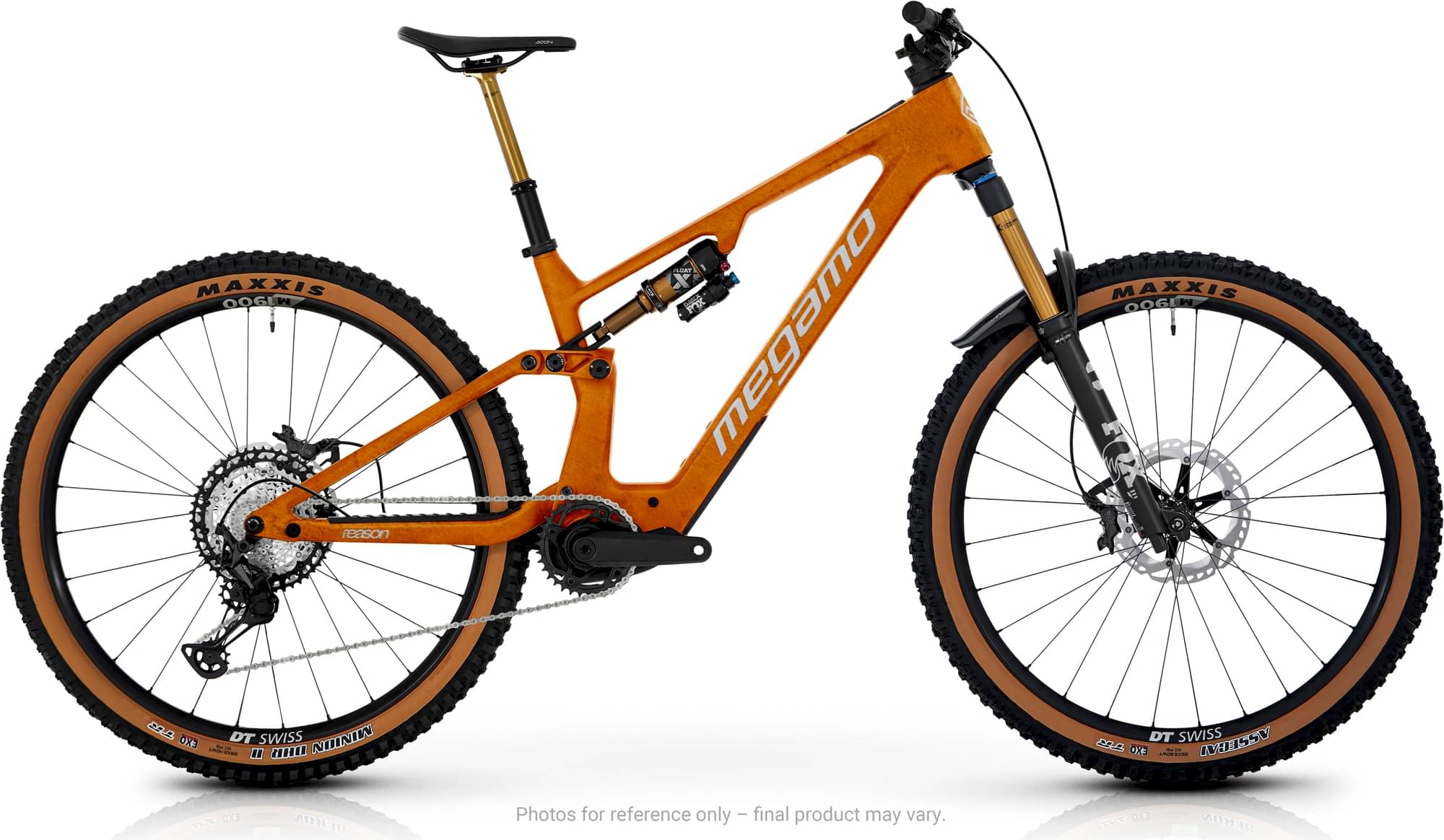

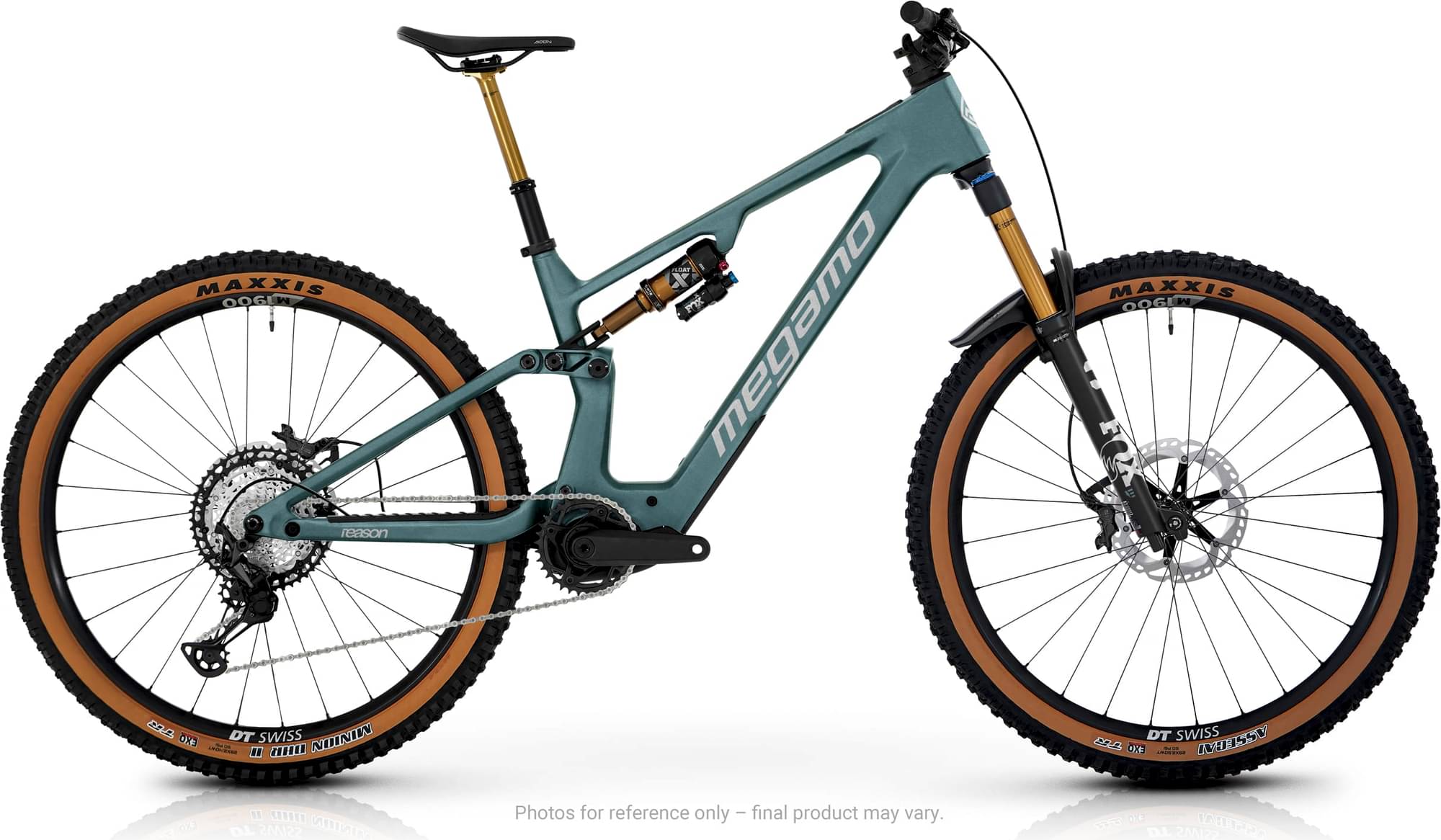

Megamo REASON CRB 03 2026
2026 E-bike
Estimate price |
9,306$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Motor DJI 850W 120Nm mid-drive -
Battery DJI Avinox 800 Wh, 35,9V, IP56 -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Reason Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 160 mm
Suspension Fork
Fox 36 Factory Kashima, Float, 29in, 160mm, Grip X2, Rake: 44mm
Rear Shock
Fox FLOAT X, Factory Series, Kashima 2pos-adj, Evol LV, 210x55
Drivetrain
Rear Derailleur
Shimano XT M8100, Shadow Plus 12-Speed
Shift Levers
Shimano XT M8100, 12-Speed
Cassette
Shimano XT M8100, 10-51T
Crank
34T BCD 104mm with chainring bolt / Forged AL6061/T6 165mm beat blasted anodized black
Wheels
Rims
DT Swiss M 1900 SP, 30mm Tubeless ready Aluminium rim
Tires
Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II
Brakes
Brakes
Shimano XT BR-M8220, hydraulic disc 4-Piston, 203/203mm
Cockpit
Stem
Satori New Ursa 35mm
Handlebar
Carbon Race Face ERA 35x800, Rise 20mm
Headset
Acros AZX-589 ZS56 blocklock 150º
Seat
Saddle
Fizik Terra Aidon X5
Seatpost
Fox Transfer Kashima 31,6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 175 mm Drop
Motor & Battery
Motor
DJI Avinox M1,120Nm 1000W (Boost mode) / 105Nm 850W, 5 modos de asistencia, 150rpm
Battery
DJI Avinox 800 Wh, 35,9V, IP56
