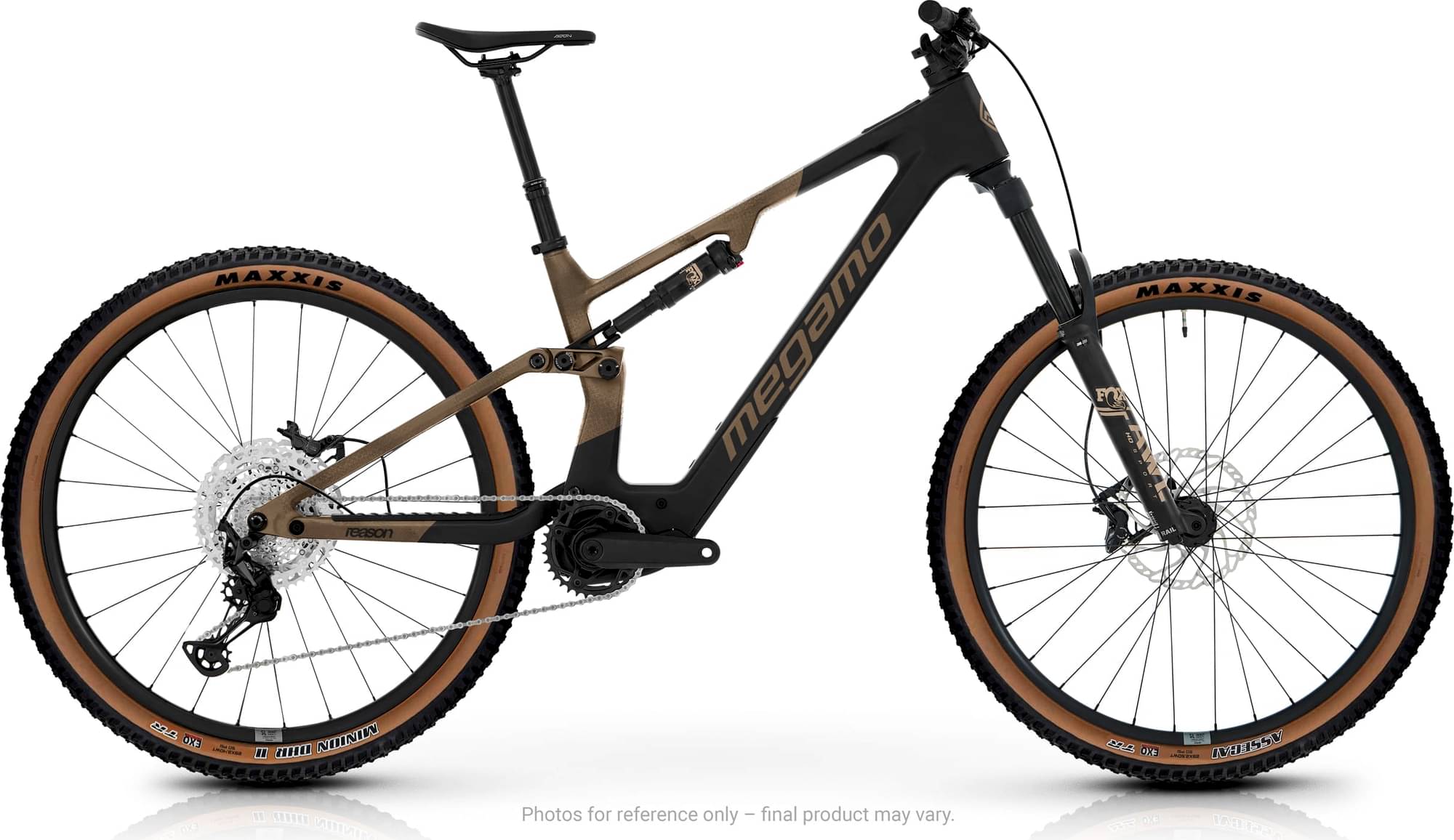

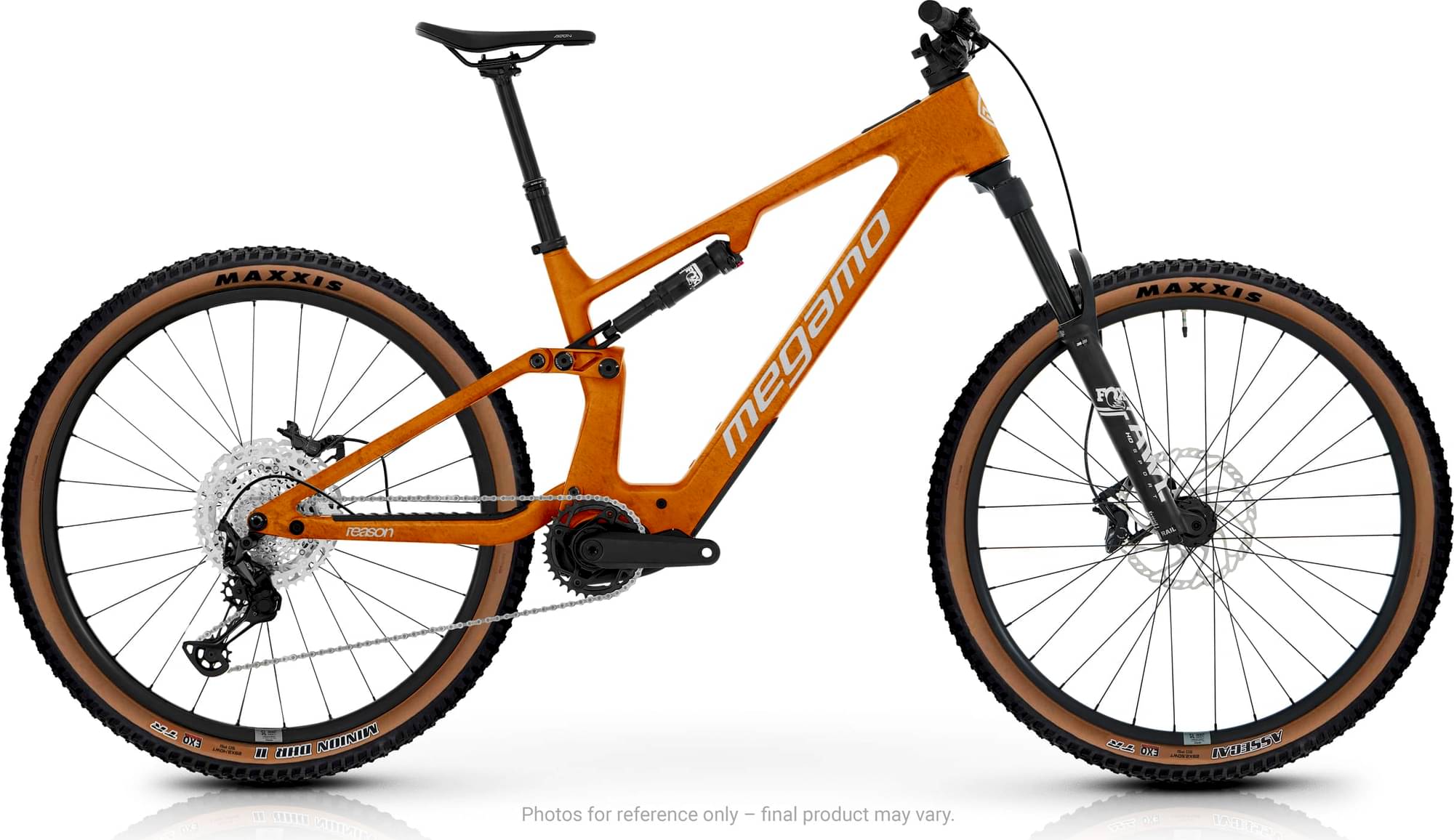

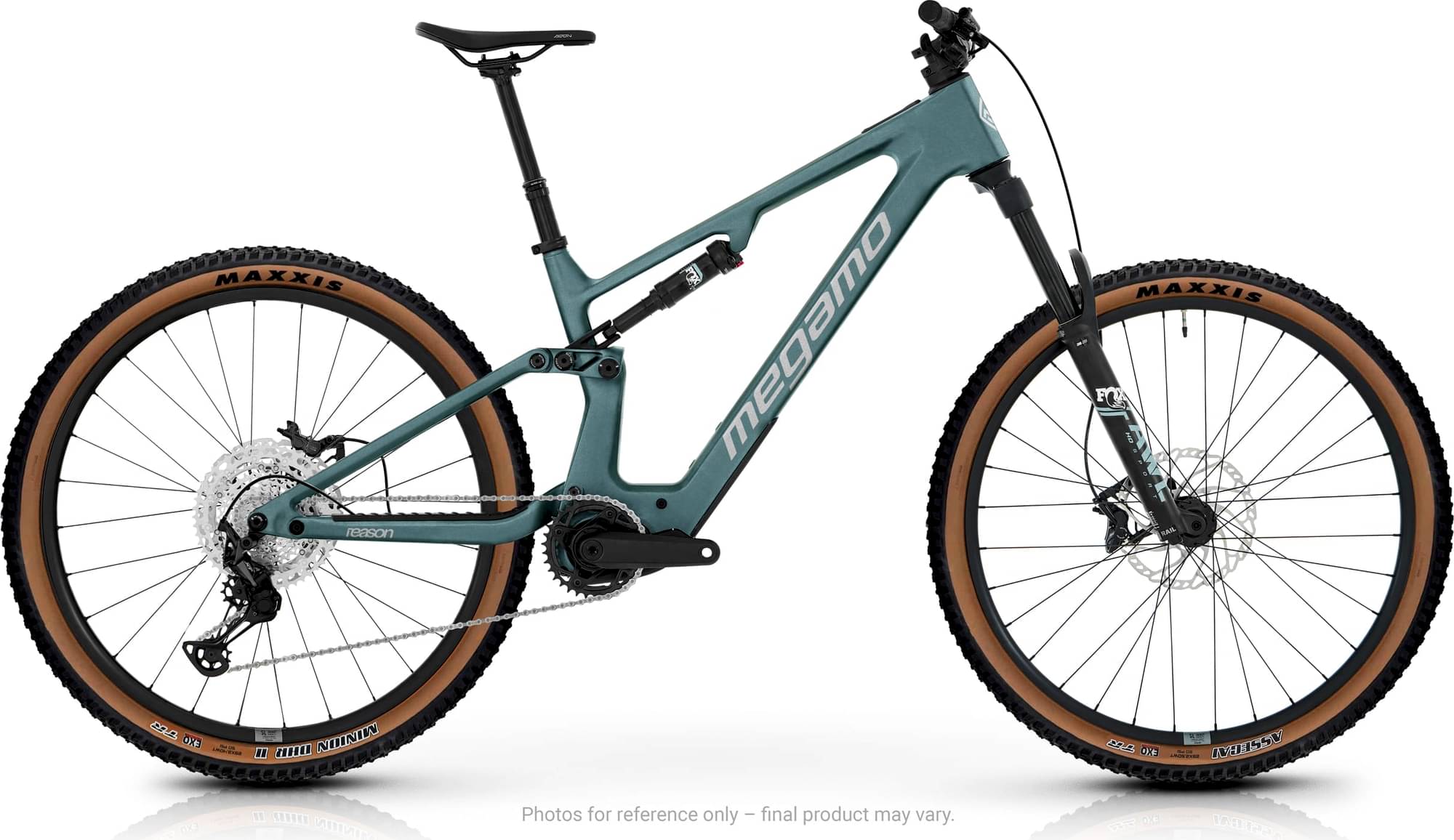

Megamo REASON CRB 07 2026
2026 E-bike
Estimate price |
6,979$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox AWL
-
Groupset XT, Deore -
Suspension Full -
Motor DJI 850W 120Nm mid-drive -
Battery DJI Avinox 800 Wh, 35,9V, IP56 -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Reason Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 160 mm
Suspension Fork
Fox 36 FLOAT AWL HD Sport 29, 160mm, 15QRx110 Boost, 1.5T, 68HT, 44mm rake
Rear Shock
Fox Float Rhythm, Evol LV, 210x55mm, 2 Position
Drivetrain
Rear Derailleur
Shimano XT M8100, Shadow Plus 12-Speed
Shift Levers
Shimano Deore 6100 Speed Rapidfire Plus 12-Speed
Cassette
Shimano Deore 6100 10-51T
Crank
34T BCD 104mm with chainring bolt / Forged AL6061/T6 165mm beat blasted anodized black
Wheels
Rims
Megamo 29 SL 30 ASY - Micro, 30 mm Tubeless ready Aluminium rim
Tires
Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II
Brakes
Brakes
Shimano MT520 hydraulic disc 4-Piston, 203mm
Cockpit
Stem
Satori New Ursa 35mm
Handlebar
Megamo Alloy Butted 35 x 800 mm, 12 mm Rise, 6º Back Sweep
Headset
Acros AZX-589 ZS56 blocklock 150º
Seat
Saddle
Fizik Terra Aidon X5
Seatpost
Megamo Ø 31,6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 170 mm Drop
Motor & Battery
Motor
DJI Avinox M1,120Nm 1000W (Boost mode) / 105Nm 850W, 5 modos de asistencia, 150rpm
Battery
DJI Avinox 800 Wh, 35,9V, IP56
