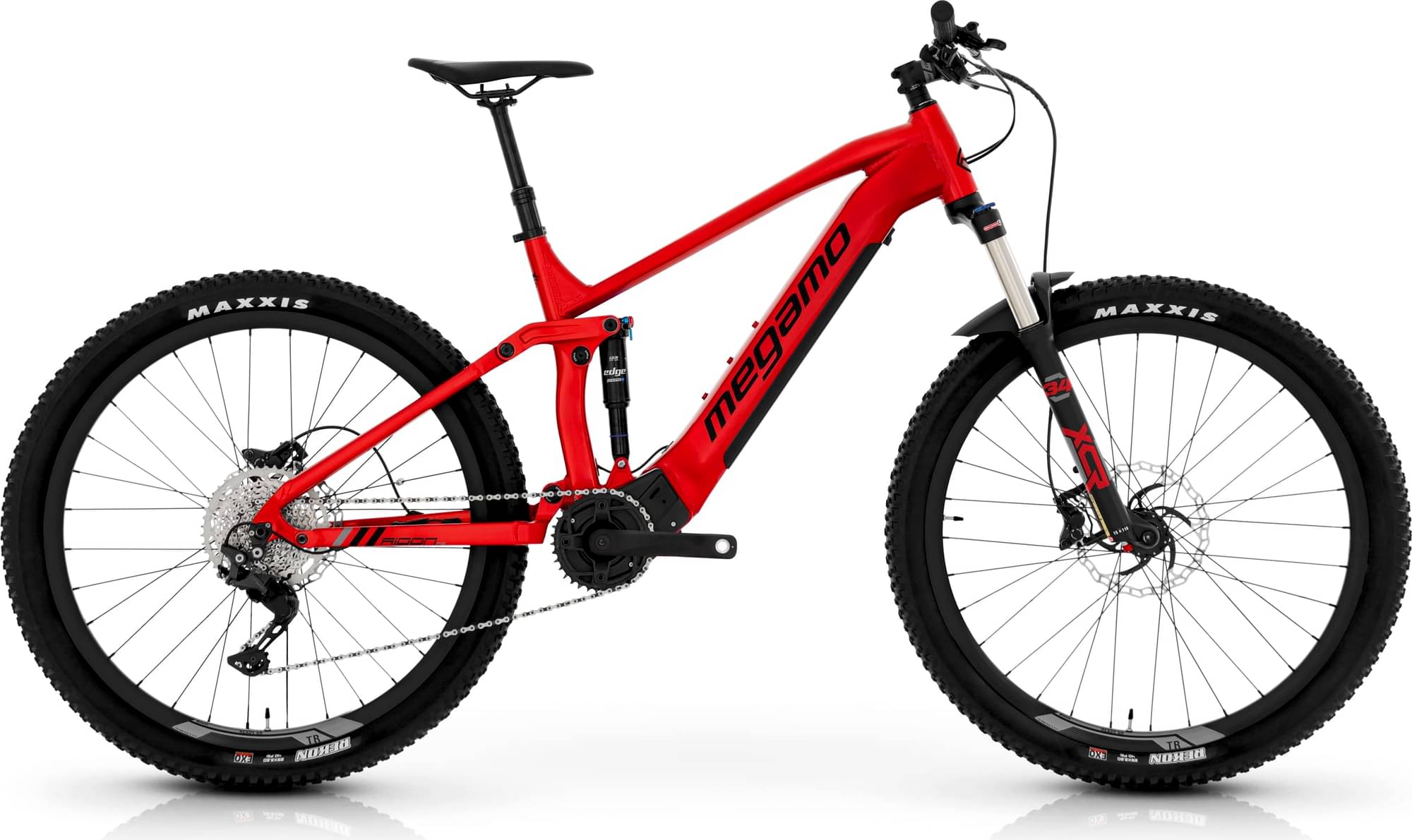

Megamo RIDON FS 630 2024
2024 E-bike
Estimate price |
4,013$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Travel Rear 140mm -
Fork Suntour XCR Air
-
Groupset CUES -
Suspension Full -
Motor 250W 80Nm mid-drive -
Battery Integrated LI-ION Battery, 630 Wh -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Integratted Battery, Alloy e-bike specific frame, 12x148 Boost, Wheel travel: 140 mm
Suspension Fork
Suntour XCR 34 air, E-Bike+, travel 130mm, BOOST 15x110, Mini-Fender included
Rear Shock
Suntour RS18 Edge R TRunnion 205x60
Drivetrain
Rear Derailleur
Shimano CUES 10s
Shift Levers
Shimano CUES 10s
Cassette
Shimano Deore 11-46T
Crank
FSA 36T 104c
Wheels
Rims
29 Asymmetric 15x110 12x148 Boost Wide:30mm Tubeless Ready
Tires
Maxxis Rekon 29 x 2,6 Exo Protection
Brakes
Brakes
Shimano MT420 hydraulic disc 4-Piston, 203mm
Cockpit
Stem
3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Handlebar
Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6º
Headset
FSA Orbit 1,5 E ZS 1-1/8” 1,5”
Seat
Saddle
Megamo Specific E-Bike+ Saddle
Seatpost
Megamo Ø31,8mm Dropper post, remote adjustment
Motor & Battery
Motor
Megamo Central Motor M-PW 80Nm, 250W, Torque Sensor
Battery
Integrated LI-ION Battery, 630 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
