Bike details
Overview
Key information split into simple groups.

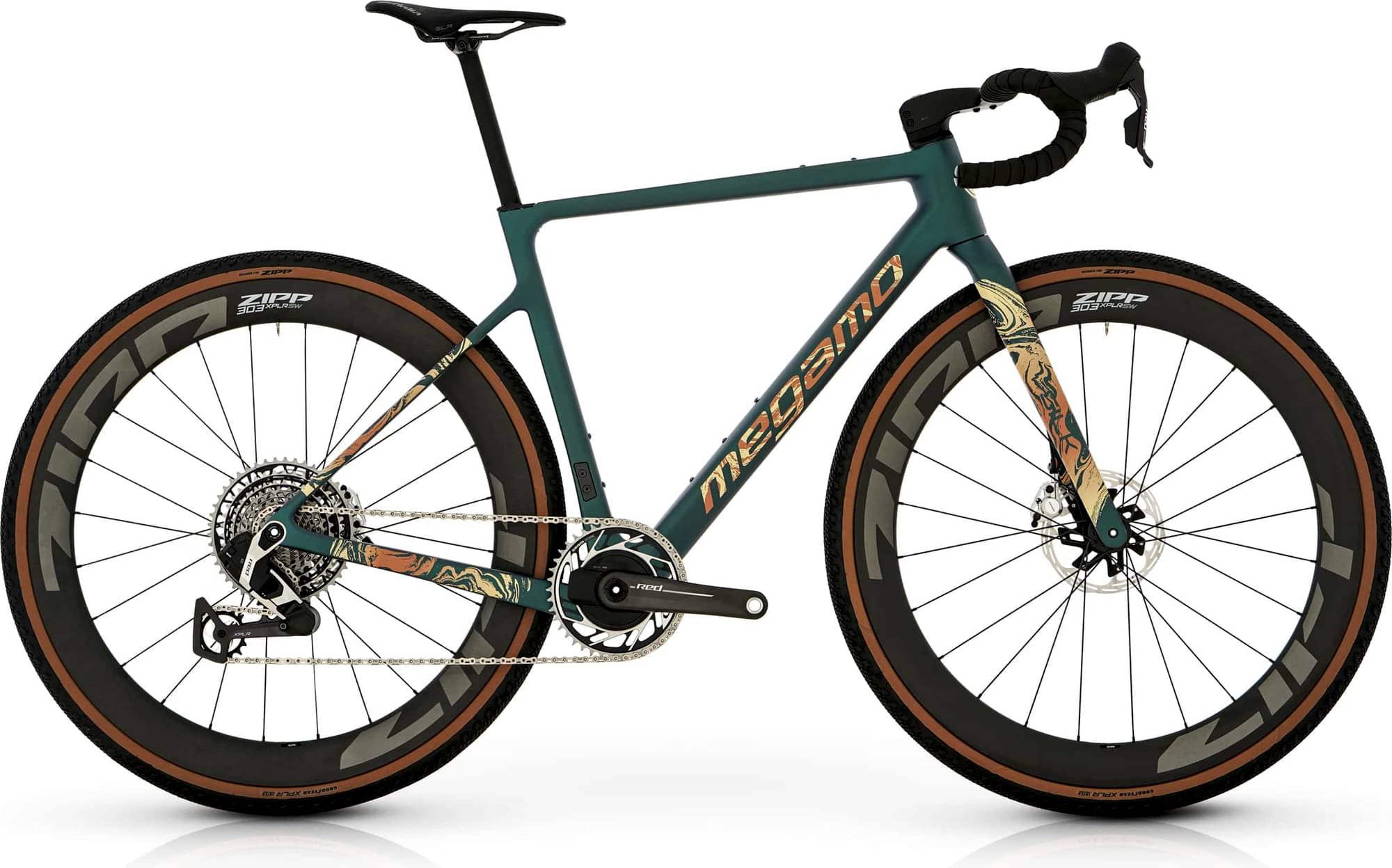

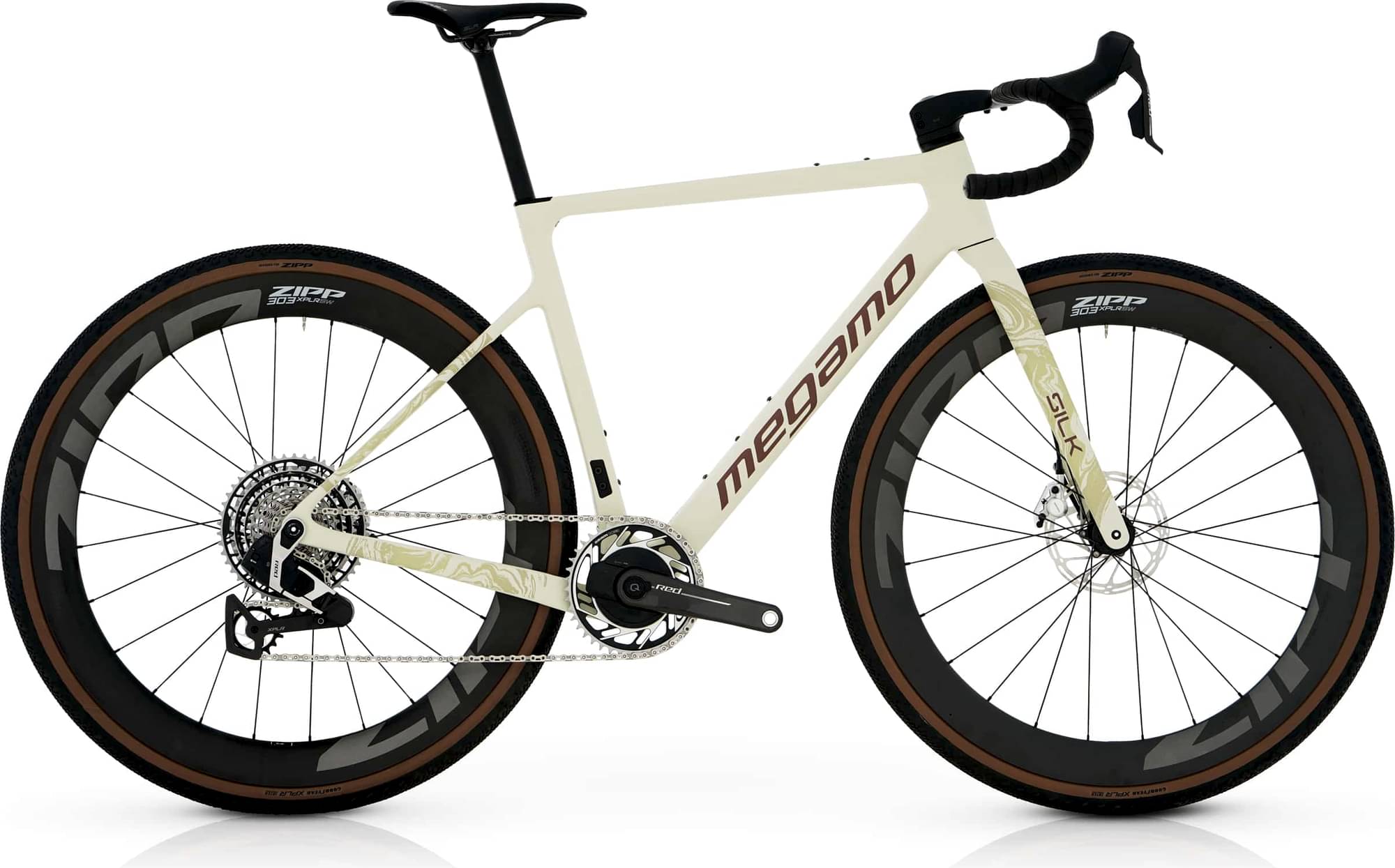

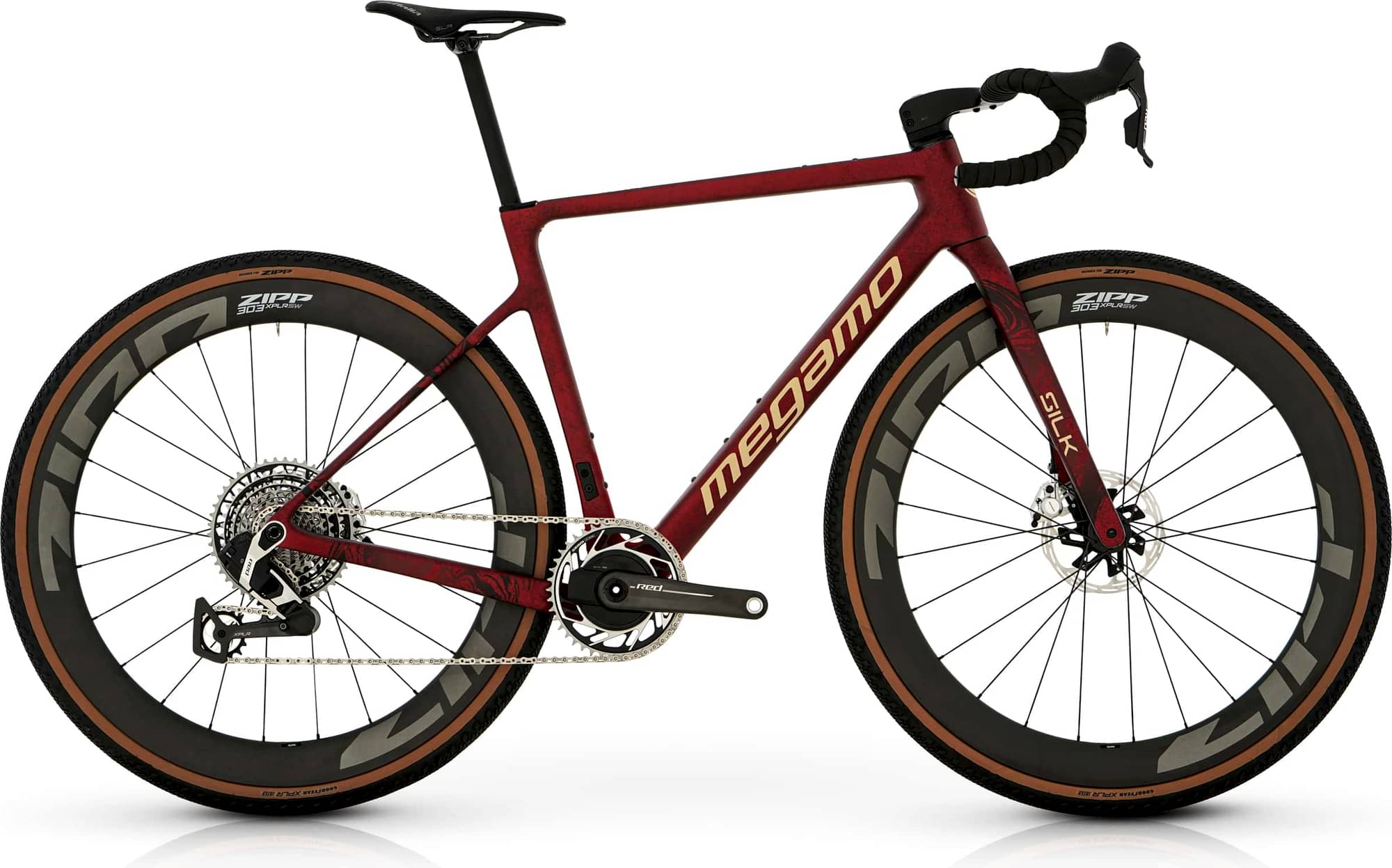

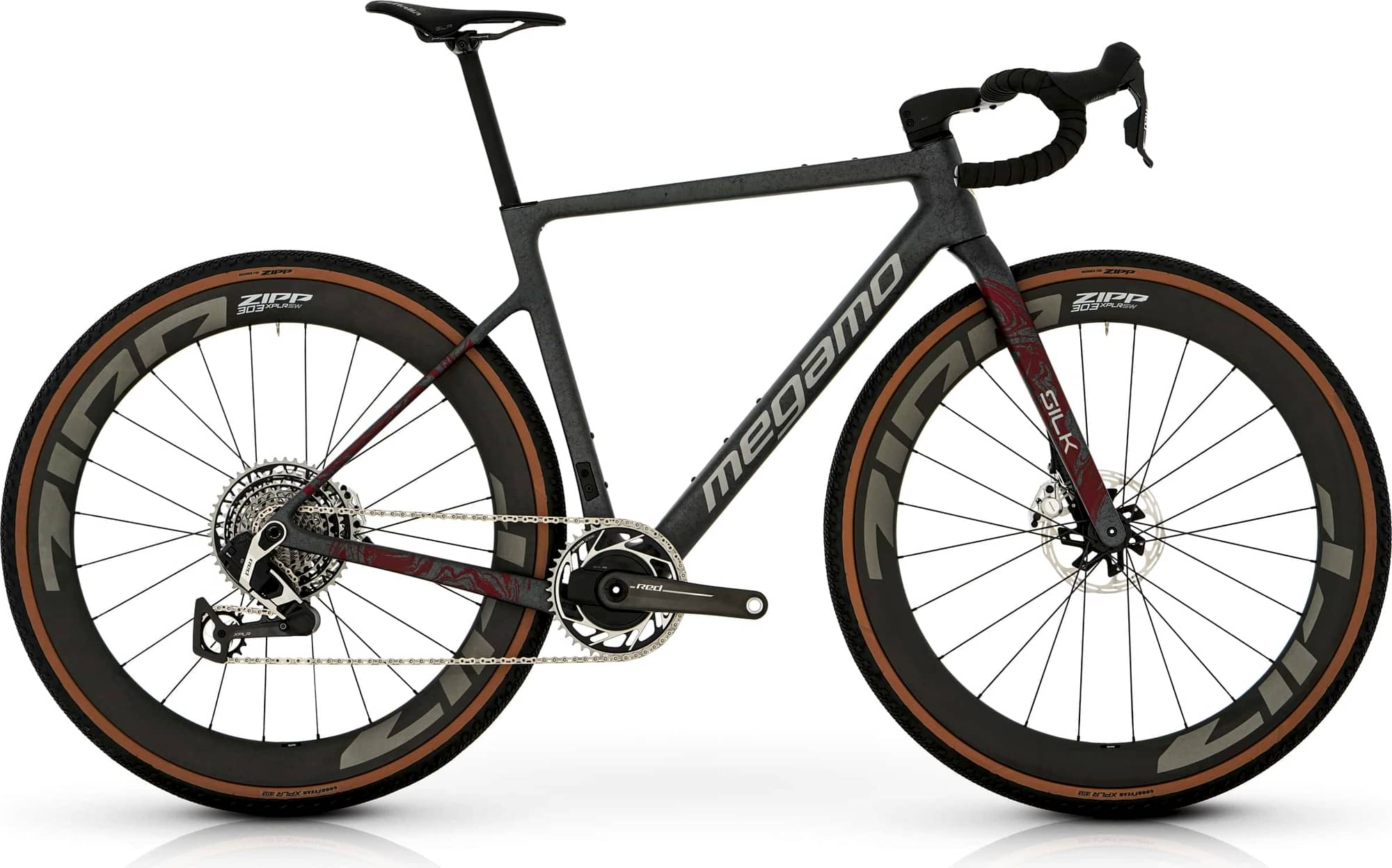

Bike summary
-
-
Frame Carbon -
Groupset RED XPLR eTap -
Suspension Rigid -
Drivetrain 1 × 13 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Advanced Composite Racing Gravel frame, Full Internal Cable Routing, BB86, Flat mount disc 12x142
Suspension Fork
Carbon Advanced Composite Racing Gravel fork, Full Internal Cable Routing, Flat mount disc 12x100
Drivetrain
Rear Derailleur
SRAM Red XPLR AXS 13s
Shift Levers
SRAM Red XPLR AXS 13s
Cassette
SRAM Red XG 1391 XPLR 10-46
Crank
SRAM Red XPLR AXS 13s 42t
Bottom Bracket
BB86/BB92, press-fit
Wheels
Front Hub
Zipp 303 XPLR SW Carbon Tubeless 700c
Rear Hub
Zipp 303 XPLR SW Carbon Tubeless 700c
Rims
Zipp 303 XPLR SW Carbon Tubeless 700c
Tires
Zipp G40 PRB 700x40
Brakes
Brakes
SRAM Red XPLR AXS 13s
Cockpit
Handlebar
Carbon Full Integratted Internal Cable Routing Gravel Racing Handlebar: 70/380 (XS,S), 90/410 (M,L), 110/440 (XL)
Headset
Totally Internal Cable routing
Seat
Saddle
Selle Italia SLR Boost Superflow Carbon
Seatpost
Gravel Advanced Carbon Seat Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.387 mm | 1.401 mm | 1.41 mm | 1.424 mm | 1.454 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 278 mm | 278 mm | 278 mm |
| Front Center | 585 mm | 602 mm | 614 mm | 635 mm | 651 mm |
| Rake | 44 mm | 44 mm | 45 mm | 45 mm | 45 mm |
| Trail | 80 mm | 80 mm | 73 mm | 73 mm | 73 mm |
| Stack | 516 mm | 535 mm | 557 mm | 581 mm | 605 mm |
| Reach | 372 mm | 382 mm | 395 mm | 408 mm | 416 mm |
| Top Tube Length | 515 mm | 535 mm | 555 mm | 580 mm | 595 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 450 mm | 470 mm | 500 mm | 520 mm | 545 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 110 mm | 130 mm | 155 mm | 180 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1000 mm | 1017 mm | 1029 mm | 1050 mm | 1066 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 71 mm | 71 mm | 71 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
