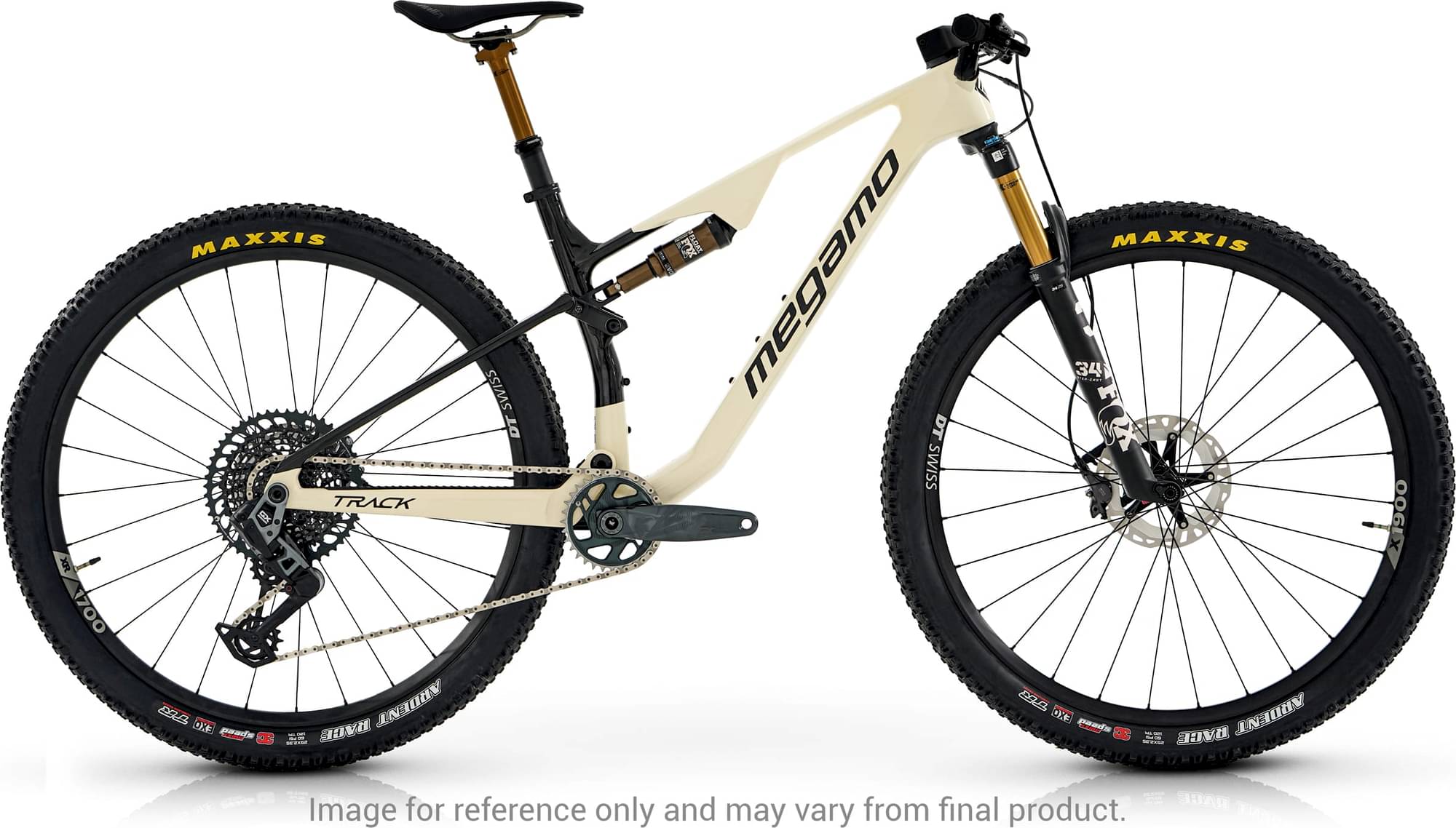

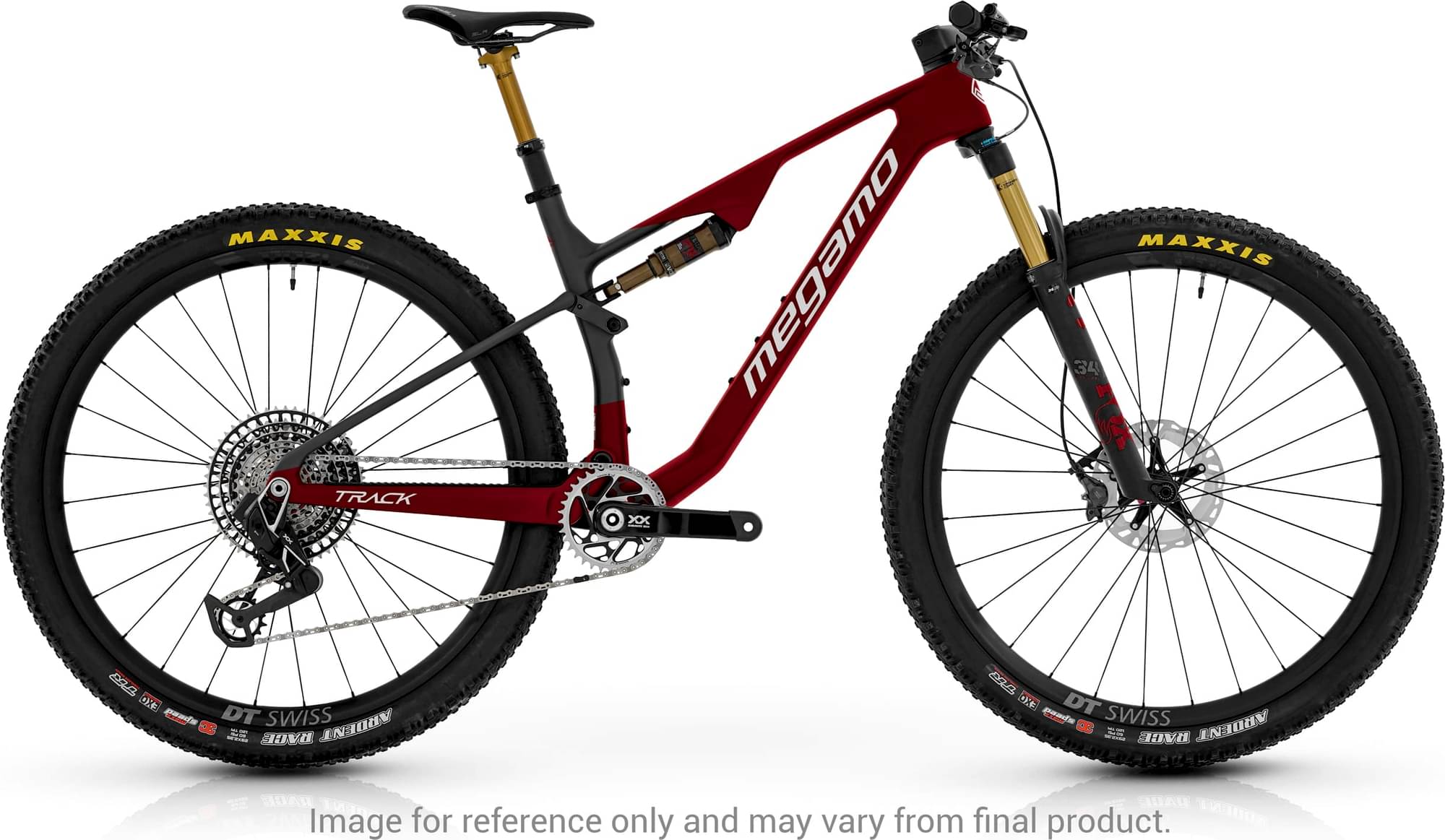

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Fork Fox Performance Float 34 -
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano XT Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm
Suspension Fork
Fox 34 Performance StepCast FIT4 100 mm Remote Lockout, 15x110 Boost
Rear Shock
Fox Float DPS Performance Elite, 3 positions Remote Lockout control, Evol SV Megamo Custom Reb. Adj. Travel 100mm 190x40mm
Drivetrain
Rear Derailleur
SRAM GX Eagle 12s
Shift Levers
SRAM GX Eagle 12s
Cassette
SRAM GX Eagle 12s 10-52t
Crank
SRAM GX Eagle 12s 32t
Bottom Bracket
BB86/BB92, press-fit
Wheels
Rims
DT Swiss X 1900
Tires
Maxxis Ardent Race 29x2,35 - Tubeless Ready, EXO, 3C Maxx Speed, Foldable, 120tpi, Pirelli Scorpion XC H 29x2,4 ProWall - Tubeless Ready, 120tpi
Brakes
Brakes
Shimano XT 8100
Cockpit
Handlebar
Full Integrated Carbon handlebar Megamo
Headset
Integrated Full Internal Cable Routing
Seat
Saddle
Selle Italia Shortfit Open-fit Start Up 144
Seatpost
Megamo Alloy 31,6
