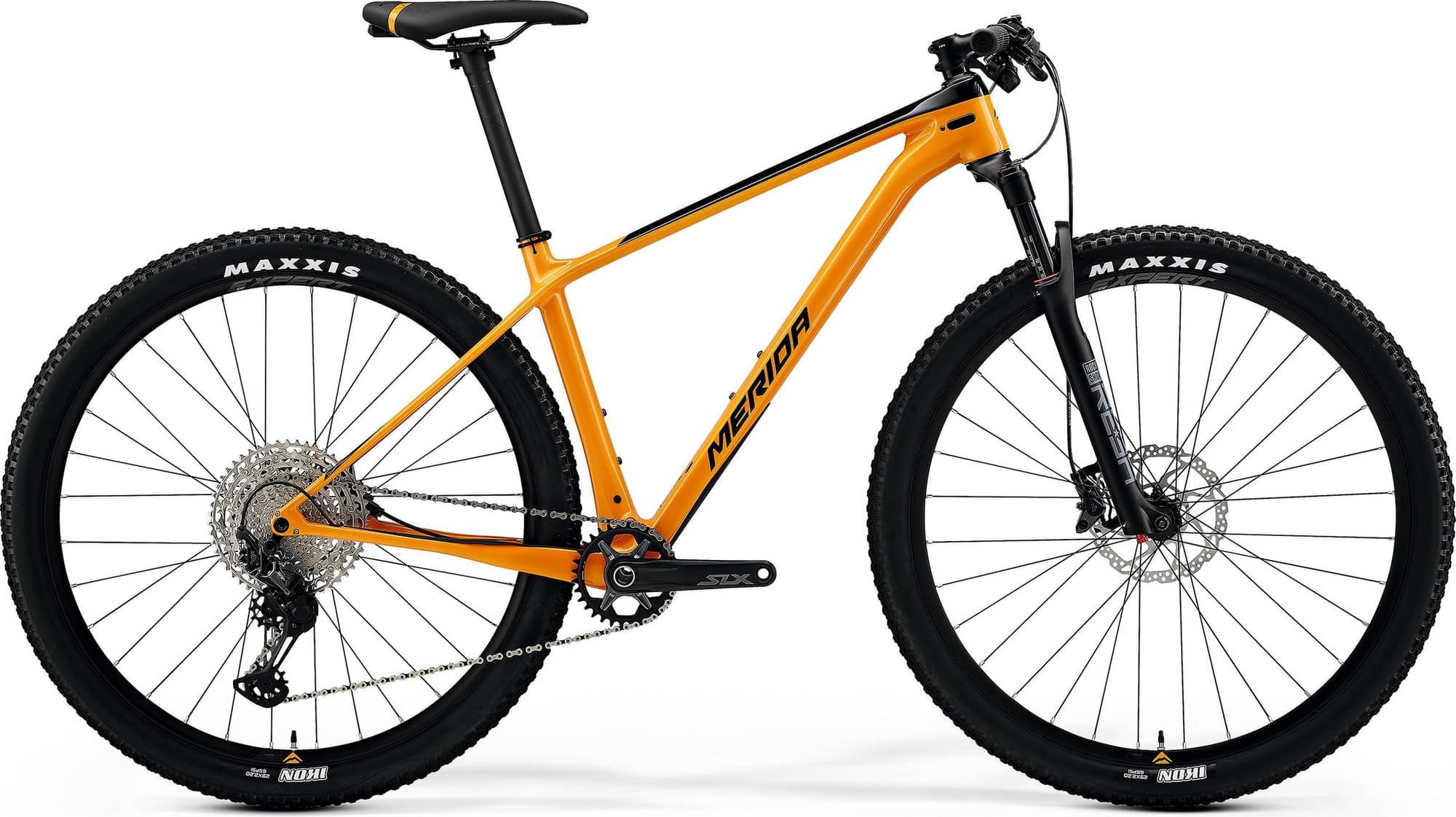

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE CF3, material: carbon, 29x2.25" max. wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Suspension Fork
Rock Shox Reba RL, Air, 100mm suspension travel, Tapered, Remote lockout, 51mm fork offset
Drivetrain
Rear Derailleur
Shimano XT M8100 Shadow+, SGS
Shift Levers
Shimano SLX
Cassette
Shimano Deore M6100, 10-51 teeth, 12 speed
Crank
Shimano SLX, 32 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X12
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT410-B, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA EXPERT CC, 22.8mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Double Butted Black stainless
Tires
Maxxis Ikon, 29x2.2", wire
Brakes
Brakes
Shimano M6100, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 760mm width, flat
Headset
FSA NO.55E
Seat
Saddle
MERIDA COMP SL, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT CC, material: carbon, 30.9mm diameter, 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.535 mm | 1.477 mm | 1.441 mm | 1.421 mm | 1.419 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 655 mm | 676 mm | 696 mm | 717 mm | 738 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 617 mm | 622 mm | 631 mm | 645 mm | 664 mm |
| Reach | 402 mm | 421 mm | 438 mm | 454 mm | 468 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm | 645 mm | 665 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 444 mm | 483 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm | 145 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1080 mm | 1101 mm | 1121 mm | 1142 mm | 1163 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 681 mm | 744 mm | 778 mm | 819 mm | 842 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
