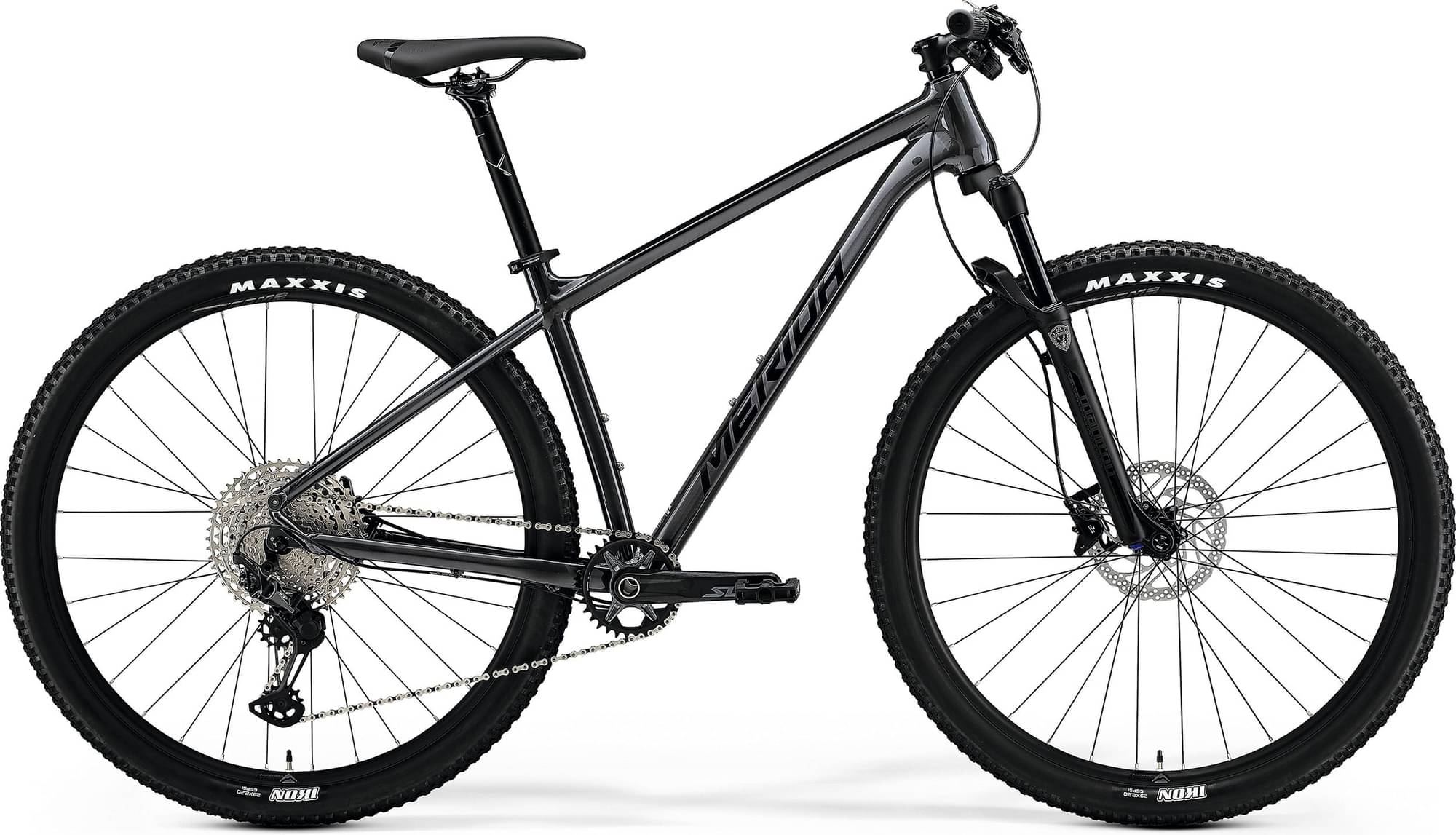

Merida BIG.NINE SLX-EDITION 2024
2024 Mountain
Estimate price |
1,417$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Manitou Markhor
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE TFS III, material: aluminum, 29x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard, Smooth welding
Suspension Fork
Manitou Markhor Comp, Air, 100mm suspension travel, Tapered, Remote lockout, 51mm fork offset
Drivetrain
Rear Derailleur
Shimano XT M8100 Shadow+, SGS
Shift Levers
Shimano SLX
Cassette
Shimano Deore M6100, 10-51 teeth, 12 speed
Crank
Shimano SLX, 32 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X12
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT401, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Ikon, 29x2.2", wire
Brakes
Brakes
Shimano M4100, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 760mm width, flat
Headset
MERIDA M2331
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.607 mm | 1.578 mm | 1.551 mm | 1.529 mm | 1.506 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 636 mm | 657 mm | 677 mm | 698 mm | 719 mm |
| Rake | 46 mm | 46 mm | 45 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 88 mm | 87 mm | 87 mm |
| Stack | 614 mm | 628 mm | 642 mm | 656 mm | 670 mm |
| Reach | 382 mm | 398 mm | 414 mm | 429 mm | 445 mm |
| Top Tube Length | 570 mm | 590 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 430 mm | 470 mm | 510 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1069 mm | 1090 mm | 1110 mm | 1131 mm | 1152 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 679 mm | 727 mm | 763 mm | 800 mm | 843 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
