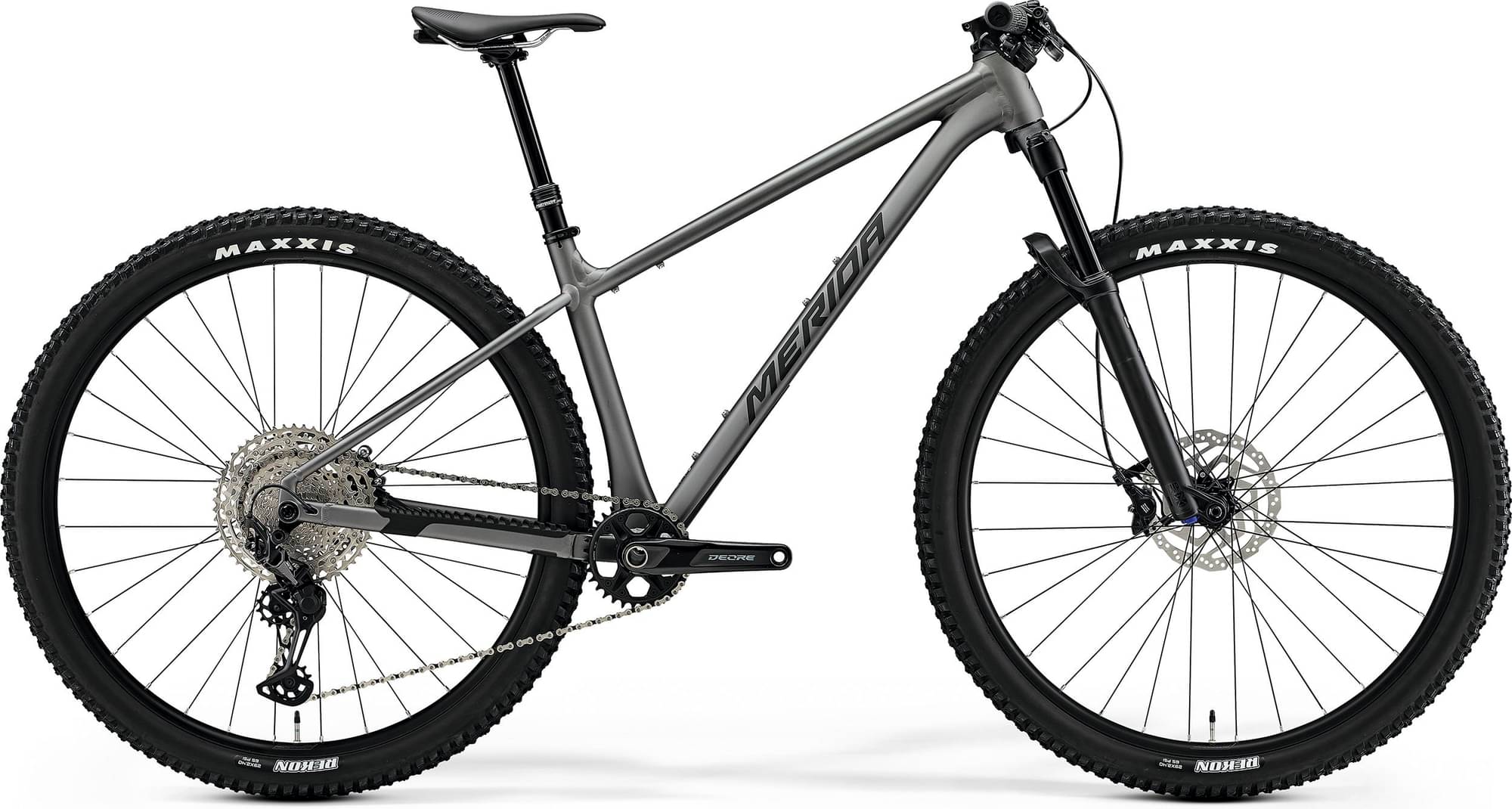

Merida BIG.NINE TR LIMITED 2025
2025 Mountain
Estimate price |
1,660$
Weight | 13 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Manitou Machete Comp
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE TR LITE III, material: aluminium, 29x2.4" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard
Suspension Fork
Manitou Machete Comp, Air, 120mm suspension travel, Tapered, 44 mm fork offset
Drivetrain
Rear Derailleur
Shimano XT, SGS
Shift Levers
Shimano Deore M6100
Cassette
Shimano Deore M6100, 10-51 teeth, 12 speed
Crank
Shimano Deore M6100, 32 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X12
Wheels
Front Hub
Shimano TC500-B, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TC500-MS-B, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP CC II, 25mm inner width, material: aluminium, tubeless ready
Spokes
Double Butted Black stainless
Tires
Maxxis Rekon, 29x2.4", wire
Brakes
Brakes
Shimano SLX M7100 / Shimano SLX M7110, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 760mm width, flat
Headset
Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing
Seat
Saddle
MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, XS 100mm travel seatpost - S 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.462 mm | 1.395 mm | 1.357 mm | 1.319 mm |
| Bottom Bracket Height | 317 mm | 317 mm | 317 mm | 317 mm |
| Front Center | 708 mm | 728 mm | 752 mm | 775 mm |
| Rake | 44 mm | 44 mm | 44 mm | 43 mm |
| Trail | 112 mm | 112 mm | 112 mm | 113 mm |
| Stack | 614 mm | 614 mm | 624 mm | 633 mm |
| Reach | 420 mm | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 594 mm | 614 mm | 637 mm | 659 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 66.9 ° | 66.9 ° | 66.9 ° | 66.9 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1132 mm | 1152 mm | 1176 mm | 1199 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 712 mm | 713 mm | 715 mm | 723 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
