Merida BIG.SEVEN 10-D (3X) 2024

2024 Mountain
Estimate price | 517$
Open compare Use advisor

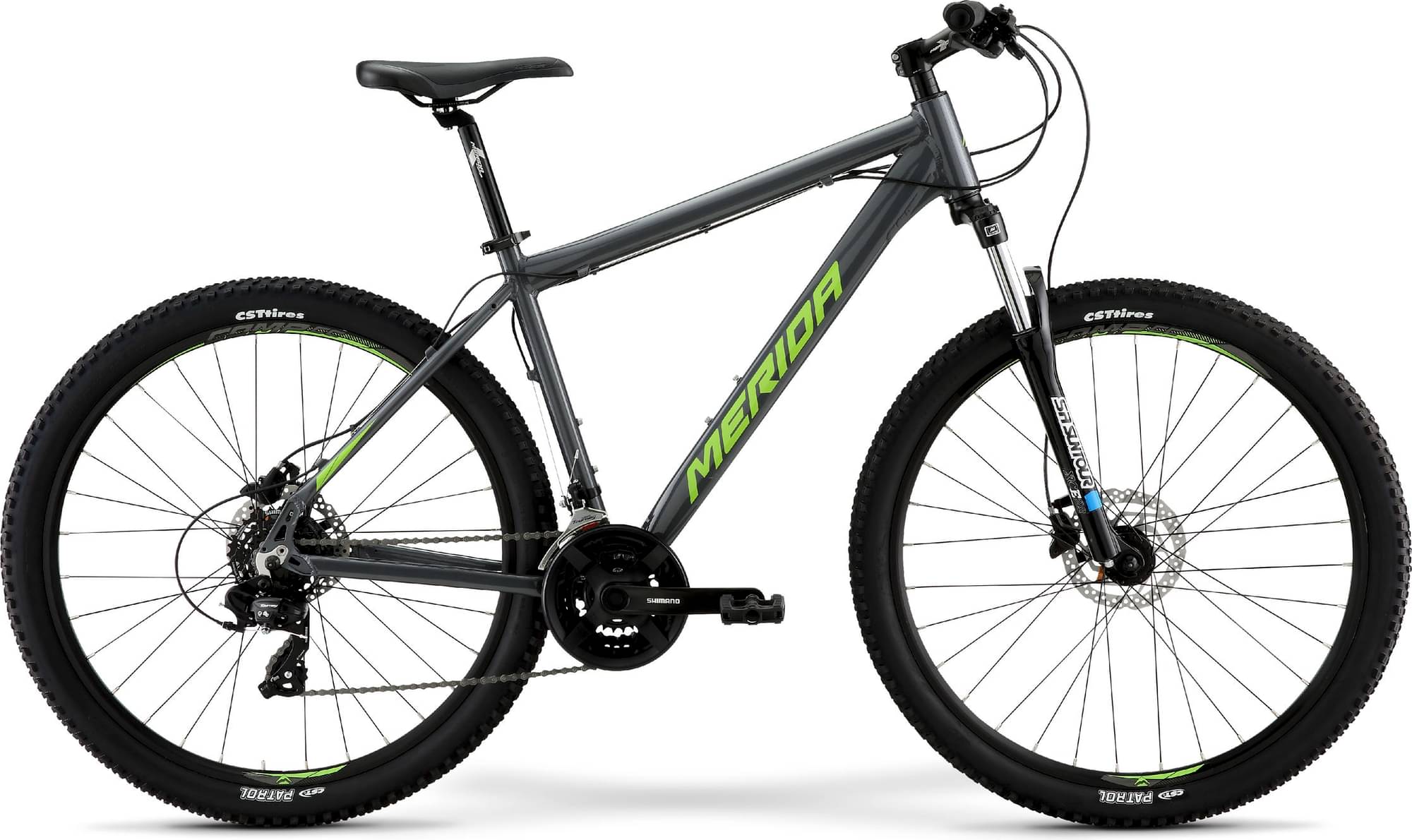

Merida Big.seven 10 D 3x 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Travel Front 100mm
  • Fork Suntour XCE
  • Groupset Tourney, Altus
  • Suspension Hardtail
  • Drivetrain 2 × 7
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • XS

    151cm - 164cm

  • SM

    159cm - 170cm

  • MD

    165cm - 177cm

  • LG

    171cm - 184cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

BIG.SEVEN SPEED

Suspension Fork

Suntour XCE28; Coil; 100 STR

Drivetrain

Rear Derailleur

Shimano TY300, TOURNEY

Front Derailleur

Shimano TY300, TOURNEY

Shift Levers

Shimano SL M310

Cassette

Shimano CS-HG200-12-32, 7s

Crank

Samox SAC26-526P; 24-34-42 ATC

Chain

CN-7s

Wheels

Front Hub

Alloy Disc, Quick Release

Rear Hub

Alloy Disc, Quick Release

Rims

MERIDA double D, alloy

Tires

CST PATROL (27.5x2.25")

Brakes

Brakes

JAK (Y2-1) Hydraulic Disc Brakes

Cockpit

Handlebar

MERIDA Comp

Headset

A-Head OS

Seat

Saddle

Merida Comfort DDK-200

Seatpost

MERIDA Speed

Fit data

Geometry

Numbers for sizing and ride feel.

SizeXSSMMDLG
Stack Reach Ratio
1.586 mm1.561 mm1.566 mm1.563 mm
Bottom Bracket Height
302 mm302 mm302 mm302 mm
Front Center
618 mm629 mm633 mm643 mm
Rake
42 mm42 mm42 mm42 mm
Trail
85 mm85 mm81 mm81 mm
Stack
593 mm598 mm609 mm619 mm
Reach
374 mm383 mm389 mm396 mm
Top Tube Length
550 mm560 mm575 mm585 mm
Seat Tube Angle
73.5 °73.5 °73 °73 °
Seat Tube Length
343 mm381 mm432 mm470 mm
Head Tube Angle
70 °70 °70.5 °70.5 °
Head Tube Length
100 mm105 mm115 mm125 mm
Chainstay Length
430 mm430 mm430 mm430 mm
Wheelbase
1042 mm1053 mm1057 mm1068 mm
Bottom Bracket Drop
53 mm53 mm53 mm53 mm
Standover Height
650686 mm731 mm764 mm
Wheels27"27"27"27"
Rider Min Height151 cm159 cm165 cm171 cm
Rider Max Height164 cm170 cm177 cm184 cm
