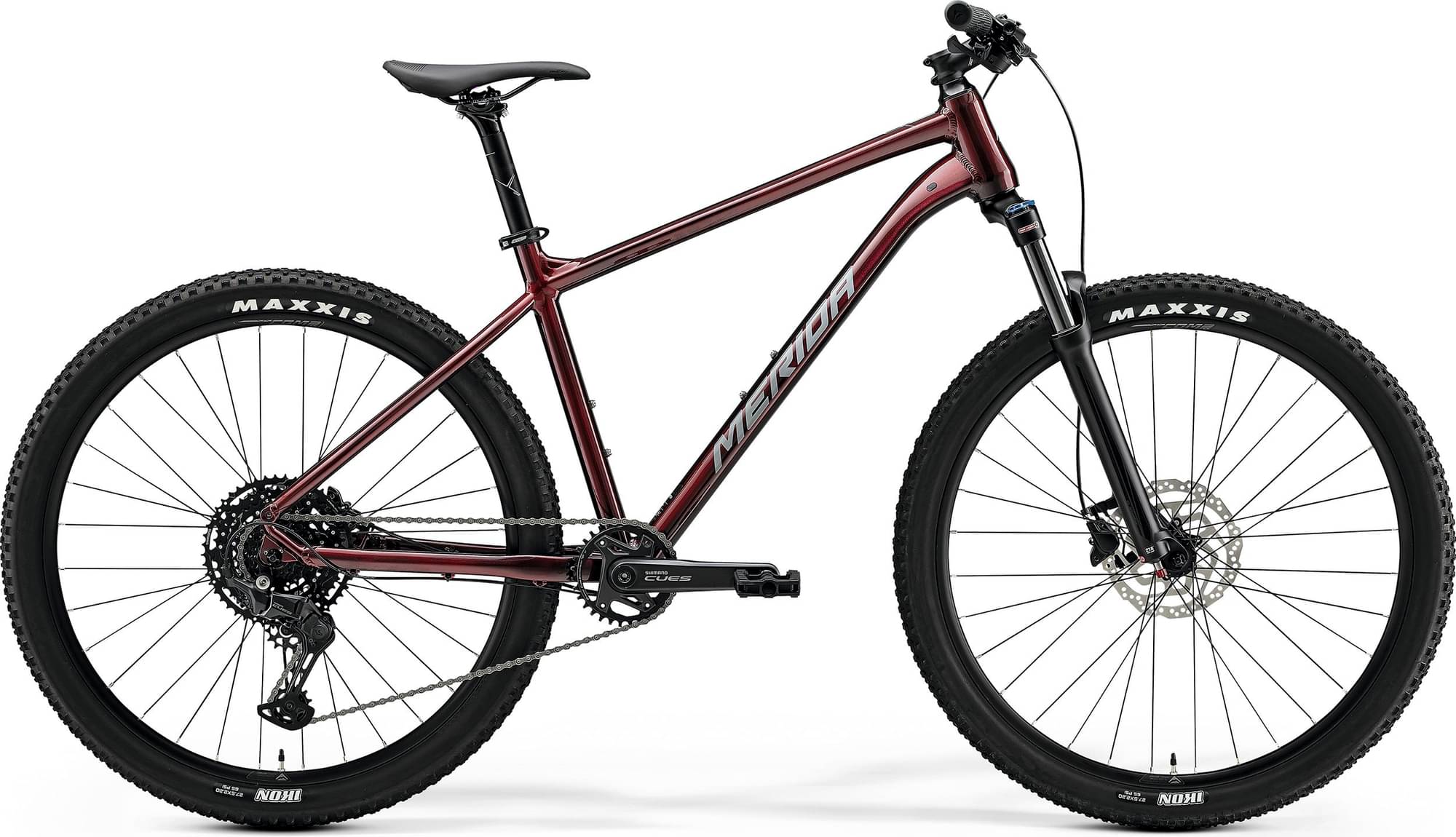

Merida BIG.SEVEN 200 2025
2025 Mountain
Estimate price |
857$
Weight | 13.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN TFS IV, material: aluminium, 27.5 wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Suspension Fork
Suntour XCR LOR, Air, 100mm suspension travel, Lockout, 42mm fork offset
Drivetrain
Rear Derailleur
Shimano CUES U6000, GS
Shift Levers
Shimano CUES U6000
Cassette
Shimano LG300, 11-48 teeth, 10 speed
Crank
Shimano CUES U6000, 32 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
Shimano MT500
Chain
KMC xGlide
Pedals
VP VPE-891
Wheels
Front Hub
Shimano QC300, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano QC300-HM, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Ikon, 27.5x2.2", wire
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise
Headset
MERIDA M2346 Neck
Seat
Saddle
MERIDA COMP SL, 25% recycled material, V-mount, incl. MERIDA minitool
Seatpost
MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS |
|---|---|
| Stack Reach Ratio | 1.489 mm |
| Bottom Bracket Height | 325 mm |
| Front Center | 628 mm |
| Rake | 41 mm |
| Trail | 93 mm |
| Stack | 563 mm |
| Reach | 378 mm |
| Top Tube Length | 550 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 340 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 100 mm |
| Chainstay Length | 430 mm |
| Wheelbase | 1056 mm |
| Bottom Bracket Drop | 30 mm |
| Standover Height | 649 mm |
| Wheels | 27" |
| Rider Min Height | 151 cm |
| Rider Max Height | 164 cm |
