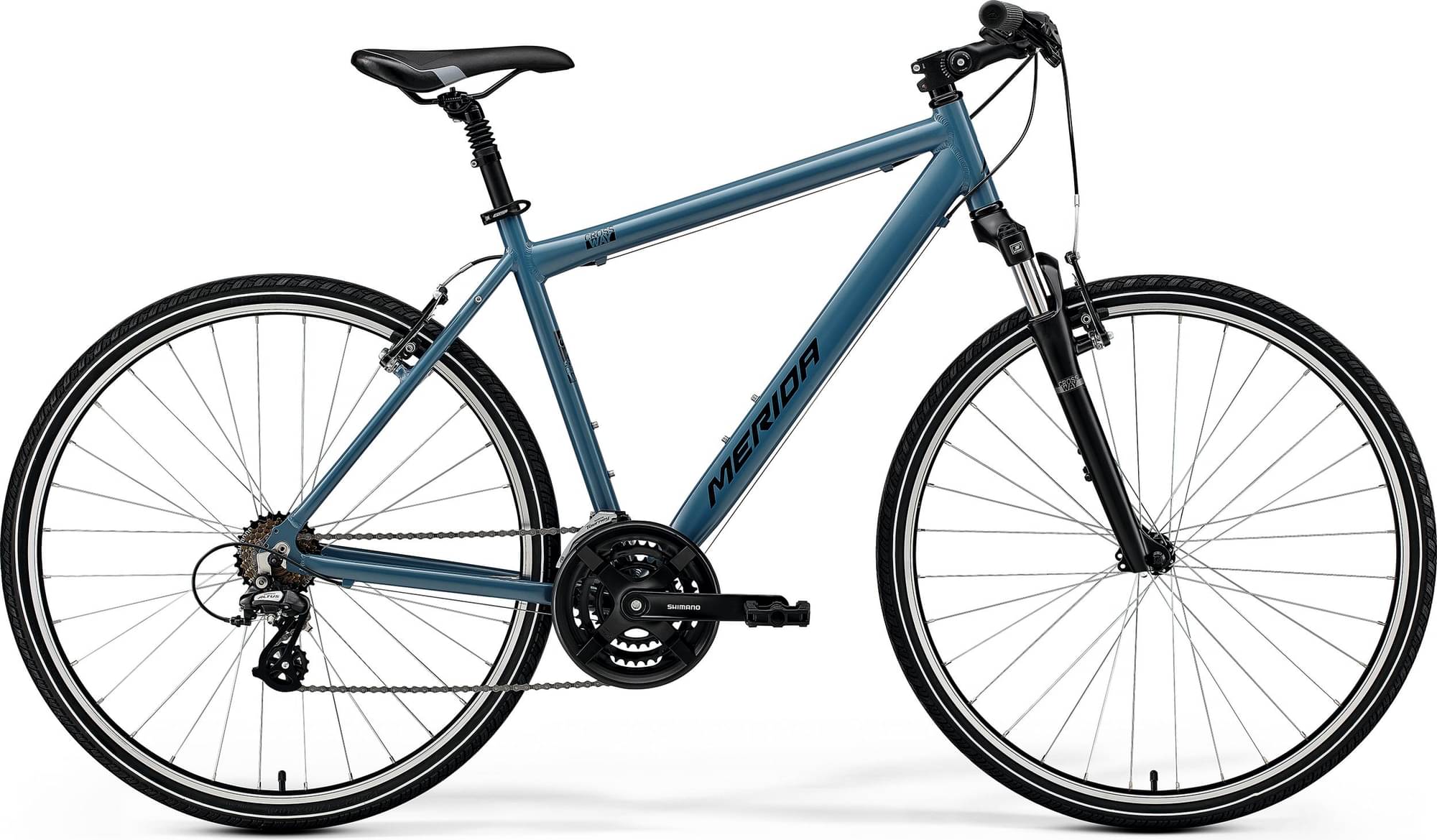

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Travel Rear 63mm -
Fork Suntour NEX
-
Groupset Tourney, Altus -
Suspension Full -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY DT, 63mm suspension travel, material: aluminium, 700x42C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Suspension Fork
SR Suntour NEX, Coil, 63mm suspension travel, 700x50C max. wheelsize
Drivetrain
Rear Derailleur
Shimano RD-M310
Front Derailleur
Shimano FD-TY510-3
Shift Levers
Shimano ST-EF500-L / Shimano ST-EF500-7R
Cassette
Shimano MF-TZ500, 14-28 teeth, 7 speed
Crank
Shimano TY301, 48-38-28 teeth, MAT Aluminium, 170 mm-XXS/XS/S, 175 mm-M up
Bottom Bracket
FSA TH-7420ST, 68-124
Chain
SunRace CNM 84
Pedals
VP VPE-891
Wheels
Front Hub
Joytech JY-751DSE / Joytech JY-752DSE, 100x9mm width front hub, 32 spoke holes, 135x9mm width rear hub, 32 spoke holes
Rear Hub
Joytech JY-751DSE / Joytech JY-752DSE, 100x9mm width front hub, 32 spoke holes, 135x9mm width rear hub, 32 spoke holes
Rims
MERIDA CC, 17mm inner width, material: aluminium
Spokes
Steel UCP
Tires
Front: MERIDA K1171, 700x40C, wire, Rear: MERIDA K1171, 700x40C, wire
Brakes
Brakes
Promax MTV-117A, V-brake
Cockpit
Stem
MERIDA TK, material: aluminium, 25.4mm diameter, adjustable, 110 mm all sizes
Handlebar
MERIDA CC, material: steel, 620mm width, 30mm rise
Headset
FSA TH888
Seat
Saddle
MERIDA Cross Sport
Seatpost
MERIDA TK, 27.2mm diameter, 13mm setback, 40mm seatpost suspension travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD/LG | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.509 mm | 1.476 mm | 1.494 mm |
| Front Center | 631 mm | 646 mm | 650 |
| Rake | 51 mm | 50 mm | 50 mm |
| Trail | 63 mm | 61 mm | 61 mm |
| Stack | 599 mm | 611 mm | 620 mm |
| Reach | 397 mm | 414 mm | 415 mm |
| Top Tube Length | 575 mm | 595 mm | 605 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 460 mm | 520 mm | 550 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1072 mm | 1087 mm | 1091 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 727 mm | 774 mm | 798 mm |
| Wheels | 700 | 700 | 700 |
