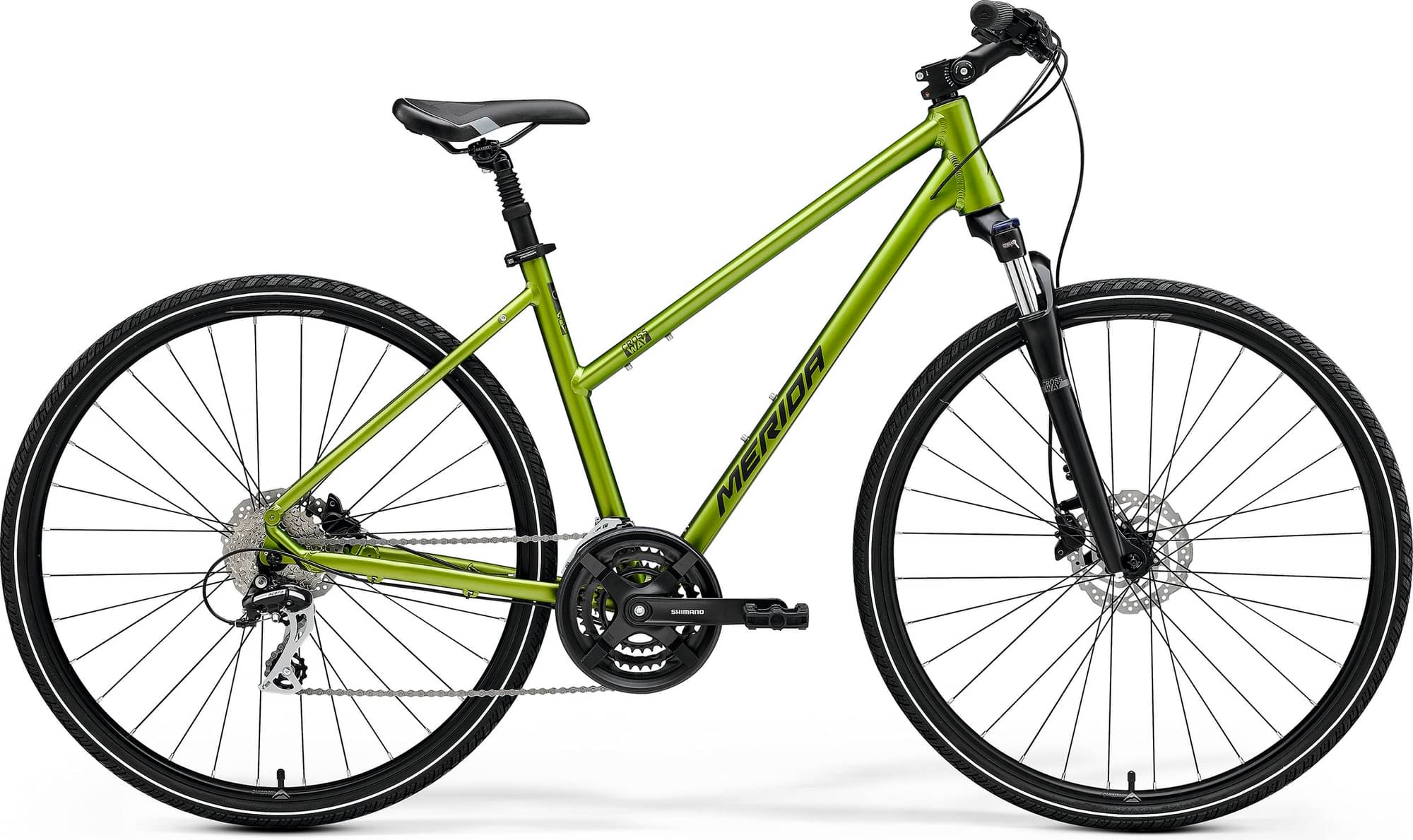

Merida CROSSWAY L 20-D 2024
2024 Urban
Estimate price |
928$
Weight | 13.88 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Tourney, Acera -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY L TFS III, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard, MUK 5 Hanger
Suspension Fork
Suntour NEX HLO, Coil, 63mm suspension travel, lockout, 700x50C max. wheelsize
Drivetrain
Rear Derailleur
Shimano RD-M360
Front Derailleur
Shimano FD-TY710
Shift Levers
Shimano ST-EF505
Cassette
Sunrace CSM668, 11-32 teeth, 8 speed
Crank
Shimano TY301, 48-38-28 teeth, 170 mm-XXS/SM, 175 mm-ML/XXL
Bottom Bracket
FSA TH-7420ST-W, Cartridge Bearing
Chain
Sunrace M84
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA CC, 17mm inner width, material: aluminium
Spokes
Black steel
Tires
Front: MERIDA K1171, 700x40C, wire, Rear: MERIDA K1171, 700x40C, wire
Brakes
Brakes
Power DS100
Cockpit
Stem
MERIDA TK, material: aluminium, 25.4mm diameter, adjustable, 100 mm all sizes
Handlebar
MERIDA CC, material: aluminium, 660mm width, 25mm rise
Headset
FSA TH888/NO.10
Seat
Saddle
MERIDA Cross Sport
Seatpost
MERIDA TK, 27.2mm diameter, 13mm setback, 40mm seatpost suspension travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.602 mm | 1.606 mm | 1.617 mm |
| Front Center | 630 mm | 634 mm | 645 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 79 mm | 76 mm | 76 mm |
| Stack | 620 mm | 631 mm | 645 mm |
| Reach | 387 mm | 393 mm | 399 mm |
| Top Tube Length | 565 mm | 580 mm | 590 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1081 mm | 1085 mm | 1096 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 639 mm | 639 mm | 639 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
