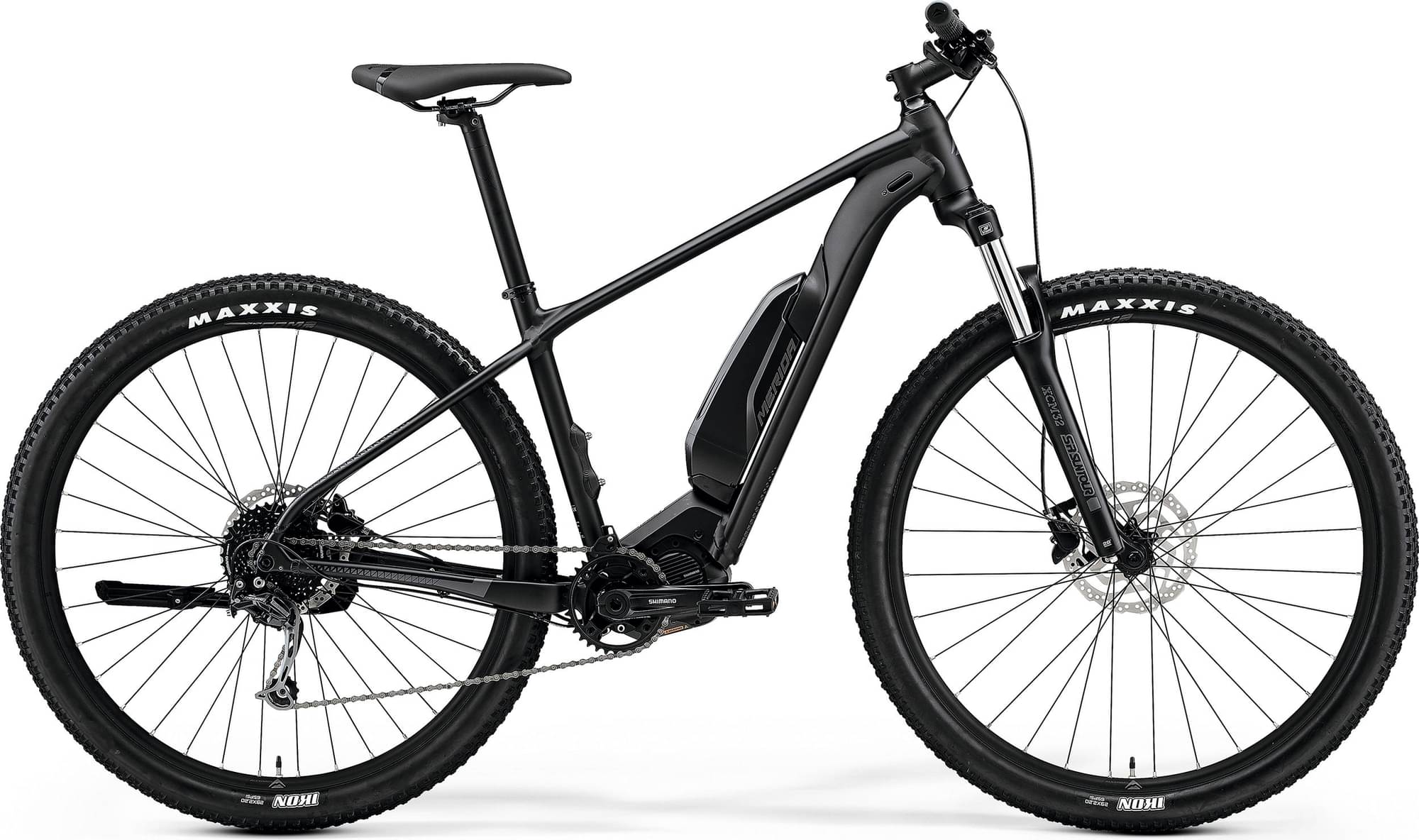

Merida eBIG.NINE 300 SE 2024
2024 E-bike
Estimate price |
2,835$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8010, 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.NINE LITE, material: aluminium *max. wheelsize 29x2.20" without fender max./ 29"x2.00" with fender max. wheelsize, 148x12mm axle standard, external
Suspension Fork
SR Suntour XCM32 DS, Coil, 100mm, Tapered, 47mm fork offset, 29x2.4" max wheelsize
Drivetrain
Rear Derailleur
Shimano Alivio M3100, SGS
Shift Levers
Shimano Alivio
Cassette
Shimano HG200, 11-36 teeth, 9 speed
Crank
Shimano CRE70-B, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC e9S
Wheels
Front Hub
Shimano MT400, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Ikon, 29x2.2", kevlar bead
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise
Headset
MERIDA 2341
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT, material: aluminium, 30.9mm diameter, 15mm setback
Motor & Battery
Motor
Shimano E7000, 60Nm
Battery
Shimano E8010, 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.577 mm | 1.531 mm | 1.492 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 673 mm | 693 mm | 714 mm |
| Rake | 51 mm | 50 mm | 51 mm |
| Trail | 86 mm | 87 mm | 86 mm |
| Stack | 634 mm | 643 mm | 652 mm |
| Reach | 402 mm | 420 mm | 437 mm |
| Top Tube Length | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1123 mm | 1143 mm | 1164 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 733 mm | 777 mm | 819 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
