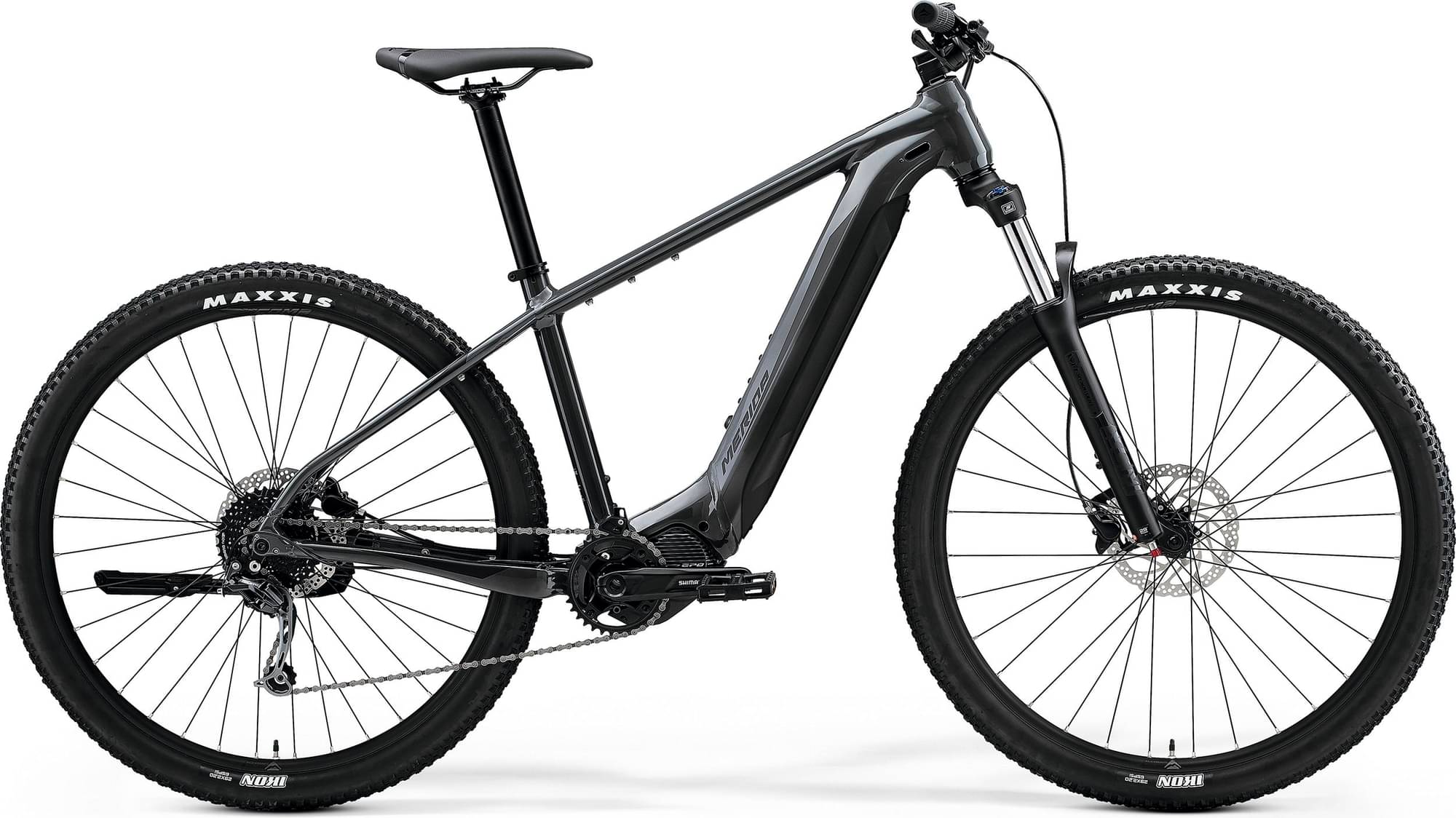

Merida eBIG NINE 400 (EP6) 2024
2024 E-bike
Estimate price |
4,403$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 600W 85Nm mid-drive -
Battery Shimano EN806, 630Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.NINE LITE III, material: aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize, 148x12mm axle standard, intube
Suspension Fork
Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5120, SGS
Shift Levers
Shimano Deore M4100
Cassette
Shimano M4100, 11-46 teeth, 10 speed
Crank
Shimano CRE70-B, 34 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e10s
Pedals
VP VPE-537
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Tires
Front: Maxxis Ikon, 29x2.2", kevlar bead, Rear: Maxxis Ikon, 29x2.2", kevlar bead
Brakes
Brakes
Shimano MT-200, 2 piston
Cockpit
Stem
MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, GoPro & Supernova mount, 50 mm all sizes
Handlebar
MERIDA MERIDA TEAM TR, 760mm width, 18mm rise
Headset
MERIDA-8157
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano EP6, 85Nm
Battery
Shimano EN806, 630Wh
Charger
Shimano EC-E6002, 2A charging current
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.547 mm | 1.499 mm | 1.461 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Front Center | 707 mm | 725 mm | 746 mm |
| Rake | 51 mm | 52 mm | 51 mm |
| Trail | 100 mm | 99 mm | 100 mm |
| Stack | 636 mm | 640 mm | 650 |
| Reach | 411 mm | 427 mm | 445 mm |
| Top Tube Length | 588 mm | 605 mm | 625 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 115 mm | 120 mm | 130 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1165 mm | 1183 mm | 1204 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Standover Height | 719 mm | 750 mm | 794 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
