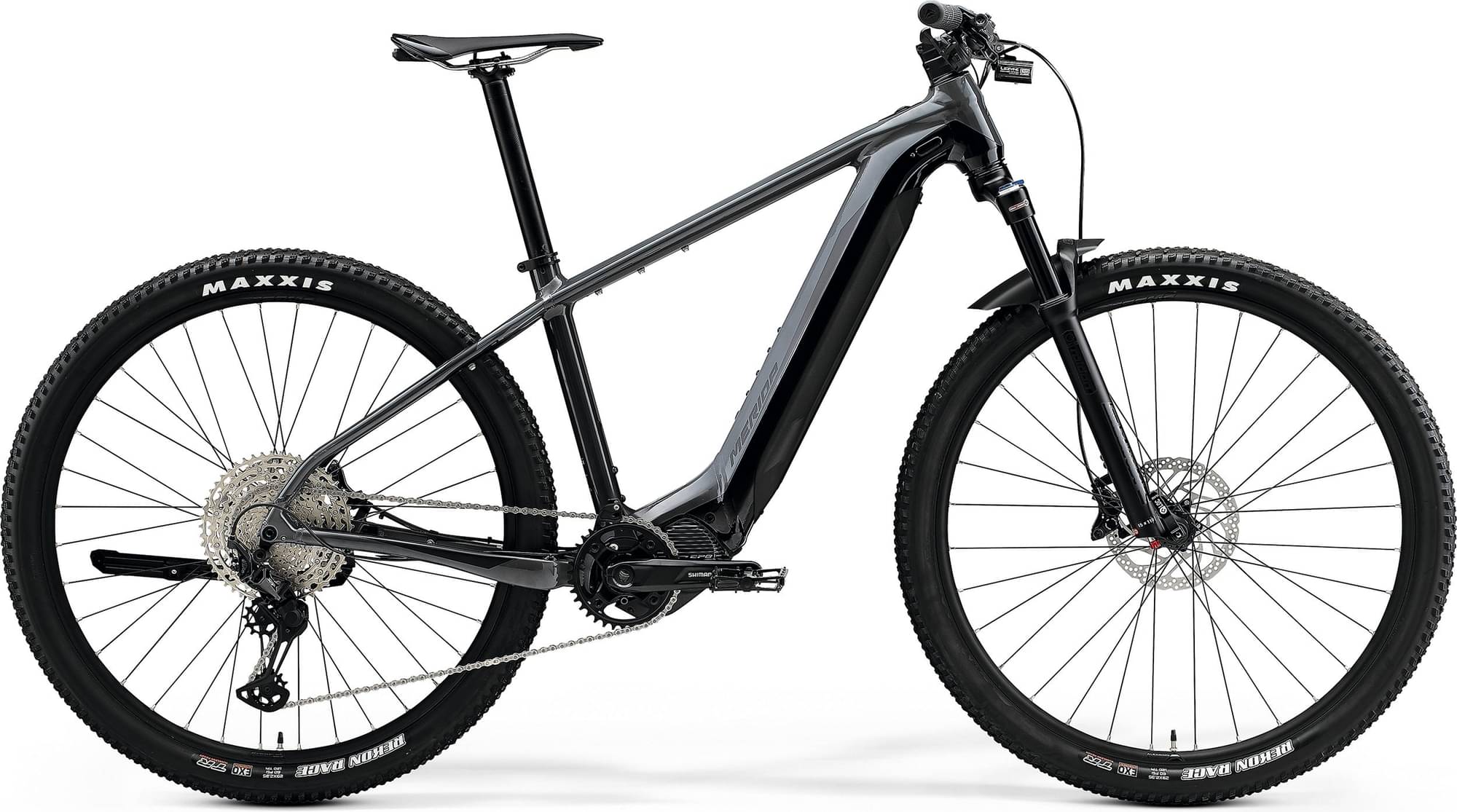

Merida eBIG.NINE 700 2024
2024 E-bike
Estimate price |
4,003$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour RAIDON
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Shimano 85Nm mid-drive -
Battery Shimano E8036, 630Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.NINE LITE III, material: aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize, 148x12mm axle standard, intube
Suspension Fork
SR Suntour RAIDON34 LOR, Air, 100mm suspension travel, Tapered, 51mm fork offset, 29x2.4" max wheelsize
Drivetrain
Rear Derailleur
Shimano XT RDM8100 Shadow+ 12
Shift Levers
Shimano Deore M6100
Cassette
Shimano M6100, 10-51 teeth, 12 speed
Crank
Shimano CRE70-12-B, 36 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC e12T EPT
Pedals
VP VPE-527
Wheels
Front Hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano SLX, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Rekon Race, 29x2.35", fold, TR EXO
Brakes
Brakes
Shimano M4100, 4 piston
Cockpit
Handlebar
MERIDA EXPERT eTR, 760mm width, 20mm rise
Headset
MERIDA 8157
Seat
Saddle
MERIDA EXPERT CC, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Shimano E8036, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.547 mm | 1.499 mm | 1.461 mm | 1.426 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 707 mm | 725 mm | 746 mm | 767 mm |
| Rake | 51 mm | 52 mm | 51 mm | 51 mm |
| Trail | 100 mm | 99 mm | 100 mm | 100 mm |
| Stack | 636 mm | 640 mm | 650 | 659 mm |
| Reach | 411 mm | 427 mm | 445 mm | 462 mm |
| Top Tube Length | 588 mm | 605 mm | 625 mm | 645 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 115 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1165 mm | 1183 mm | 1204 mm | 1225 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 719 mm | 750 mm | 794 mm | 835 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
