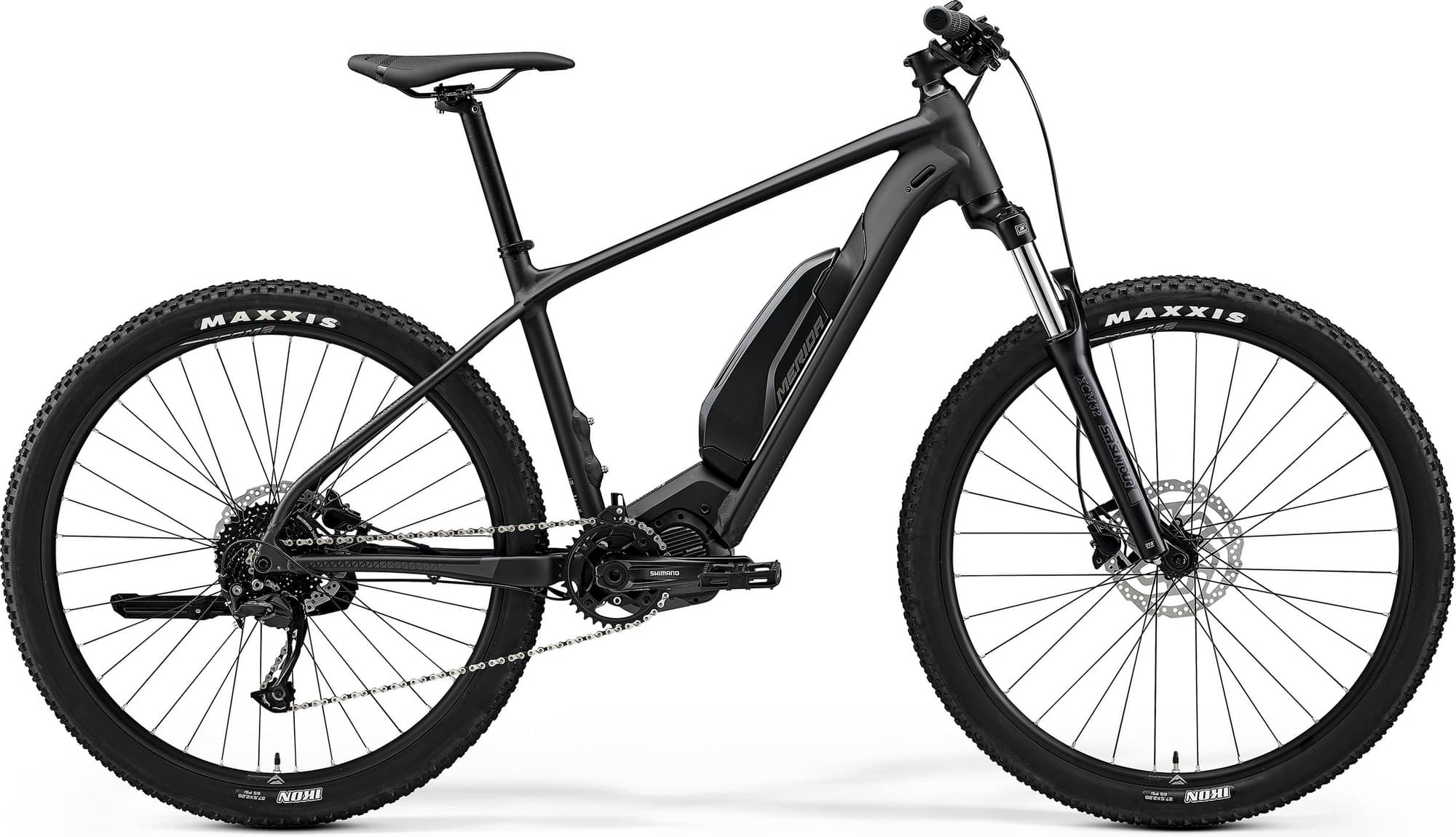

Merida eBIG SEVEN 300 SE 2024
2024 E-bike
Estimate price |
3,726$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8010, 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.SEVEN LITE, material: aluminium, max. wheelsize 27.5x2.20" without fender max./ 27.5"x2.00" with fender max. wheelsize, 148x12mm axle standard, MUK 37 Hanger
Suspension Fork
SR Suntour XCM32 DS, Coil, 100mm, Tapered, 47mm fork offset, 27.5x2.2" max wheelsize
Drivetrain
Rear Derailleur
Shimano Alivio M3100, SGS
Shift Levers
Shimano Alivio
Cassette
Shimano HG200, 11-36 teeth, 9 speed
Crank
Shimano CRE70-B, 34 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e9S
Pedals
VP VPE-537
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Tires
Front: Maxxis Ikon, 27.5x2.2", Rear: Maxxis Ikon, 27.5x2.2"
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Stem
MERIDA EXPERT CC, material: aluminium, 31.8mm diameter, 5° stem angle, 70 mm-XS/S, 80 mm-M
Handlebar
MERIDA EXPERT CC, 720mm width, 10mm rise
Headset
MERIDA 2341
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT, 30.9mm diameter, 15mm setback
Motor & Battery
Motor
Shimano E7000, 60Nm
Battery
Shimano E8010, 504Wh
Charger
Shimano EC-E6002, 2A charging current
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.451 mm | 1.413 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 328 mm |
| Front Center | 666 mm | 667 mm | 688 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm |
| Stack | 569 mm | 579 mm | 588 mm |
| Reach | 401 mm | 399 mm | 416 mm |
| Top Tube Length | 570 mm | 570 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 330 mm | 380 mm | 430 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 455 mm | 438 mm | 438 mm |
| Wheelbase | 1120 mm | 1104 mm | 1125 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm |
| Standover Height | 673 mm | 710 mm | 749 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
