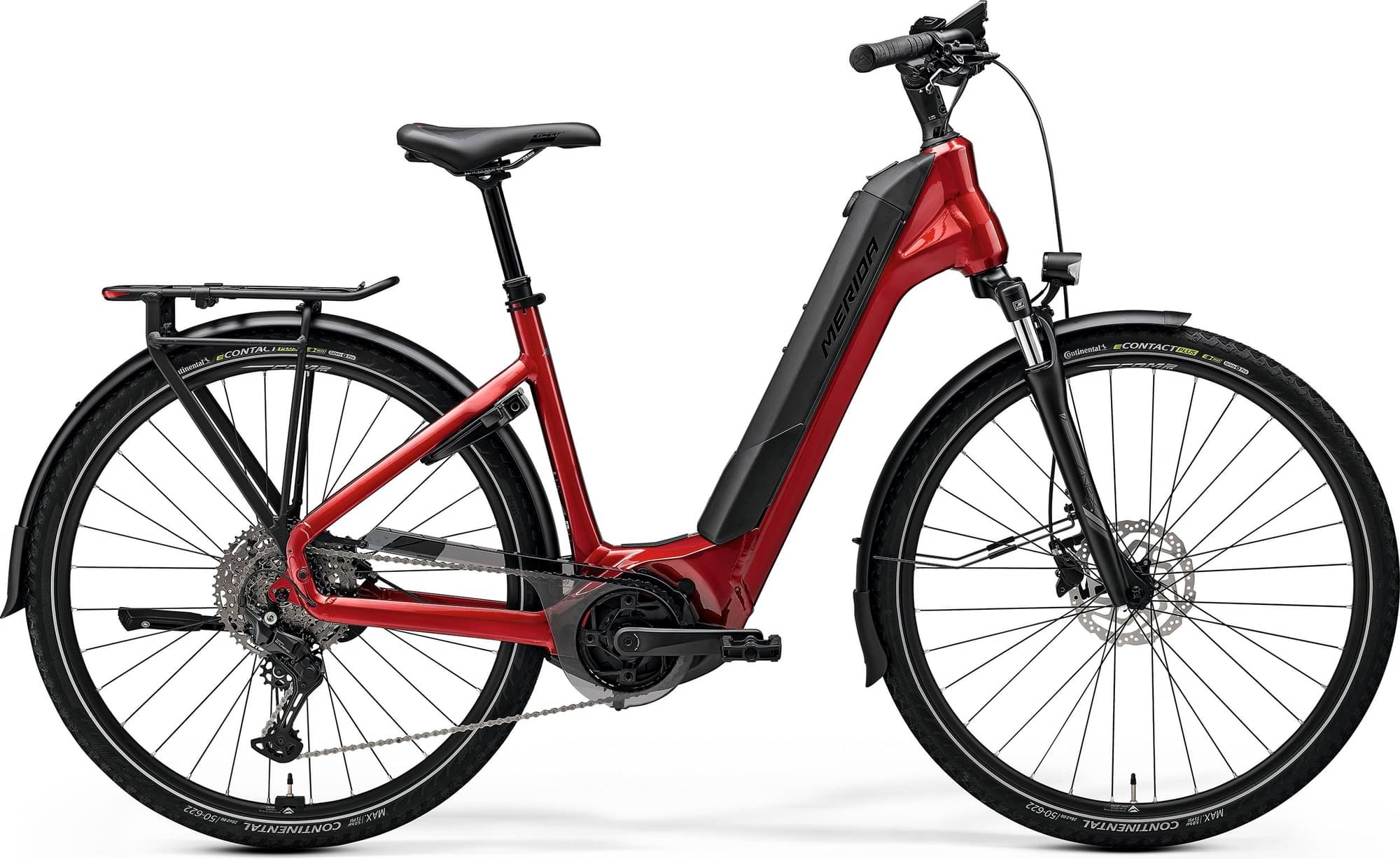

Merida eFLOAT CITY 600 EQ 2025
2025 E-bike
Estimate price |
3,798$
Weight | 29.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore, CUES -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch PowerTube 750 Wh, removeable -
Drivetrain 1 × 11 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eFLOAT CITY LITE, material: aluminium, 700x50C (with fender) max. wheelsize, 135x9mm axle standard, internal
Suspension Fork
SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize
Drivetrain
Rear Derailleur
Shimano Cues U6000, GS
Shift Levers
Shimano SL-MT500-L
Cassette
Shimano LG400-11, 11-50 teeth, 11 speed
Crank
FSA Direct Mount Steel Chainring w/ MegaTooth, 38 teeth
Bottom Bracket
BSA, threaded
Chain
Shimano LG500
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano QC300, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano QC300, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Metropass, 622-50, wire, reflecting line
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT, material: aluminium, 640mm width, 35mm rise
Headset
MERIDA-8254
Seat
Saddle
MERIDA EXPERT CT, V-mount
Seatpost
MERIDA COMP TR IV, 34.9mm diameter, 0mm setback, S/M/L/XL: 150mm travel seatpost
Motor & Battery
Motor
Bosch Performance Line
Battery
Bosch PowerTube 750 Wh, removeable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.699 mm | 1.657 mm | 1.591 mm |
| Front Center | 651 mm | 666 mm | 687 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 80 mm | 80 mm | 80 mm |
| Stack | 656 mm | 661 mm | 665 mm |
| Reach | 386 mm | 399 mm | 418 mm |
| Top Tube Length | 580 mm | 595 mm | 615 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 175 mm | 180 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1113 mm | 1128 mm | 1149 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
