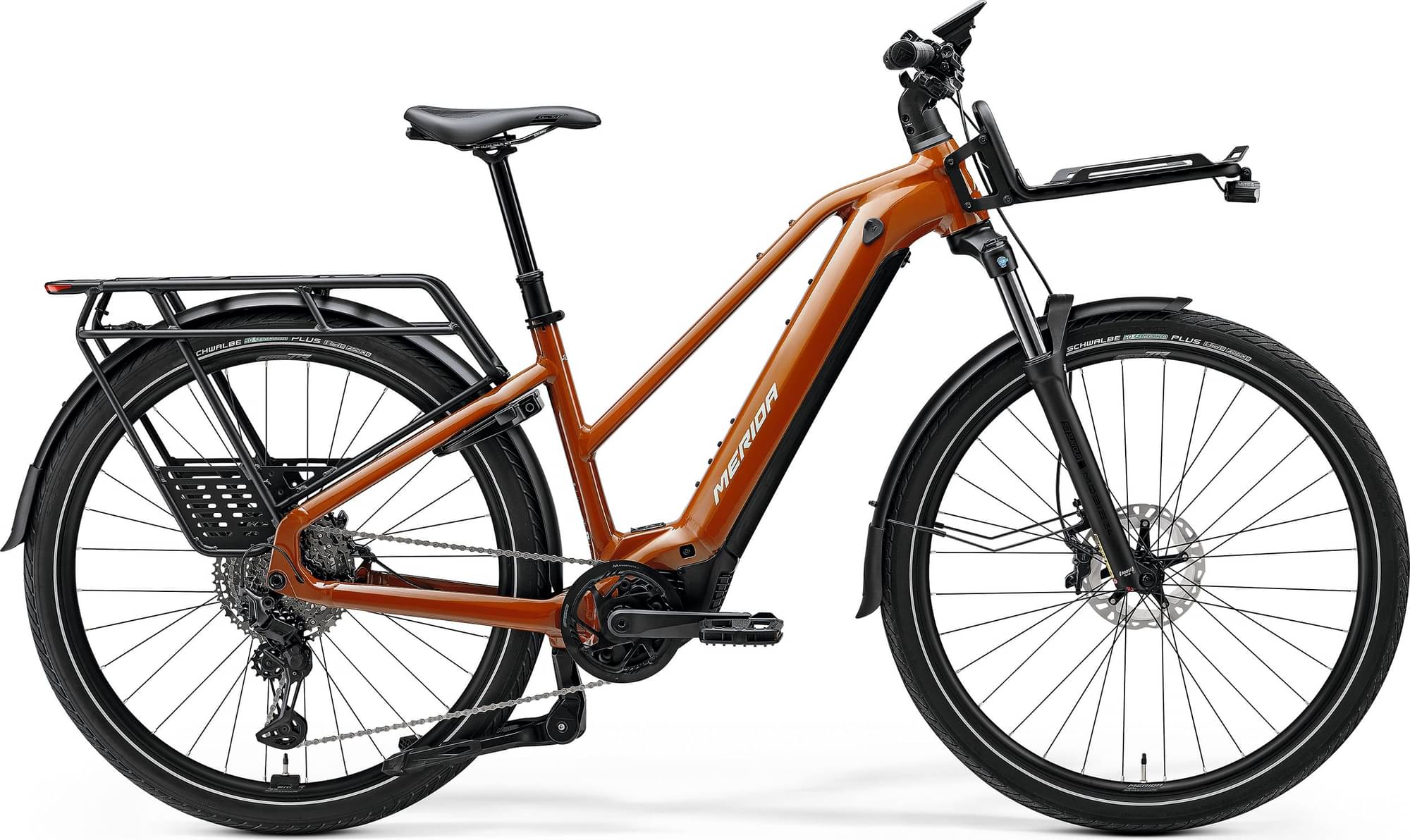

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour MOBIE
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 800 Wh, removeable -
Drivetrain 1 × 11 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eFLOAT HD L LITE II, material: aluminium, 29"x2.4" with fender max. wheelsize, 148x12mm axle standard, intube
Suspension Fork
SR Suntour Mobie 34-D-Boost, Air, 120mm suspension travel, 29x2.4 max wheelsize
Drivetrain
Rear Derailleur
Shimano XT LG
Shift Levers
Shimano SL-MT500-L / Shimano XT
Cassette
Shimano LG500, 11-50 teeth, 11 speed
Crank
FSA Direct Mount Steel MT Chainring and Chainguard, 38 teeth
Bottom Bracket
BSA, threaded
Chain
Shimano LG500
Pedals
VP VPE-541P
Wheels
Front Hub
Shimano TC500, 15x100mm width front hub, 32 spoke holes, Centerlock, 12x148mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TC500, 15x100mm width front hub, 32 spoke holes, Centerlock, 12x148mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
Spokes
Black stainless
Tires
Continental eContact Plus, 622-55, wire, reflecting line
Brakes
Brakes
Shimano Cues U8000, 4 piston
Cockpit
Handlebar
MERIDA EXPERT, material: aluminium, 680mm width, 15mm rise
Headset
Acros ICR MERIDA INTEGRATED neck w/ Blocklock
Seat
Saddle
MERIDA EXPERT TK II
Seatpost
MERIDA COMP TR IV, 34.9mm diameter, 0mm setback, S/M/L/XL: 150mm travel seatpost
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch PowerTube 800 Wh, removeable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.586 mm | 1.532 mm |
| Front Center | 708 mm | 726 mm |
| Rake | 51 mm | 50 mm |
| Trail | 89 mm | 90 mm |
| Stack | 647 mm | 651 mm |
| Reach | 408 mm | 425 mm |
| Top Tube Length | 588 mm | 605 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 430 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° |
| Head Tube Length | 115 mm | 120 mm |
| Chainstay Length | 475 mm | 475 mm |
| Wheelbase | 1176 mm | 1194 mm |
| Bottom Bracket Drop | 62 mm | 62 mm |
| Standover Height | 646 mm | 656 mm |
| Wheels | 700 | 700 |
