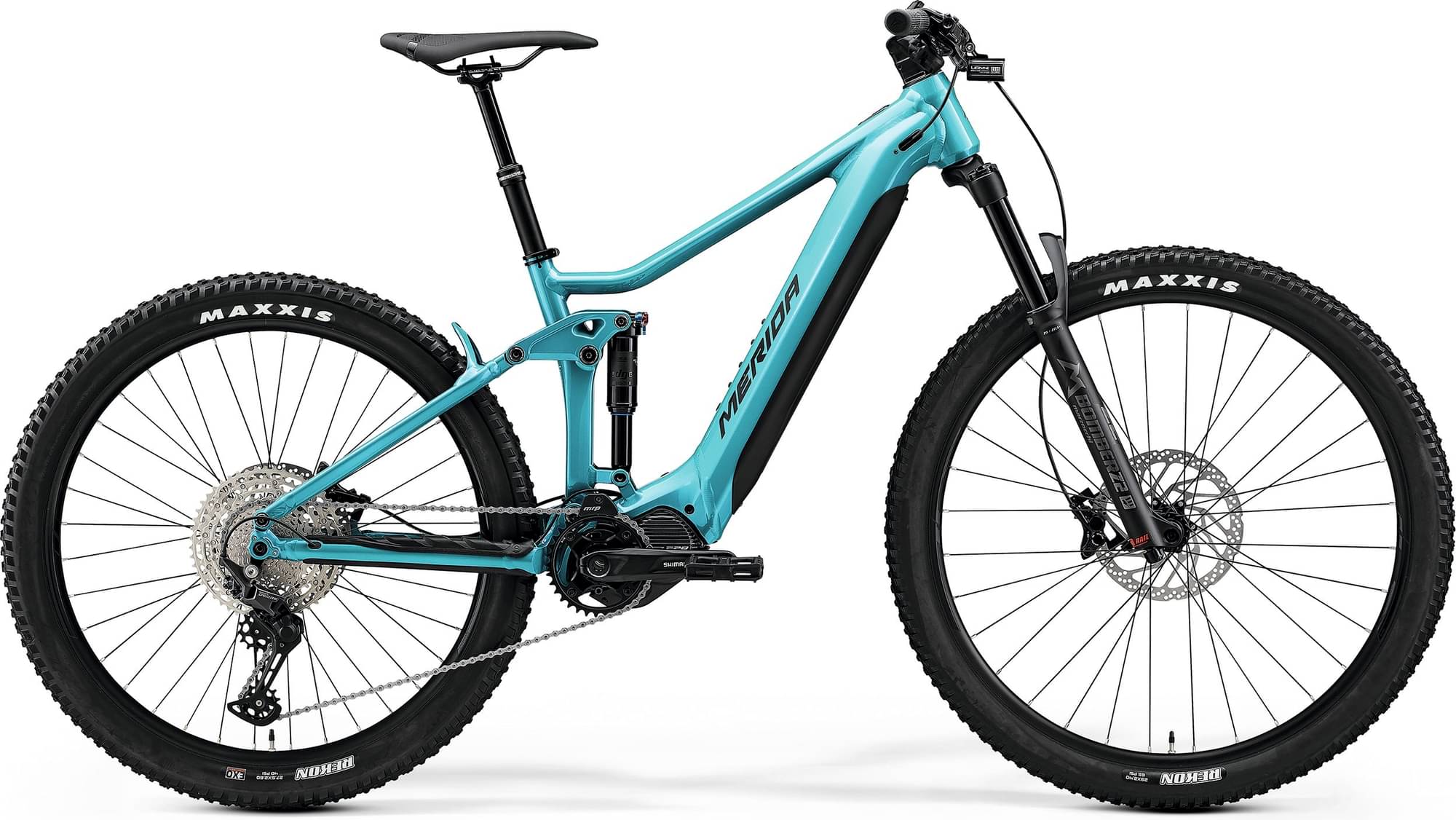

Merida eONE-FORTY 500 (EP6) 2024
2024 E-bike
Estimate price |
6,300$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 133mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Trendpower Internal Battery, 750Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-FORTY LITE III, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube
Suspension Fork
Suntour XCR34 LOR DS, Air Boost, 140mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize
Rear Shock
SUNTOUR RS-EDGE-TR-LO-R8-M6, lockout
Drivetrain
Rear Derailleur
Shimano Deore M5120, SGS
Shift Levers
Shimano Deore M4100
Cassette
Shimano M4100, 11-46 teeth, 10 speed
Crank
Shimano CRE70-B, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC e10s
Pedals
VP VPE-537
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Front: MAXXIS REKON, 29x2.4", wire, DUAL, Rear: MAXXIS REKON, 27.5x2.6", wire, EXO
Brakes
Brakes
TEKTRO HD-M745, 4 piston
Cockpit
Stem
MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 50 mm all sizes
Handlebar
MERIDA EXPERT eTR, 780mm width, 20mm rise
Headset
MERIDA-8152 / MERIDA-8157 for M size
Seat
Saddle
MERIDA EXPERT CC, V-mount
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano EP6, 85Nm
Battery
Trendpower Internal Battery, 750Wh
Charger
Trendpower EU Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | XL |
|---|---|---|
| Stack Reach Ratio | 1.458 mm | 1.354 mm |
| Front Center | 744 mm | 788 mm |
| Rake | 47 mm | 49 mm |
| Trail | 112 mm | 109 mm |
| Stack | 627 mm | 635 mm |
| Reach | 430 mm | 469 mm |
| Top Tube Length | 581 mm | 624 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° |
| Seat Tube Length | 415 mm | 450 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° |
| Head Tube Length | 115 mm | 125 mm |
| Chainstay Length | 439 mm | 439 mm |
| Wheelbase | 1182 mm | 1226 mm |
| Bottom Bracket Drop | 25 mm | 25 mm |
| Standover Height | 730 mm | 733 mm |
| Wheels | 29" | 29" |
