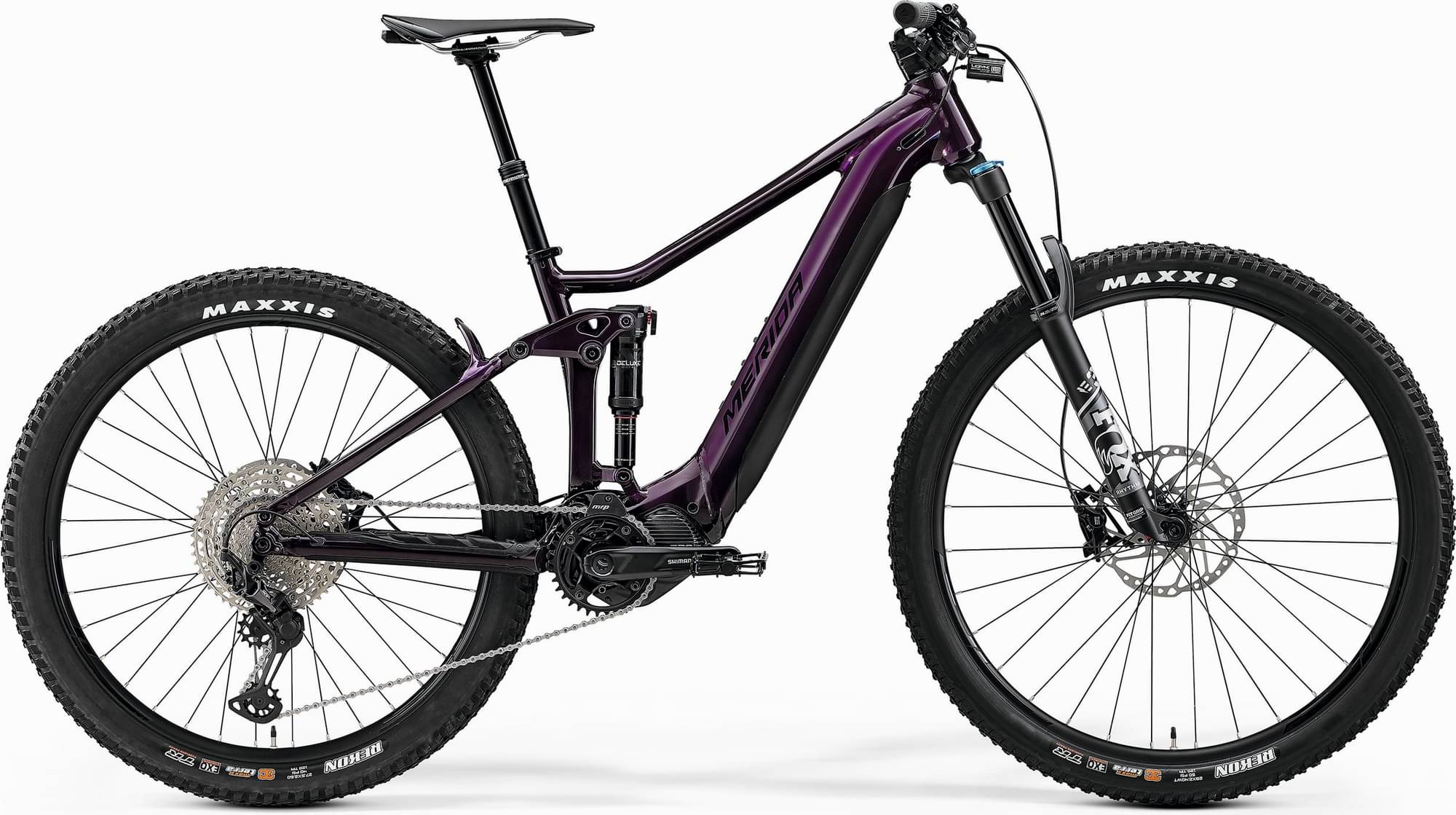

Merida eONE-FORTY 700 2024
2024 E-bike
Estimate price |
7,561$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 133mm -
Fork Fox Rhythm Float 34
-
Groupset XT, Deore -
Suspension Full -
Motor Shimano 85Nm mid-drive -
Battery Shimano E8036 630Wh / Shimano E8035 504Wh for S only -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-FORTY LITE III, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, MUK 37 Hanger
Suspension Fork
FOX Rhythm 34 Float eMTB+, Air, 140mm suspension travel, Tapered, 51mm fork offset, 29x2.5" max wheelsize
Rear Shock
Rock Shox Deluxe Select+, platform
Drivetrain
Rear Derailleur
Shimano XT RDM8100 Shadow+ 12
Shift Levers
Shimano SL -MT500-IL / Shimano Deore M6100
Cassette
Shimano M6100, 10-51 teeth, 12 speed
Crank
Shimano CRE80-12-B, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC e12T EPT
Pedals
VP VPE-527
Wheels
Front Hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Front: Maxxis Rekon, 29x2.4", fold, 3C EXO MaxxTerra, Rear: Maxxis Rekon, 27.5x2.6", fold, TR 3C EXO MaxxTerra
Brakes
Brakes
Shimano SLX, 4 piston
Cockpit
Stem
MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, GoPro & Supernova mount, 50 mm
Handlebar
MERIDA EXPERT eTR, 780mm width, 20mm rise
Headset
MERIDA 8152
Seat
Saddle
MERIDA EXPERT CC, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S 100mm travel seatpost - S/M 125mm travel seatpost - L 150mm travel seatpost - XL/XXL 170mm travel seatpost
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Shimano E8036 630Wh / Shimano E8035 504Wh for S only
Charger
Shimano EC-E8004, 4A charging current
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.517 mm | 1.458 mm | 1.402 mm | 1.354 mm |
| Front Center | 722 mm | 744 mm | 766 mm | 788 mm |
| Rake | 47 mm | 47 mm | 47 mm | 49 mm |
| Trail | 112 mm | 112 mm | 112 mm | 109 mm |
| Stack | 622 mm | 627 mm | 631 mm | 635 mm |
| Reach | 410 mm | 430 mm | 450 mm | 469 mm |
| Top Tube Length | 561 mm | 581 mm | 603 mm | 624 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 405 mm | 415 mm | 430 mm | 450 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1160 mm | 1182 mm | 1204 mm | 1226 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 729 mm | 730 mm | 727 mm | 733 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
