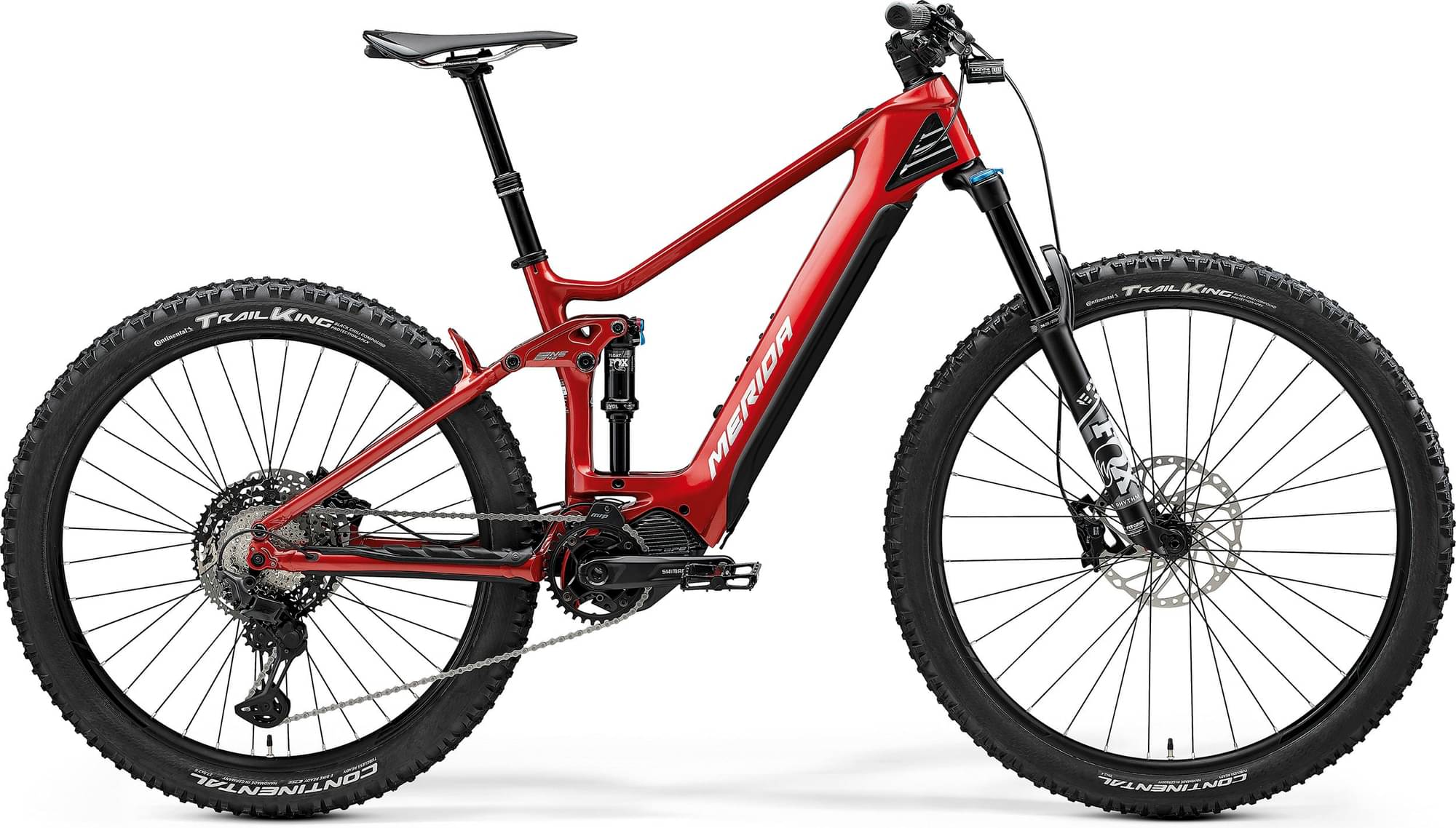

Merida eONE-FORTY 8000 2024
2024 E-bike
Estimate price |
6,290$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 133mm -
Fork Fox Rhythm Float 34
-
Groupset XT, Deore -
Suspension Full -
Motor Shimano 85Nm mid-drive -
Battery Shimano E8036 630Wh / Shimano E8035 504Wh for S only -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-FORTY CFA II, material: carbon, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh
Suspension Fork
FOX Rhythm 34 Float eMTB+, Air, 140mm suspension travel, Tapered, 51mm fork offset, 29x2.5" max wheelsize
Rear Shock
FOX Performance Float DPS, lockout
Drivetrain
Rear Derailleur
Shimano XT RDM8130 Shadow+ 11
Shift Levers
Shimano SL -MT500-IL
Cassette
Shimano LG600, 11-50 teeth, 11 speed
Crank
Shimano CRE80-B, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
CNLG500
Pedals
VP VPE-527
Wheels
Front Hub
Shimano XT, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano XT, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Continental Trail King, 29x2.4 ", fold, BlackChili, ProTection Apex, TR
Brakes
Brakes
Shimano SLX, 4 piston
Cockpit
Handlebar
MERIDA EXPERT eTR, 780mm width, 20mm rise
Headset
MERIDA 8152
Seat
Saddle
MERIDA EXPERT CC, V-mount
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S 100mm travel seatpost - S/M 125mm travel seatpost - L 150mm travel seatpost - XL/XXL 170mm travel seatpost
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Shimano E8036 630Wh / Shimano E8035 504Wh for S only
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.517 mm | 1.459 mm | 1.404 mm | 1.373 mm | 1.344 mm |
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm | 331 mm | 331 mm |
| Front Center | 722 mm | 744 mm | 766 mm | 792 mm | 818 mm |
| Rake | 47 mm | 47 mm | 47 mm | 48 mm | 48 mm |
| Trail | 103 mm | 103 mm | 103 mm | 102 mm | 102 mm |
| Stack | 622 mm | 626.5 mm | 631 mm | 644.5 mm | 658 mm |
| Reach | 410 mm | 429.5 mm | 449.5 mm | 469.5 mm | 489.5 mm |
| Top Tube Length | 561 mm | 582 mm | 603 mm | 626 mm | 650 |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 405 mm | 420 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1160 mm | 1182 mm | 1204 mm | 1230 mm | 1256 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm | 24 mm |
| Standover Height | 736 mm | 731 mm | 727 mm | 734 mm | 748 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
