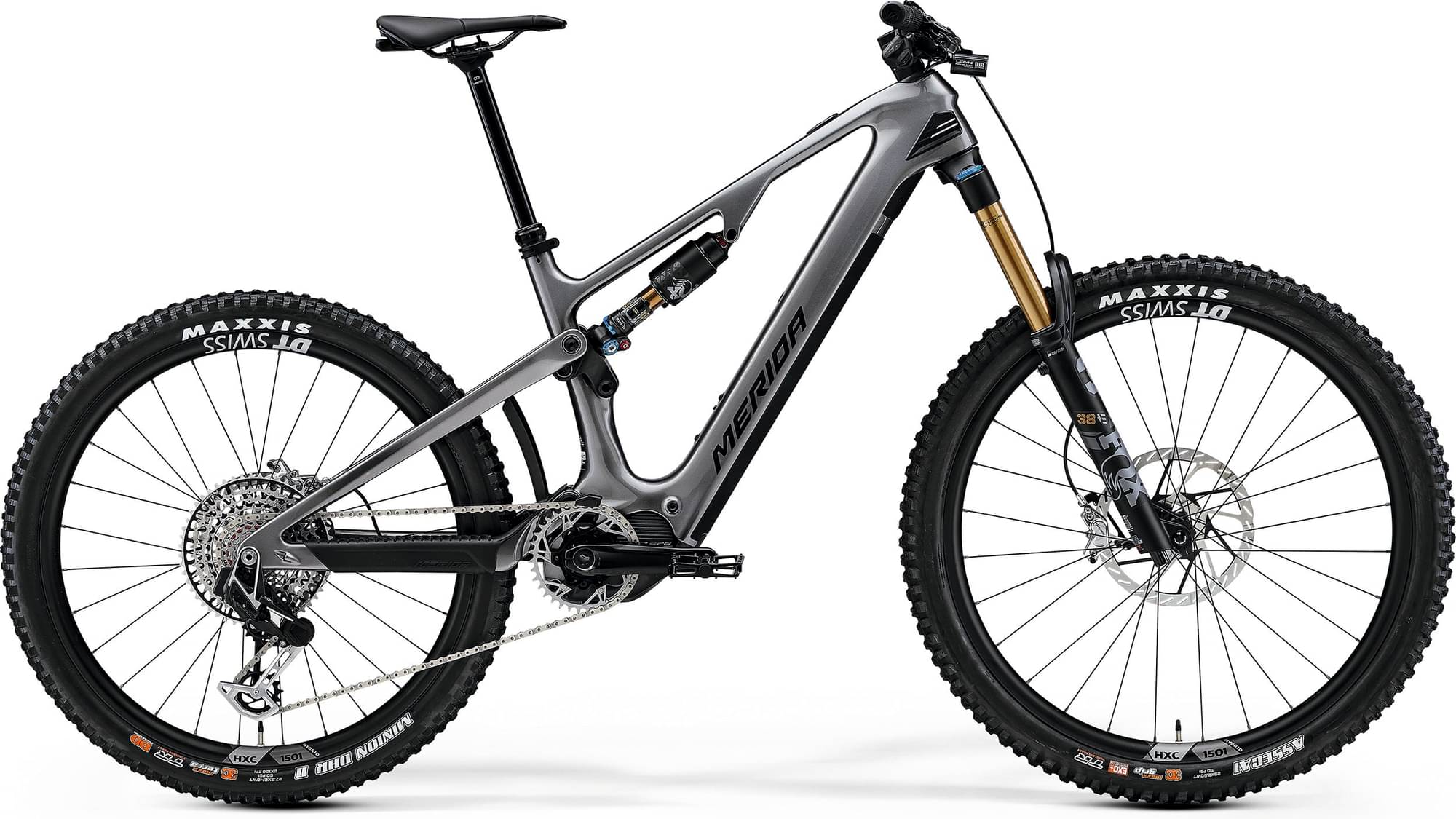

Merida eONE-SIXTY 10K 2025
2025 E-bike
Estimate price |
14,052$
Weight | 22 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Trendpower Internal Battery 600 Wh TPS-C15-58SD, Shimano Gen 2, integrated -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY CF4 III, material: carbon, 160mm suspension travel, 29? x 2,6? max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh
Suspension Fork
Fox 38 Factory eMTB+, Air, 170mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
Rear Shock
Fox Factory Float X2, 2 Pos Lever
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission AXS
Shift Levers
Limotech RM10 (For SRAM MMX) / SRAM AXS Pod Controller
Cassette
SRAM XX Eagle Transmission, 10-52, 12 speed
Crank
SRAM XX Eagle Transmission E-MTB for Steps, 36 teeth
Bottom Bracket
STEPS, press-fit
Chain
SRAM XX Eagle Transmission, Flattop
Pedals
VP VP-532
Wheels
Front Hub
MERIDA EXPERT TR, including removeable lever, 6/4mm allen key
Rear Hub
MERIDA EXPERT TR, including removeable lever, 6/4mm allen key
Rims
DT Swiss HXC 1501, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, 6-Bolt, SRAM XD, material: carbon, Tubeless ready (tubeless tape and valves included)
Tires
Front: Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra
Brakes
Brakes
SRAM Code Ultimate Stealth, 4 piston
Cockpit
Stem
MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0? stem angle, Supernova mount, 40 mm all sizes
Handlebar
MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB
Headset
Acros ICR MERIDA INTEGRATED neck w/ Blocklock
Seat
Saddle
Proxim Nembo Triox, V-mount adapter, incl. MERIDA minitool
Seatpost
MERIDA TEAM TR II, 34.9mm diameter, 0mm setback, SHORT, MID, LONG and XLONG 30-230mm travel seatpost, XSHORT 30-200mm travel seatpost
Motor & Battery
Motor
Shimano EP801, 85Nm
Battery
Trendpower Internal Battery 600 Wh TPS-C15-58SD, Shimano Gen 2, integrated
Charger
Trendpower EU Smart Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Short | Mid | Long | X-Long |
|---|---|---|---|---|
| Stack Reach Ratio | 1.431 mm | 1.379 mm | 1.33 mm | 1.287 mm |
| Front Center | 775 mm | 798 mm | 820 mm | 842 mm |
| Rake | 36 mm | 36 mm | 36 mm | 36 mm |
| Trail | 140 mm | 140 mm | 140 mm | 140 mm |
| Stack | 628 mm | 633 mm | 637 mm | 642 mm |
| Reach | 439 mm | 459 mm | 479 mm | 499 mm |
| Top Tube Length | 567 mm | 589 mm | 610 mm | 632 mm |
| Seat Tube Angle | 78.5 ° | 78.4 ° | 78.4 ° | 78.3 ° |
| Seat Tube Length | 410 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.4 ° | 64.4 ° | 64.4 ° | 64.4 ° |
| Head Tube Length | 105 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1221 mm | 1244 mm | 1266 mm | 1288 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm |
| Standover Height | 770 mm | 765 mm | 760 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" |
