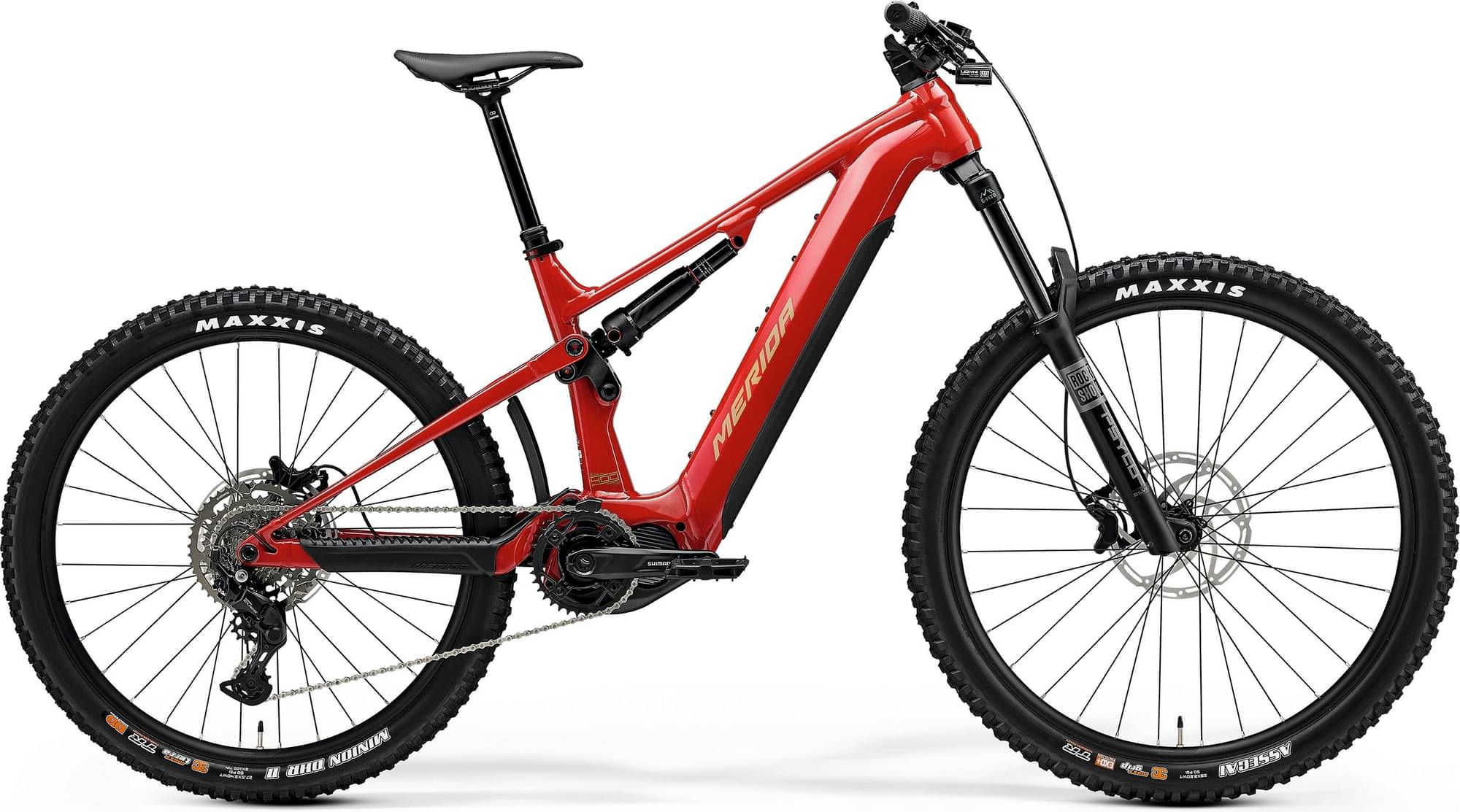

Merida eONE-SIXTY 400 2025
2025 E-bike
Estimate price |
6,029$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Psylo
-
Groupset CUES -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Shimano EN806 630Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY LITE IV, material: aluminium, 160mm suspension travel, 29x2.6" max. wheelsize, 148x12mm axle standard, intube, 750 Wh
Suspension Fork
Rock Shock Psylo Silver R, 160mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
Rear Shock
Rock Shock Deluxe
Drivetrain
Rear Derailleur
Shimano Cues U4000, GS
Shift Levers
Shimano SL -MT500-L (Need to check if SL-MT500-L is competible with LIMOTEC post) / Shimano Cues U4000-9
Cassette
Shimano LG400-9, 11-46 teeth, 9 speed
Crank
FSA 1x Steel Chainring, 36 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano LG500
Pedals
VP VPE-533
Wheels
Front Hub
Shimano TC500-B / Shimano TC500, 15x100mm width front hub, 32 spoke holes, Centerlock, 12x148mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TC500-B / Shimano TC500, 15x100mm width front hub, 32 spoke holes, Centerlock, 12x148mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
Spokes
Black stainless
Tires
Front: Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra
Brakes
Brakes
Tektro Gemini M535, 4 piston
Cockpit
Stem
MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0? stem angle, Supernova mount, 40 mm all sizes
Handlebar
MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB
Headset
Acros ICR MERIDA EXTERNAL neck w/ Blocklock
Seat
Saddle
MERIDA COMP SL, 28% recycled material, V-mount
Seatpost
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost - S: 150mm travel seatpost - M/L/XL: 200mm travel seatpost - XL: 230mm travel seatpost
Motor & Battery
Motor
Shimano EP801, 85Nm
Battery
Shimano EN806 630Wh
Charger
Shimano EC-E6002, 2A charging current
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | X-Short | Short | Mid | Long | X-Long |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.489 mm | 1.431 mm | 1.379 mm | 1.33 mm | 1.287 mm |
| Front Center | 753 mm | 775 mm | 798 mm | 820 mm | 842 mm |
| Rake | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Trail | 140 mm | 140 mm | 140 mm | 140 mm | 140 mm |
| Stack | 624 mm | 628 mm | 633 mm | 637 mm | 642 mm |
| Reach | 419 mm | 439 mm | 459 mm | 479 mm | 499 mm |
| Top Tube Length | 546 mm | 567 mm | 589 mm | 610 mm | 632 mm |
| Seat Tube Angle | 78.5 ° | 78.5 ° | 78.4 ° | 78.4 ° | 78.3 ° |
| Seat Tube Length | 400 mm | 410 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.4 ° | 64.4 ° | 64.4 ° | 64.4 ° | 64.4 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1199 mm | 1221 mm | 1244 mm | 1266 mm | 1288 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm | 9 mm |
| Standover Height | 763 mm | 757 mm | 751 mm | 749 mm | 744 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
