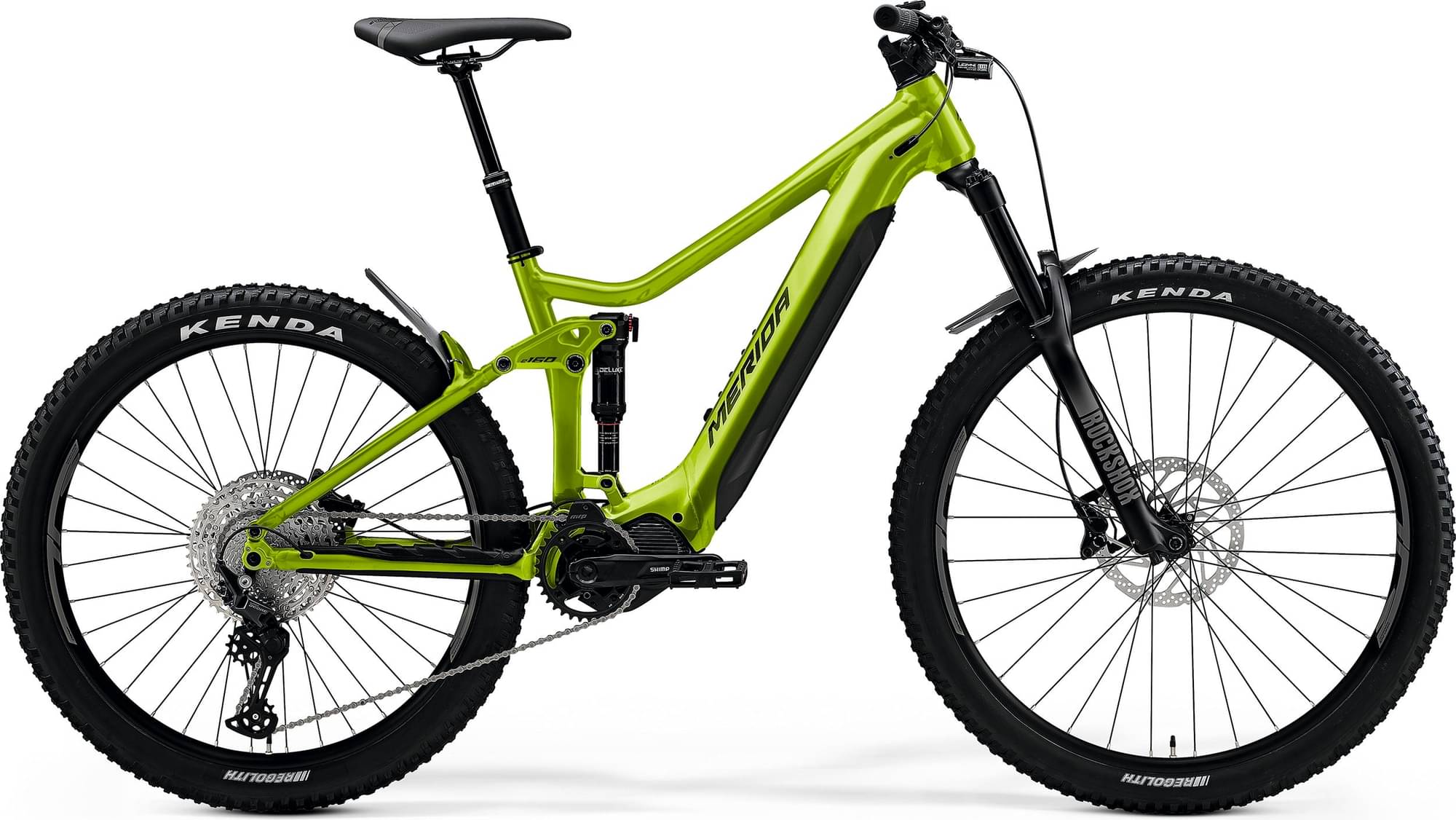

Merida eONE-SIXTY 500 (EP6) 2024
2024 E-bike
Estimate price |
5,888$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Gold RL
-
Groupset Deore -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Shimano EN806, 630Wh Shimano EN805 504Wh for XS only -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
171cm - 182cm
LG
179cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY LITE III, material: aluminium, 150mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube
Suspension Fork
Rock Shox 35 Gold RL, Air, 160mm suspension travel, Tapered, 51mm fork offset, 29x2.8" max wheelsize
Rear Shock
Rock Shox Deluxe Select+, platform
Drivetrain
Rear Derailleur
Shimano Deore RDM5100 11
Shift Levers
Shimano SL -MT500-IL / Shimano Deore M5100 11
Cassette
Shimano M5100, 11-51 teeth, 11 speed
Crank
Shimano CRE70-B, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC e11S EPT
Pedals
VP VPE-537
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Front: Kenda Regolith, 29x2.4", wire, Rear: Kenda Regolith, 27.5x2.6", wire
Brakes
Brakes
Shimano M4204, 4 piston
Cockpit
Stem
MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
Handlebar
MERIDA EXPERT eTR, 780mm width, 20mm rise
Headset
MERIDA-8152
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA COMP TR, 30.9mm diameter, 0mm setback, XS/S 100mm travel seatpost - M/L 125mm travel seatpost - XL 150mm travel seatpost
Motor & Battery
Motor
Shimano EP6, 85Nm
Battery
Shimano EN806, 630Wh Shimano EN805 504Wh for XS only
Charger
Shimano EC-E6002, 2A charging current
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.396 mm |
| Front Center | 773 mm | 795 mm |
| Rake | 46 mm | 46 mm |
| Trail | 120 mm | 120 mm |
| Stack | 638 mm | 642 mm |
| Reach | 440 mm | 460 mm |
| Top Tube Length | 605 mm | 626 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° |
| Seat Tube Length | 430 mm | 450 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 125 mm |
| Chainstay Length | 439 mm | 439 mm |
| Wheelbase | 1212 mm | 1234 mm |
| Bottom Bracket Drop | 17 mm | 17 mm |
| Standover Height | 733 mm | 739 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 171 cm | 179 cm |
| Rider Max Height | 182 cm | 189 cm |
