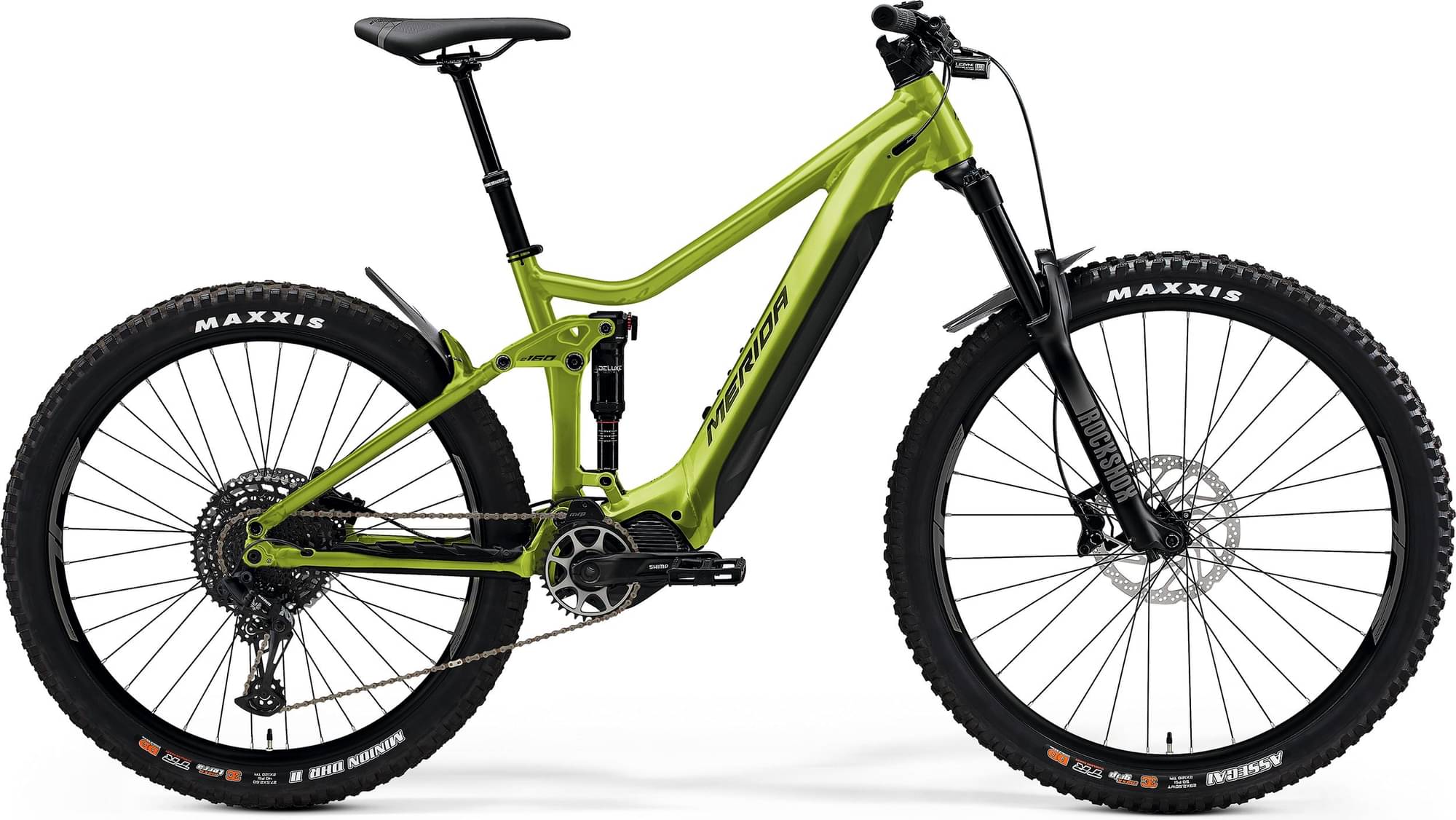

Merida eONE-SIXTY 500 SE 2024
2024 E-bike
Estimate price |
5,888$
Weight | 26.72 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox
-
Groupset NX Eagle -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano EN806 630Wh, Shimano EN805 504Wh for XS only -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY LITE III, material: aluminium, 150 mm suspension travel, 27.5x2.8" max. wheelsize, 148x12 mm axle standard, intube
Suspension Fork
Rock Shox PSYLO Silver RC, Air, 160 mm suspension travel, Tapered, 44 mm fork offset, 29x2.8" max. wheelsize
Rear Shock
Rock Shox Deluxe Select+, platform
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
Limotech RM10 (For SRAM mmX) / SRAM NX Eagle 12
Cassette
SRAM PG-1210 Eagle, 10-50 teeth, 12 speed
Crank
Samox EMA04, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM SX Eagle
Pedals
VP VPE-537
Wheels
Front Hub
Novatec SL-TEAM D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15 mm width front hub, 32 spoke holes, 6 bolt, 148x12 mm width rear hub, 32 spoke holes, 6 bolt
Rear Hub
Novatec SL-TEAM D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15 mm width front hub, 32 spoke holes, 6 bolt, 148x12 mm width rear hub, 32 spoke holes, 6 bolt
Rims
MERIDA COMP TR II, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Front: Kenda Regolith, 29x2.4", wire, Rear: Kenda Regolith, 27.5x2.6", wire
Brakes
Brakes
SRAM DB8, 4 piston
Cockpit
Stem
MERIDA EXPERT eTR II, material: aluminium, 35 mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
Handlebar
MERIDA EXPERT eTR, 780 mm width, 20 mm rise
Headset
MERIDA 8152
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA COMP TR, 30.9 mm diameter, 0 mm setback, XS/S 100 mm travel seatpost - M/L 125 mm travel seatpost - XL 150 mm travel seatpost
Motor & Battery
Motor
Shimano EP6, 85Nm
Battery
Shimano EN806 630Wh, Shimano EN805 504Wh for XS only
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.507 mm | 1.45 mm | 1.396 mm | 1.348 mm |
| Front Center | 751 mm | 773 mm | 795 mm | 817 mm |
| Rake | 46 mm | 46 mm | 46 mm | 45 mm |
| Trail | 120 mm | 120 mm | 120 mm | 121 mm |
| Stack | 633 mm | 638 mm | 642 mm | 647 mm |
| Reach | 420 mm | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 584 mm | 605 mm | 626 mm | 647 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 415 mm | 430 mm | 450 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1190 mm | 1212 mm | 1234 mm | 1256 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Standover Height | 736 mm | 733 mm | 739 mm | 753 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
