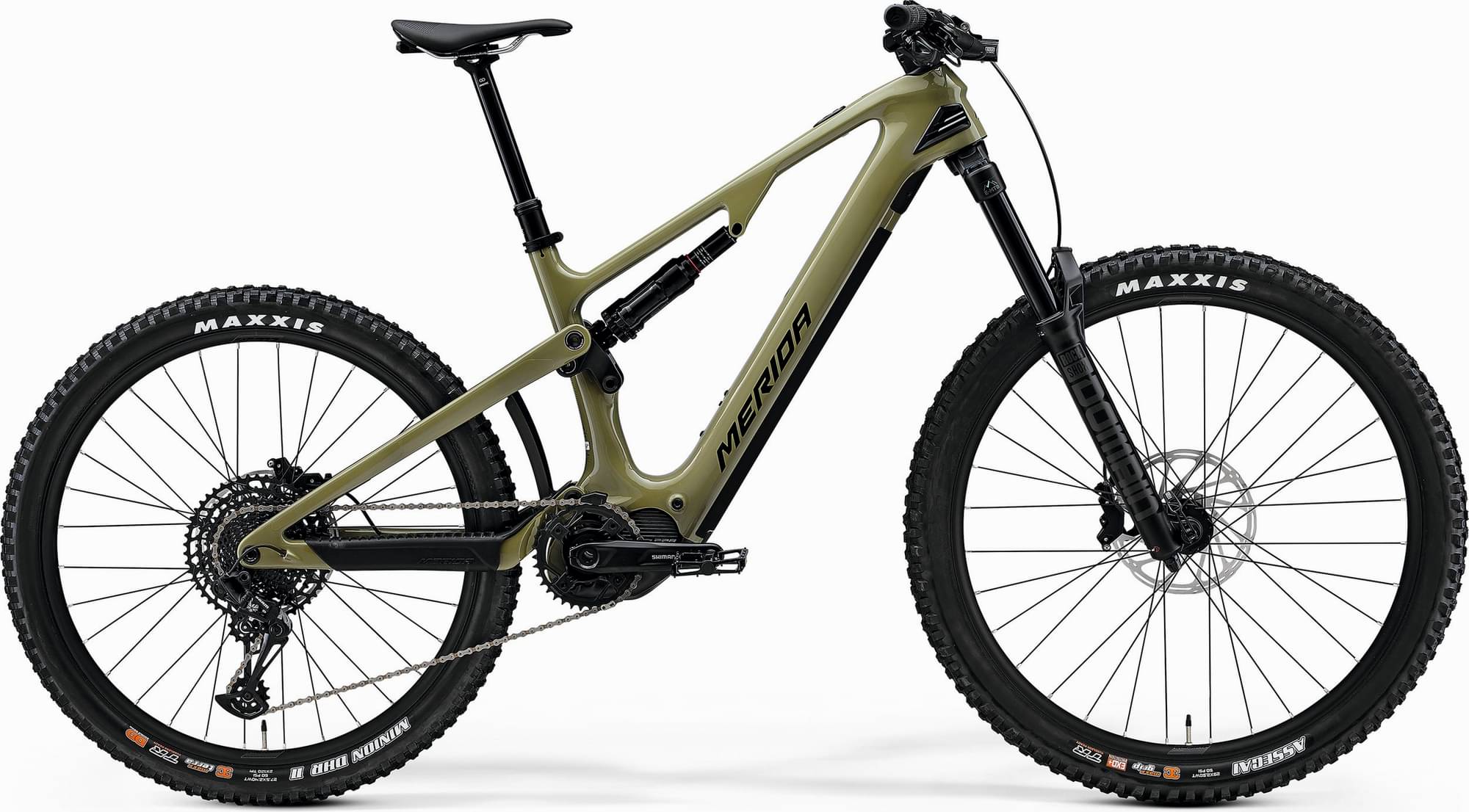

Merida eONE-SIXTY 6000 2024
2024 E-bike
Estimate price |
8,030$
Weight | 23.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox Domain
-
Groupset NX Eagle, FSA -
Suspension Full -
Motor Shimano 85Nm mid-drive -
Battery Trendpower Internal Battery 600 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY CF4 III, material: carbon, 160 mm suspension travel, 29x2,6" max. wheelsize, 148x12 mm axle standard, intube, max. 630 Wh
Suspension Fork
Rock Shox Domain Gold RC E-MTB, Air, 170 mm suspension travel, Tapered, 44 mm fork offset, 29x3.0" max. wheelsize
Rear Shock
Rock Shox Super Deluxe Select
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
Limotech RM10 (For SRAM mmX) / SRAM NX Eagle 12
Cassette
SRAM PG-1210 Eagle, 10-50 teeth, 12 speed, SRAM NX Eagle 12
Crank
FSA 1x Steel Megatooth Chainring, 36 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM SX Eagle
Pedals
VP VPE-527
Wheels
Front Hub
Novatec SL-TEAM D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15 mm width front hub, 32 spoke holes, 6 bolt, 148x12 mm width rear hub, 32 spoke holes, 6 bolt
Rear Hub
Novatec SL-TEAM D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15 mm width front hub, 32 spoke holes, 6 bolt, 148x12 mm width rear hub, 32 spoke holes, 6 bolt
Rims
MERIDA EXPERT TR II, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
Spokes
Black stainless
Tires
Front: Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis DHR II, 27.5x2.4", fold, 3C DD MaxxTerra
Brakes
Brakes
SRAM DB8, 4 piston
Cockpit
Stem
MERIDA EXPERT eTR II, material: aluminium, 35 mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
Handlebar
MERIDA EXPERT eTR, 780 mm width, 20 mm rise
Headset
Acros ICR MERIDA INTEGRATED neck w/ Blocklock
Seat
Saddle
MERIDA EXPERT SL, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT TR II, 34.9 mm diameter, 0 mm setback, XS: 125 mm travel seatpost - S: 150 mm travel seatpost - M/L/XL: 200 mm travel seatpost
Motor & Battery
Motor
Shimano EP801, 85Nm
Battery
Trendpower Internal Battery 600 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Short | Mid | Long | X-Long |
|---|---|---|---|---|
| Stack Reach Ratio | 1.431 mm | 1.379 mm | 1.33 mm | 1.287 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 775 mm | 798 mm | 820 mm | 842 mm |
| Rake | 36 mm | 36 mm | 36 mm | 36 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 628 mm | 633 mm | 637 mm | 642 mm |
| Reach | 439 mm | 459 mm | 479 mm | 499 mm |
| Top Tube Length | 567 mm | 589 mm | 610 mm | 632 mm |
| Seat Tube Angle | 78.5 ° | 78.4 ° | 78.4 ° | 78.3 ° |
| Seat Tube Length | 410 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.4 ° | 64.4 ° | 64.4 ° | 64.4 ° |
| Head Tube Length | 105 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1221 mm | 1244 mm | 1266 mm | 1288 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm |
| Standover Height | 770 mm | 765 mm | 760 mm | 755 mm |
| Wheels | 27" | 27" | 27" | 27" |
