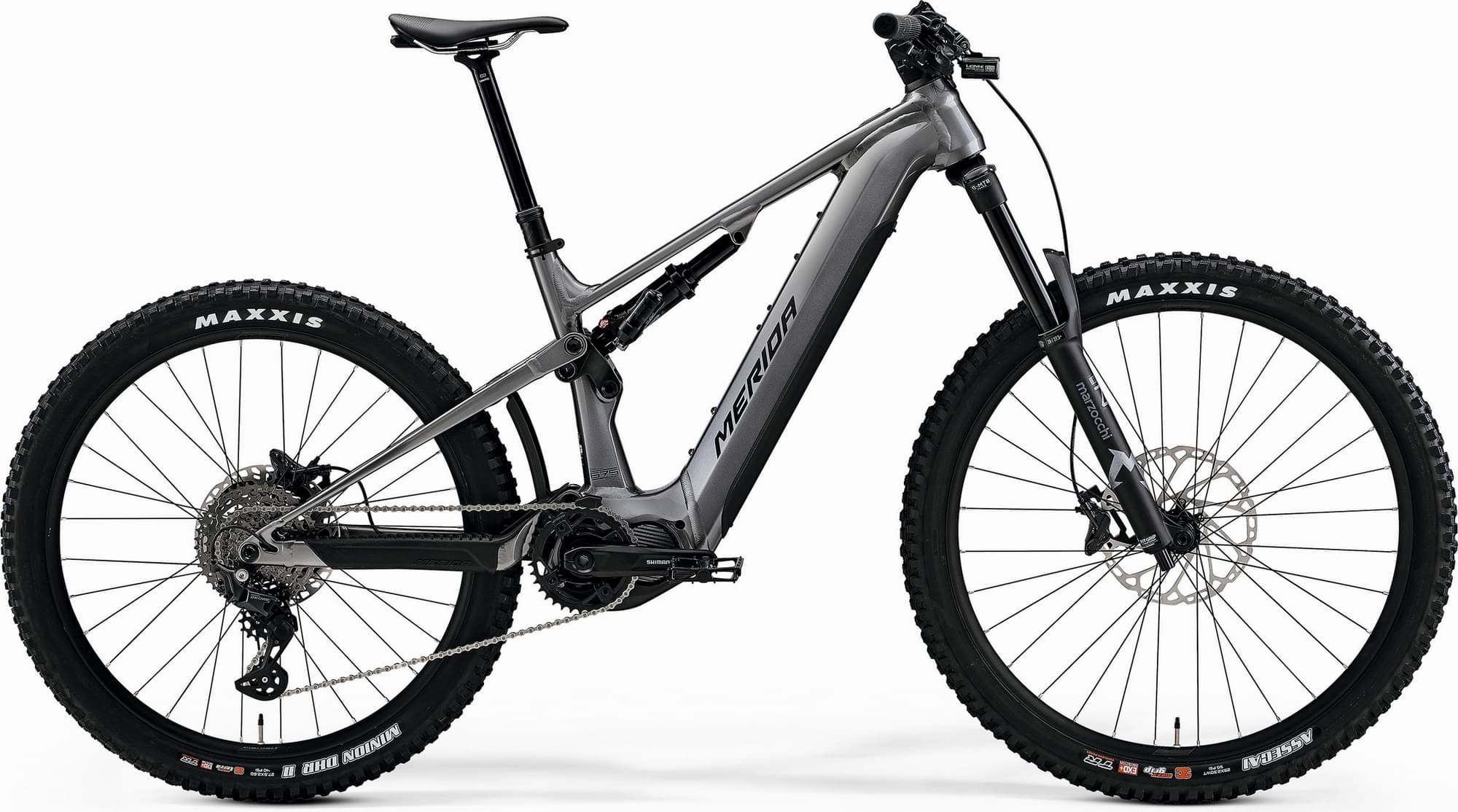

Merida eONE-SIXTY 675 2024
2024 E-bike
Estimate price |
7,452$
Weight | 25.64 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Marzocchi Bomber Z1
-
Groupset Deore, FSA -
Suspension Full -
Motor Shimano 85Nm mid-drive -
Battery Trendpower Internal Battery 750Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY LITE IV, material: aluminium, 160 mm suspension travel, 29x2.6" max. wheelsize, 148x12 mm axle standard, intube, 750 Wh
Suspension Fork
Marzocchi Z1 eMTB, Air, 170 mm suspension travel, Tapered, 44 mm fork offset, 29x2.6" max. wheelsize
Rear Shock
Marzocchi Bomber Air, platform
Drivetrain
Rear Derailleur
Shimano DEORE M5130 LinkGlide 10
Shift Levers
Shimano SL -MT500-IL / Shimano Deore M5130
Cassette
Shimano LG400, 11-43 teeth, 10 speed
Crank
FSA 1x Steel Megatooth Chainring, 36 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano LG500
Pedals
VP VPE-527
Wheels
Front Hub
Shimano TC500-B / Shimano TC600-HM-B, 110x15 mm width front hub, 32 spoke holes, Centerlock, 148x12 mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TC500-B / Shimano TC600-HM-B, 110x15 mm width front hub, 32 spoke holes, Centerlock, 148x12 mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA EXPERT TR II, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
Spokes
Black stainless
Tires
Front: Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis DHR II, 27.5x2.4", fold, 3C DD MaxxTerra
Brakes
Brakes
Shimano Deore M6120, 4 piston
Cockpit
Stem
MERIDA EXPERT eTR II, material: aluminium, 35 mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
Handlebar
MERIDA EXPERT eTR, 780 mm width, 20 mm rise
Headset
Acros ICR MERIDA EXTERNAL neck w/ Blocklock
Seat
Saddle
MERIDA EXPERT CC, V-mount
Seatpost
MERIDA EXPERT TR II, 34.9 mm diameter, 0 mm setback, XS: 125 mm travel seatpost - S: 150 mm travel seatpost - M/L/XL: 200 mm travel seatpost
Motor & Battery
Motor
Shimano EP801, 85Nm
Battery
Trendpower Internal Battery 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Short | Mid | Long | X-Long |
|---|---|---|---|---|
| Stack Reach Ratio | 1.431 mm | 1.379 mm | 1.33 mm | 1.287 mm |
| Front Center | 775 mm | 798 mm | 820 mm | 842 mm |
| Rake | 36 mm | 36 mm | 36 mm | 36 mm |
| Trail | 140 mm | 140 mm | 140 mm | 140 mm |
| Stack | 628 mm | 633 mm | 637 mm | 642 mm |
| Reach | 439 mm | 459 mm | 479 mm | 499 mm |
| Top Tube Length | 567 mm | 589 mm | 610 mm | 632 mm |
| Seat Tube Angle | 78.5 ° | 78.4 ° | 78.4 ° | 78.3 ° |
| Seat Tube Length | 410 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.4 ° | 64.4 ° | 64.4 ° | 64.4 ° |
| Head Tube Length | 105 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1221 mm | 1244 mm | 1266 mm | 1288 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm |
| Standover Height | 757 mm | 751 mm | 749 mm | 744 mm |
| Wheels | 29" | 29" | 29" | 29" |
