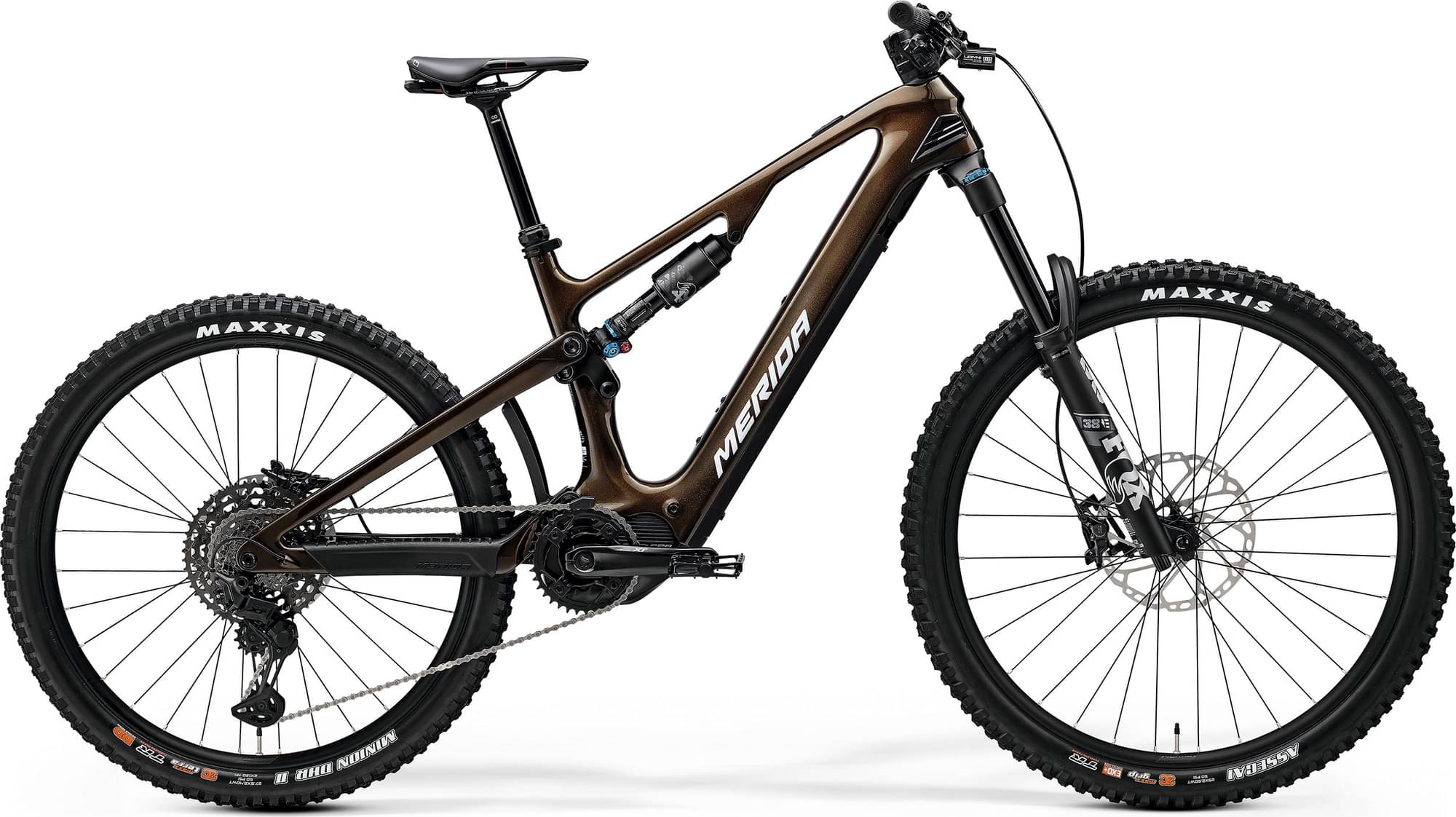

Merida eONE-SIXTY 7000 2025
2025 E-bike
Estimate price |
9,484$
Weight | 23.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Elite Float 38
-
Groupset XT -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Trendpower Internal Battery 600 Wh TPS-C15-58SD, Shimano Gen 2, integrated -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY CF4 III, material: carbon, 160mm suspension travel, 29? x 2,6? max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh
Suspension Fork
Fox 38 Performance Elite eMTB+, Air, 170mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
Rear Shock
Fox Float X Performance, 2 Pos Lever
Drivetrain
Rear Derailleur
Shimano XT RDM8130 LinkGlide 11
Shift Levers
Shimano SL -MT500-IL / Shimano XT M8130 11
Cassette
Shimano LG700, 11-50 teeth, 11 speed
Crank
FSA 1x Steel Chainring, 36 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
CNLG500
Pedals
VP VP-532
Wheels
Front Hub
Shimano XT, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano XT, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
Spokes
Black stainless
Tires
Front: Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra
Brakes
Brakes
Shimano XT, 4 piston
Cockpit
Stem
MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0? stem angle, Supernova mount, 40 mm all sizes
Handlebar
MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB
Headset
Acros ICR MERIDA INTEGRATED neck w/ Blocklock
Seat
Saddle
Proxim Nembo Steel, V-mount adapter, incl. MERIDA minitool
Seatpost
MERIDA TEAM TR II, 34.9mm diameter, 0mm setback, SHORT, MID, LONG and XLONG 30-230mm travel seatpost, XSHORT 30-200mm travel seatpost
Motor & Battery
Motor
Shimano EP801, 85Nm
Battery
Trendpower Internal Battery 600 Wh TPS-C15-58SD, Shimano Gen 2, integrated
Charger
Trendpower EU Smart Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | X-Short | Short | Mid | Long | X-Long |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.489 mm | 1.431 mm | 1.379 mm | 1.33 mm | 1.287 mm |
| Front Center | 753 mm | 775 mm | 798 mm | 820 mm | 842 mm |
| Rake | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Trail | 140 mm | 140 mm | 140 mm | 140 mm | 140 mm |
| Stack | 624 mm | 628 mm | 633 mm | 637 mm | 642 mm |
| Reach | 419 mm | 439 mm | 459 mm | 479 mm | 499 mm |
| Top Tube Length | 546 mm | 567 mm | 589 mm | 610 mm | 632 mm |
| Seat Tube Angle | 78.5 ° | 78.5 ° | 78.4 ° | 78.4 ° | 78.3 ° |
| Seat Tube Length | 400 mm | 410 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.4 ° | 64.4 ° | 64.4 ° | 64.4 ° | 64.4 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1199 mm | 1221 mm | 1244 mm | 1266 mm | 1288 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm | 9 mm |
| Standover Height | 776 mm | 770 mm | 765 mm | 760 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
