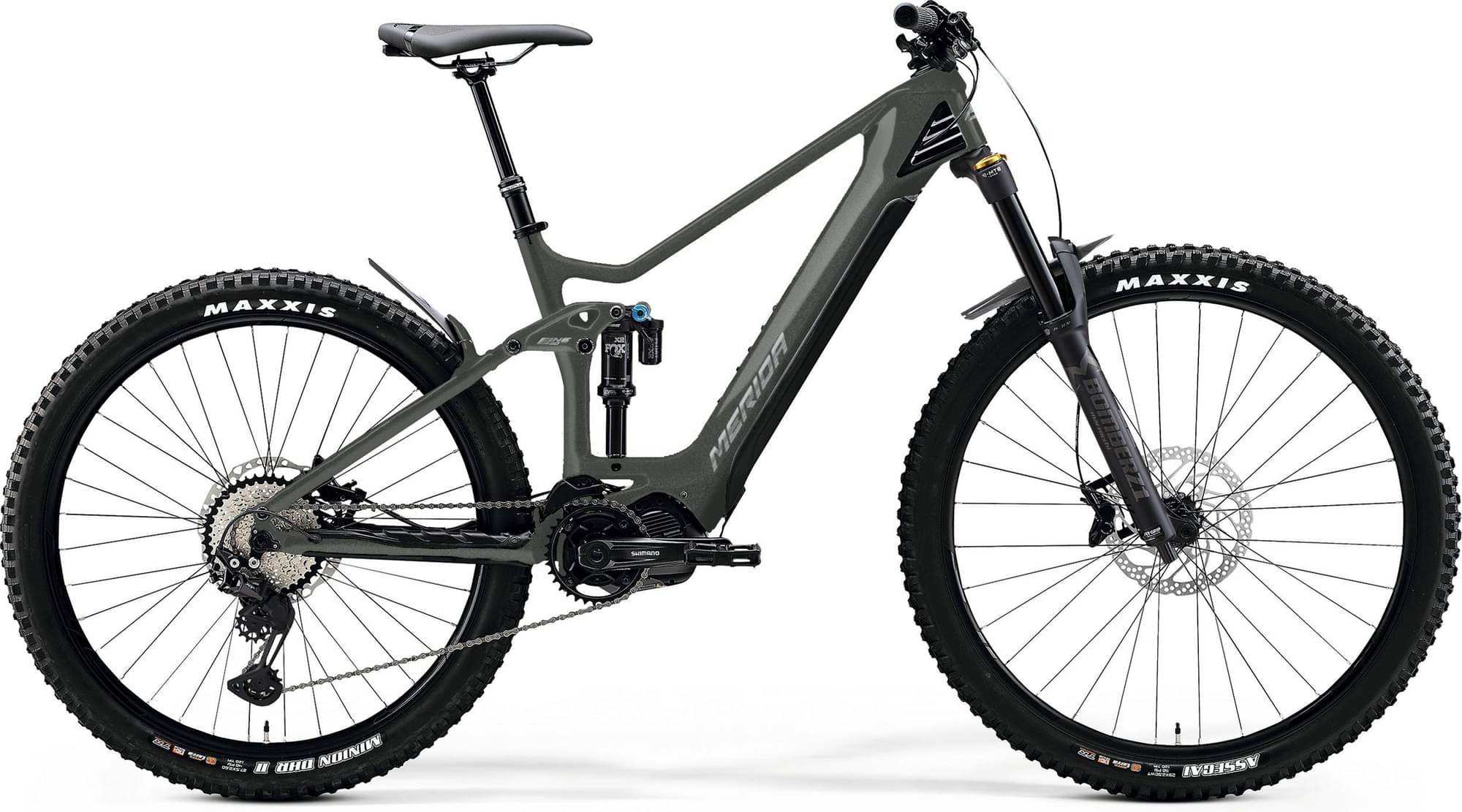

Merida eONE-SIXTY 8000 2024
2024 E-bike
Estimate price |
6,859$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Marzocchi Bomber Z1
-
Groupset XT, Deore -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Shimano EN806 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY CFA II, material: carbon, 150mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh
Suspension Fork
Marzocchi Z1 Ebike+, Air, 160mm suspension travel, Tapered, 51mm fork offset, 29x2.6" max wheelsize
Rear Shock
FOX Float DPX2 Performance, platform
Drivetrain
Rear Derailleur
Shimano XT RDM8130 Shadow+ 11
Shift Levers
Shimano SL -MT500-IL
Cassette
Shimano LG600, 11-50 teeth, 11 speed
Crank
Shimano CRE80-B, 34 teeth, Shimano FCEM600
Bottom Bracket
BSA, 73mm, threaded
Chain
CNLG500
Pedals
VP VPE-527
Wheels
Front Hub
Shimano XT, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano XT, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
Brakes
Brakes
Shimano SLX, 4 piston
Cockpit
Handlebar
MERIDA EXPERT eTR, 780mm width, 20mm rise
Headset
MERIDA-8152
Seat
Saddle
MERIDA EXPERT CC, V-mount
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, XS 125mm travel seatpost - S/M 150mm travel seatpost - L/XL 170mm travel seatpost
Motor & Battery
Motor
Shimano DU-EP600, 85Nm
Battery
Shimano EN806
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.571 mm | 1.507 mm | 1.449 mm | 1.416 mm | 1.385 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 729 mm | 751 mm | 773 mm | 800 mm | 826 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 628.5 mm | 633 mm | 637.5 mm | 651.5 mm | 665 mm |
| Reach | 400 mm | 420 mm | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 563 mm | 584 mm | 605 mm | 629 mm | 652 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 405 mm | 420 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1168 mm | 1190 mm | 1212 mm | 1238 mm | 1265 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm | 17 mm |
| Standover Height | 742 mm | 737 mm | 733 mm | 740 mm | 754 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
