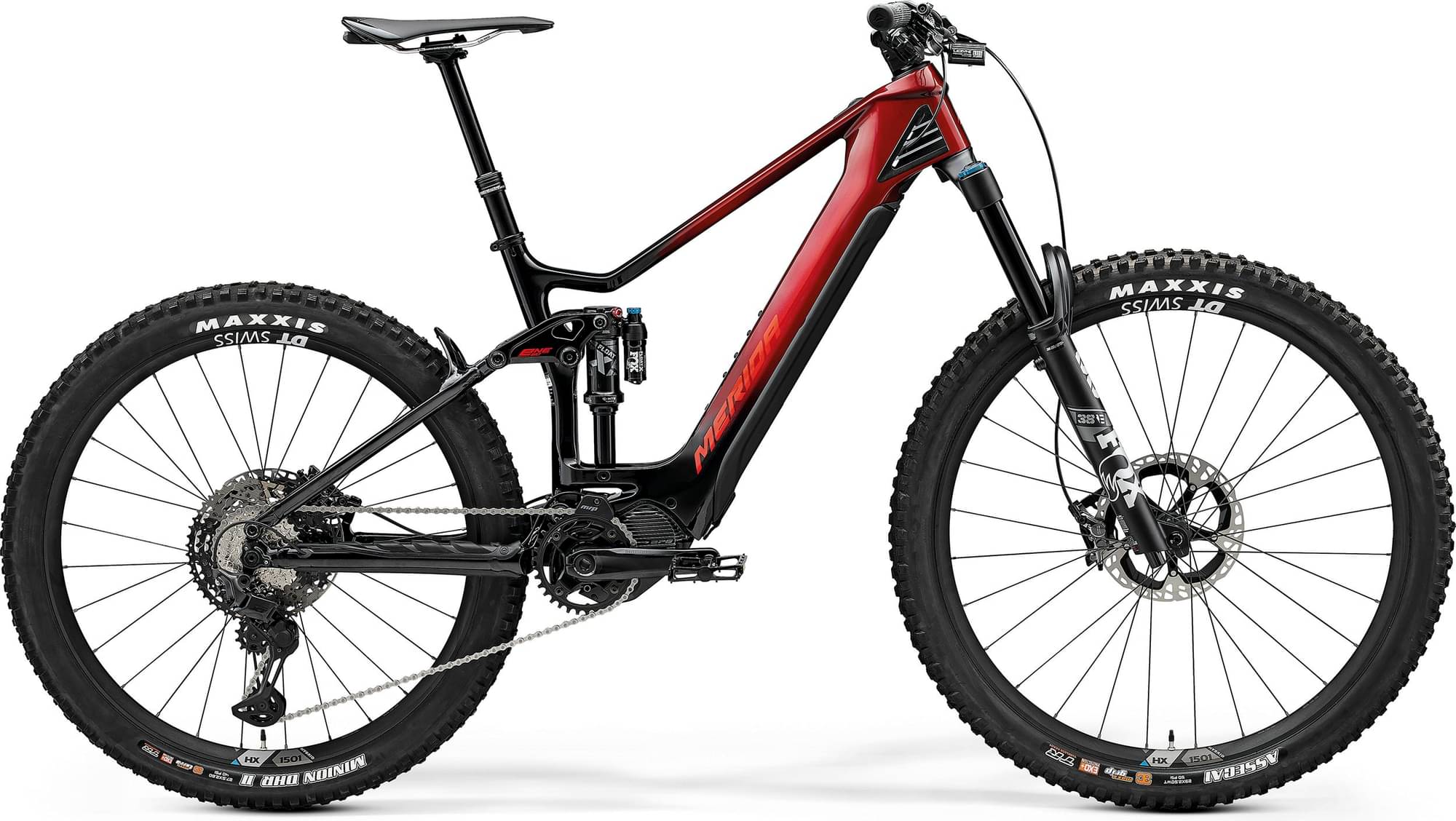

Merida eONE-SIXTY 9000 (EP801) 2024
2024 E-bike
Estimate price |
10,505$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 38
-
Groupset XT -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Shimano EN806, 630Wh Shimano EN805 504Wh for XS only -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY CFA II, material: carbon, 150mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh
Suspension Fork
FOX 38 Elite eMTB+ Air, 160mm suspension travel, Tapered, 51mm fork offset, 29x2.6" max wheelsize
Rear Shock
FOX Float X Performance Elite, platform
Drivetrain
Rear Derailleur
Shimano XT RDM8130 Shadow+ 11
Shift Levers
Shimano SL -MT800-IL / Shimano XT M8130 11
Cassette
Shimano LG600, 11-50 teeth, 11 speed
Crank
Shimano CRE80-B, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
CNLG500
Pedals
VP VPE-527
Wheels
Front Hub
MERIDA EXPERT TR, including removeable lever, 6/4mm allen key
Rear Hub
MERIDA EXPERT TR, including removeable lever, 6/4mm allen key
Rims
DT Swiss Spline HX1501 ONE 30 boost, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, Centerlock, material: aluminium, Tubeless ready (tubeless tape and valves included)
Tires
Front: Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis DHR II, 27.5x2.6 ", fold, 3C EXO+ TR
Brakes
Brakes
Shimano XT, 4 piston
Cockpit
Stem
MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
Handlebar
MERIDA EXPERT eTR, 780mm width, 20mm rise
Headset
MERIDA-8152
Seat
Saddle
MERIDA EXPERT CC, V-mount
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, XS 100mm travel seatpost - S 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost
Motor & Battery
Motor
Shimano EP801, 85Nm
Battery
Shimano EN806, 630Wh Shimano EN805 504Wh for XS only
Charger
Shimano EC-E8004, 4A charging current EC-E6002 for Israel, South Africa, Mexico, Argentina
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.449 mm | 1.416 mm | 1.385 mm |
| Front Center | 773 mm | 800 mm | 826 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 120 mm | 120 mm | 120 mm |
| Stack | 637.5 mm | 651.5 mm | 665 mm |
| Reach | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 605 mm | 629 mm | 652 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1212 mm | 1238 mm | 1265 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm |
| Standover Height | 733 mm | 740 mm | 754 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
