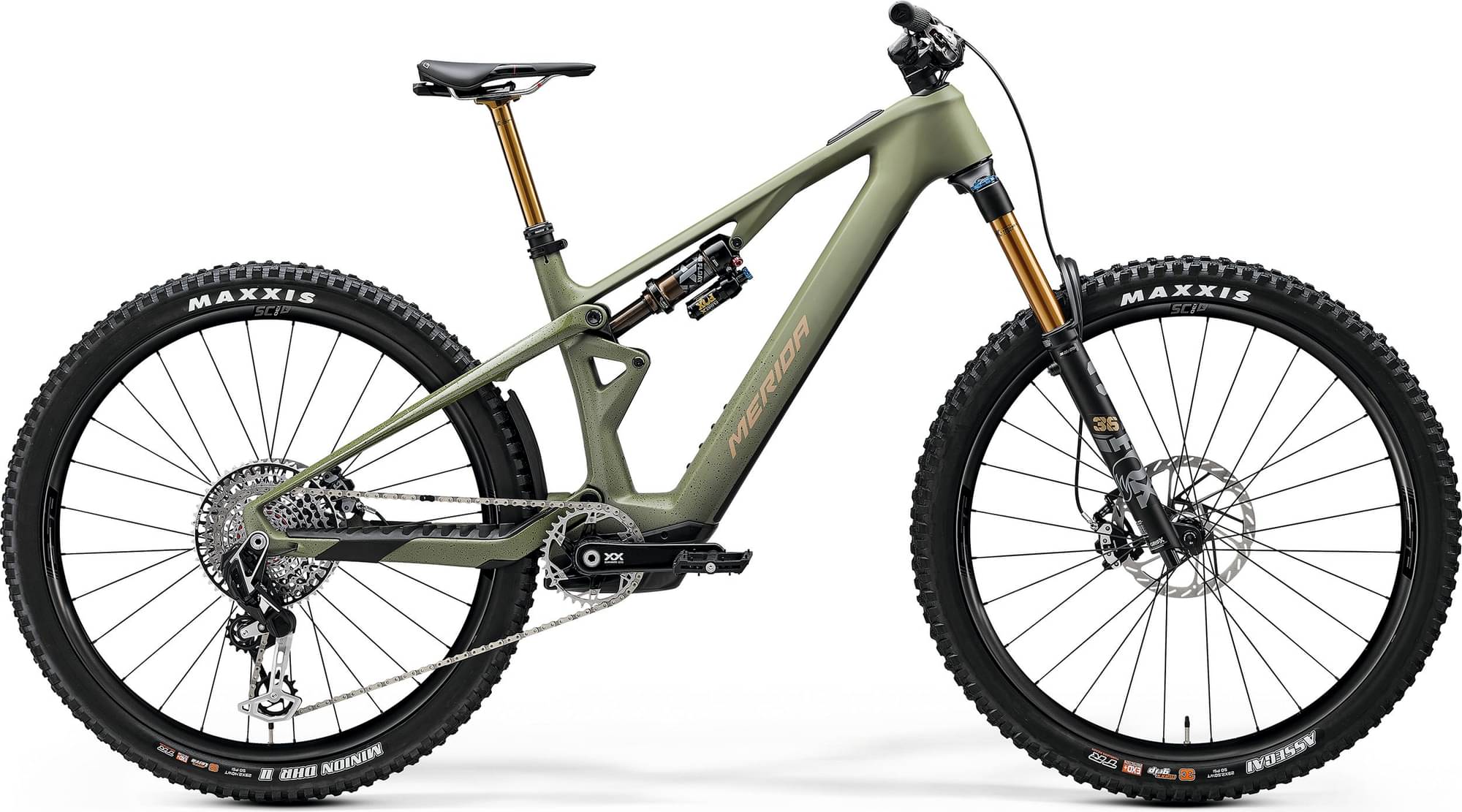

Merida eONE-SIXTY SL 10K 2025
2025 E-bike
Estimate price |
12,871$
Weight | 19.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Fork Fox Factory Float 36
-
Groupset XX Eagle Transmission, Eagle AXS -
Suspension Full -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch CompactTube 400 Wh, integrated -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Maven Ultimate Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY SL CF4, material: carbon, 160mm suspension travel, 29x2,4" max. wheelsize, 148x12mm axle standard, fixed battery
Suspension Fork
Fox 36 Float Factory, Air, 160mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
Rear Shock
Fox Float X Factory
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission AXS
Shift Levers
Fox Transfer remote / SRAM AXS Pod Ultimate Controller
Cassette
SRAM XX Eagle Transmission, 10-52, 12 speed
Crank
SRAM XX Eagle Transmission E-MTB for BOSCH, 34 teeth
Bottom Bracket
Bosch, press-fit
Chain
SRAM XX Eagle Transmission, Flattop
Pedals
VP VP-532
Wheels
Front Hub
MERIDA EXPERT TR, including removeable lever, 6/4mm allen key
Rear Hub
MERIDA EXPERT TR, including removeable lever, 6/4mm allen key
Rims
FSA SC I30, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, 6-Bolt, SRAM XD, material: carbon, Tubeless ready (tubeless tape and valves included)
Tires
Front: Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis Minion DHR II, 29x2.4 ", fold, TR EXO+ 3C MaxxTerra
Brakes
Brakes
SRAM Maven Ultimate, 4 piston
Cockpit
Stem
MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
Handlebar
Race Face Era, 780mm width, XSHORT,SHORT 20mm rise, MID, LONG,XLONG 40mm rise
Headset
Acros ICR MERIDA INTEGRATED neck w/ Blocklock
Seat
Saddle
Proxim Nembo Triox, V-mount adapter, incl. MERIDA minitool
Seatpost
Fox Transfer Factory, 34.9mm diameter, 0mm setback, XSHORT/SHORT: 150mm travel seatpost : MID: 180mm travel seatpost ? LONG: 210mm travel seatpost : XLONG: 240mm travel seatpost
Motor & Battery
Motor
Bosch Performance Line SX
Battery
Bosch CompactTube 400 Wh, integrated
Charger
Bosch 4A Charger (220-240V)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Short | Mid | Long | X-Long |
|---|---|---|---|---|
| Stack Reach Ratio | 1.391 mm | 1.33 mm | 1.278 mm | 1.229 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 779 mm | 804 mm | 829 mm | 854 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 134 mm | 134 mm | 134 mm | 134 mm |
| Stack | 616 mm | 620 mm | 625 mm | 629 mm |
| Reach | 443 mm | 466 mm | 489 mm | 512 mm |
| Top Tube Length | 567 mm | 591 mm | 616 mm | 640 mm |
| Seat Tube Angle | 78.5 ° | 78.5 ° | 78.5 ° | 78.5 ° |
| Seat Tube Length | 410 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 105 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1228 mm | 1253 mm | 1278 mm | 1303 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 757 mm | 761 mm | 768 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" |
