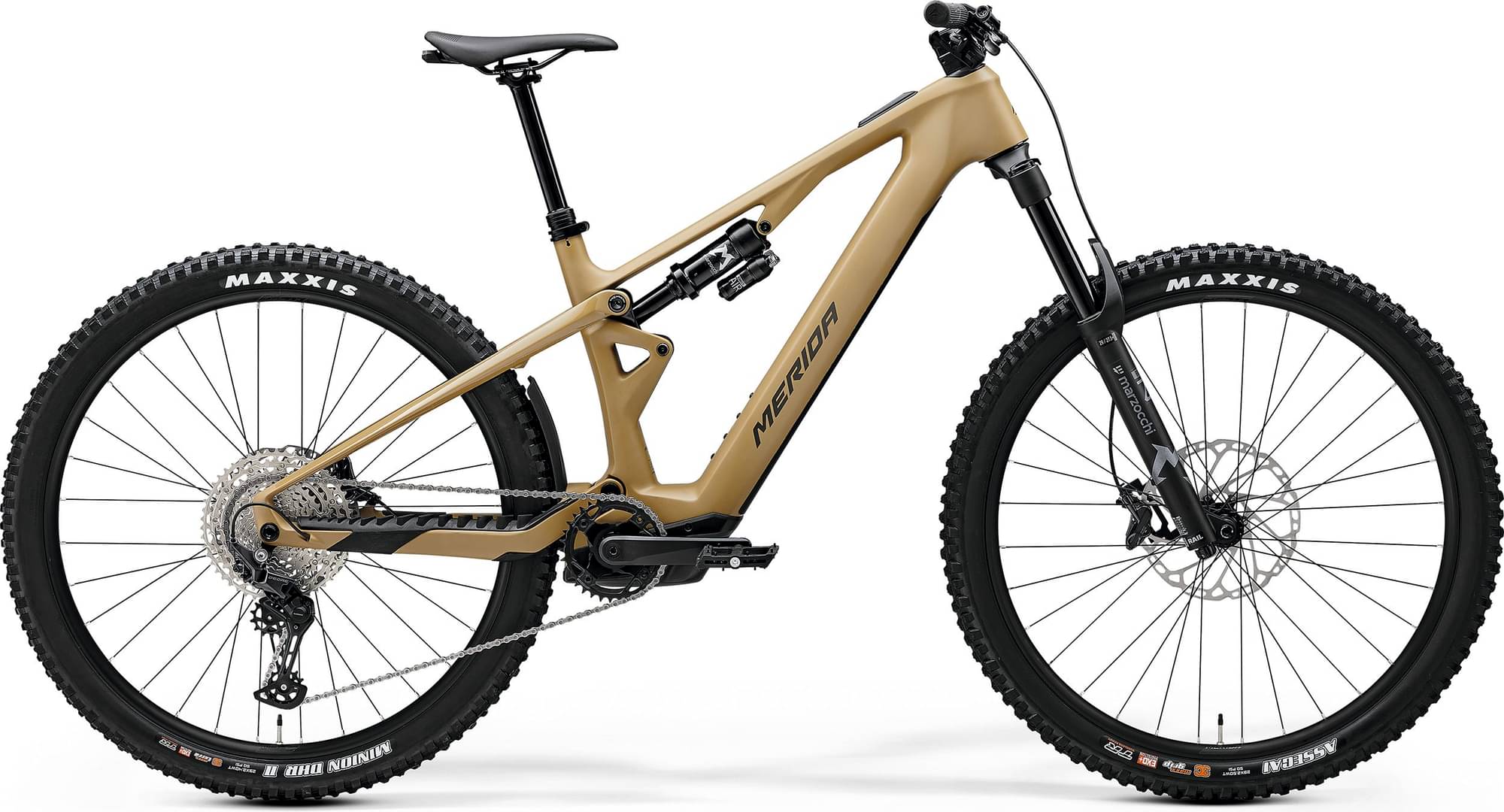

Merida eONE-SIXTY SL 6000 2025
2025 E-bike
Estimate price |
7,452$
Weight | 20.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Fork Marzocchi Bomber Z1
-
Groupset Deore -
Suspension Full -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch CompactTube 400 Wh, integrated -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY SL CF4, material: carbon, 160mm suspension travel, 29x2,4" max. wheelsize, 148x12mm axle standard, fixed battery
Suspension Fork
Marzocchi Z1 eMTB, Air, 160mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize
Rear Shock
Marzocchi Bomber Air, Platform
Drivetrain
Rear Derailleur
Shimano Deore
Shift Levers
Shimano SL: MT500-IL / Shimano Deore
Cassette
Shimano Deore, 10-51 teeth, 12 speed
Crank
FSA 1x Alloy Spider + Mega Tooth steel chain ring, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano Deore M6100
Pedals
VP VP-532
Wheels
Front Hub
Shimano TC500, 15x100mm width front hub, 32 spoke holes, Centerlock, 12x148mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TC500, 15x100mm width front hub, 32 spoke holes, Centerlock, 12x148mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 29"
Spokes
Black stainless
Tires
Front: Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis Minion DHR II, 29x2.4 ", fold, TR EXO+ 3C MaxxTerra
Brakes
Brakes
Shimano Deore M6120, 4 piston
Cockpit
Stem
MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
Handlebar
MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB
Headset
Acros ICR MERIDA INTEGRATED neck w/ Blocklock
Seat
Saddle
MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool
Seatpost
MERIDA COMP TR III, 34.9mm diameter, 0mm setback, XSHORT: 150mm travel seatpost : SHORT/MID: 170mm travel seatpost : LONG/XLONG: 200mm travel seatpost
Motor & Battery
Motor
Bosch Performance Line SX
Battery
Bosch CompactTube 400 Wh, integrated
Charger
Bosch 4A Charger (220-240V)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | X-Short | Short | Mid | Long | X-Long |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.455 mm | 1.391 mm | 1.33 mm | 1.278 mm | 1.229 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 753 mm | 779 mm | 804 mm | 829 mm | 854 mm |
| Rake | 43 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 135 mm | 134 mm | 134 mm | 134 mm | 134 mm |
| Stack | 611 mm | 616 mm | 620 mm | 625 mm | 629 mm |
| Reach | 420 mm | 443 mm | 466 mm | 489 mm | 512 mm |
| Top Tube Length | 543 mm | 567 mm | 591 mm | 616 mm | 640 mm |
| Seat Tube Angle | 78.5 ° | 78.5 ° | 78.5 ° | 78.5 ° | 78.5 ° |
| Seat Tube Length | 400 mm | 410 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1202 mm | 1228 mm | 1253 mm | 1278 mm | 1303 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 753 mm | 757 mm | 761 mm | 768 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
