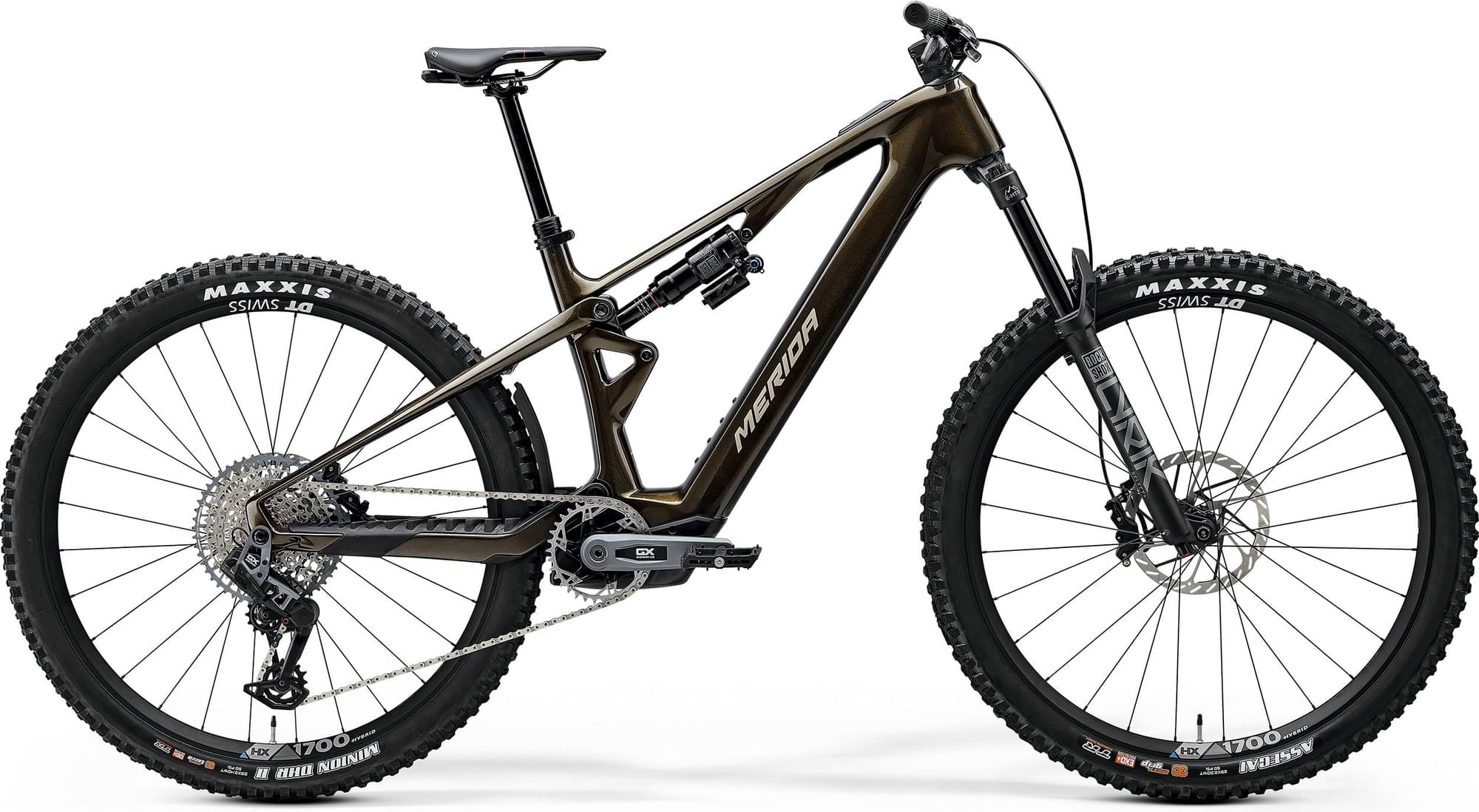

Merida eONE-SIXTY SL 8000 2025
2025 E-bike
Estimate price |
10,162$
Weight | 20.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Fork RockShox Lyrik Select+
-
Groupset XX Eagle Transmission, Eagle AXS -
Suspension Full -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch CompactTube 400 Wh, integrated -
Drivetrain 1 × 12 Electronic -
Brakes SRAM DB8 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY SL CF4, material: carbon, 160mm suspension travel, 29x2,4" max. wheelsize, 148x12mm axle standard, fixed battery
Suspension Fork
Rock Shox Lyric Select+ eMTB, Air, 160mm suspension travel: Tapered, 44mm fork offset, 29x2.6" max wheelsize
Rear Shock
Rock Shox Super Deluxe Select+
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission AXS
Shift Levers
JD GLS Stealth MMX / SRAM AXS Pod Controller
Cassette
SRAM GX Eagle Transmission, 10-52, 12 speed
Crank
SRAM XX Eagle Transmission E-MTB for BOSCH, 34 teeth
Bottom Bracket
Bosch, press-fit
Chain
SRAM GX Eagle Transmission, Flattop
Pedals
VP VP-532
Wheels
Front Hub
MERIDA EXPERT TR, including removeable lever, 6/4mm allen key
Rear Hub
MERIDA EXPERT TR, including removeable lever, 6/4mm allen key
Rims
DT Swiss HX 1700, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, 6-Bolt, SRAM XD, material: aluminium, Tubeless ready (tubeless tape and valves included)
Tires
Front: Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis Minion DHR II, 29x2.4 ", fold, TR EXO+ 3C MaxxTerra
Brakes
Brakes
SRAM DB8 Stealth, 4 piston
Cockpit
Stem
MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
Handlebar
MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB
Headset
Acros ICR MERIDA INTEGRATED neck w/ Blocklock
Seat
Saddle
Proxim Nembo Steel, V-mount adapter, incl. MERIDA minitool
Seatpost
MERIDA COMP TR III, 34.9mm diameter, 0mm setback, XSHORT: 150mm travel seatpost : SHORT/MID: 170mm travel seatpost : LONG/XLONG: 200mm travel seatpost
Motor & Battery
Motor
Bosch Performance Line SX
Battery
Bosch CompactTube 400 Wh, integrated
Charger
Bosch 4A Charger (220-240V)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | X-Short | Short | Mid | Long | X-Long |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.455 mm | 1.391 mm | 1.33 mm | 1.278 mm | 1.229 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 753 mm | 779 mm | 804 mm | 829 mm | 854 mm |
| Rake | 43 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 135 mm | 134 mm | 134 mm | 134 mm | 134 mm |
| Stack | 611 mm | 616 mm | 620 mm | 625 mm | 629 mm |
| Reach | 420 mm | 443 mm | 466 mm | 489 mm | 512 mm |
| Top Tube Length | 543 mm | 567 mm | 591 mm | 616 mm | 640 mm |
| Seat Tube Angle | 78.5 ° | 78.5 ° | 78.5 ° | 78.5 ° | 78.5 ° |
| Seat Tube Length | 400 mm | 410 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1202 mm | 1228 mm | 1253 mm | 1278 mm | 1303 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 753 mm | 757 mm | 761 mm | 768 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
