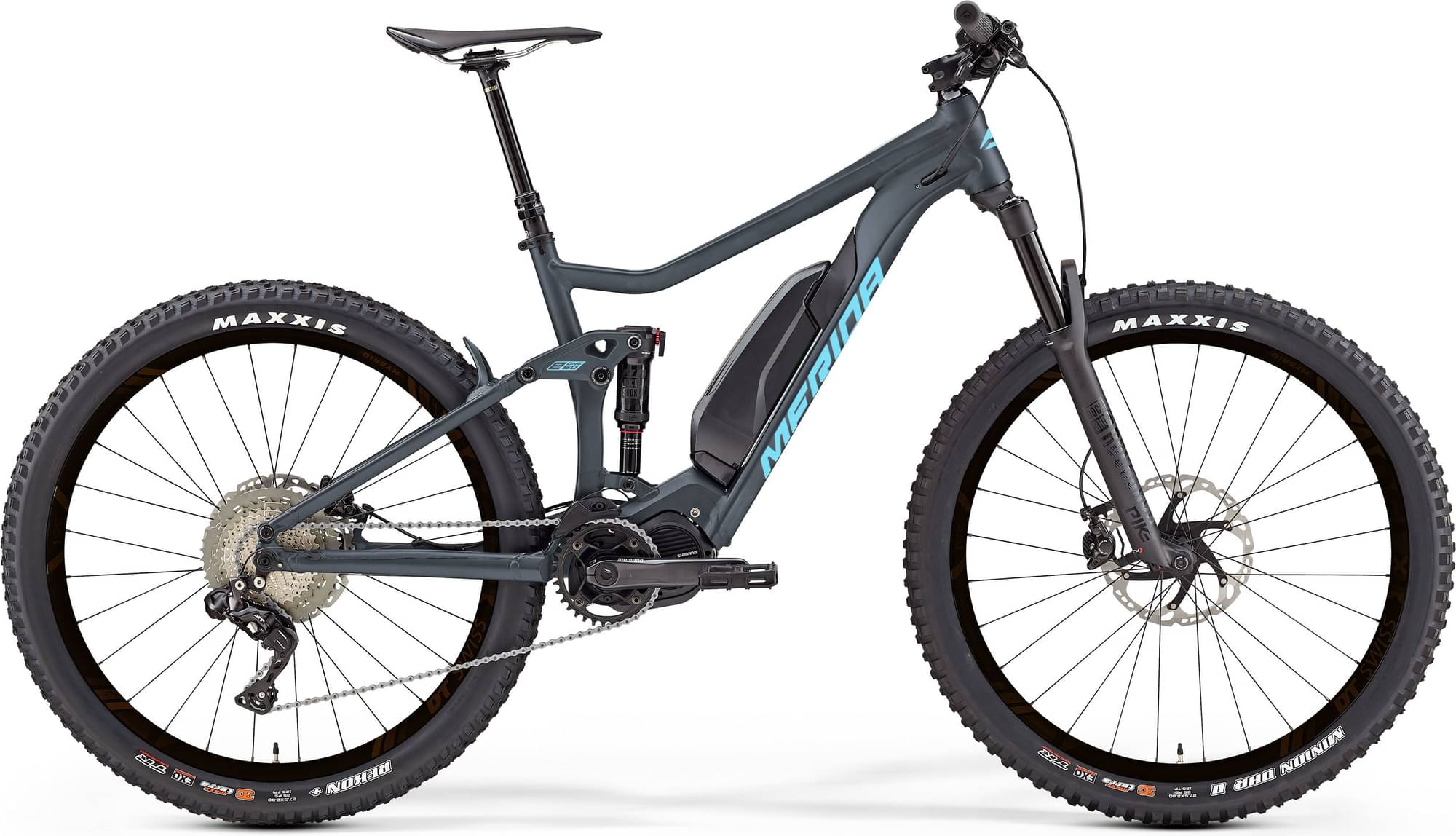

Merida eONE-TWENTY 500 2021
2021 E-bike
Estimate price |
3,827$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Fork Suntour XCR 34 -
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano E8016 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
167cm - 183cm
LG
177cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-TWENTY LITE
Suspension Fork
Suntour XCR34 LOR
Rear Shock
Rock Shox Deluxe Select
Drivetrain
Rear Derailleur
Shimano Deore RDM5120 10
Shift Levers
Shimano Deore M4100-IRC1 10
Cassette
Shimano M4100
Crank
Shimano CRE70-B
Chain
CNHG54
Wheels
Front Hub
Shimano MT400-B; 110x15 WHF; 32 SPH; Centerlock
Rear Hub
Shimano MT400-B
Rims
MERIDA COMP TR
Spokes
Black stainless
Tires
Kenda Regolith
Brakes
Brakes
Shimano M4100
Cockpit
Handlebar
MERIDA EXPERT eTR
Headset
FSA NO.55EP neck
Seat
Saddle
MERIDA COMP SL
Seatpost
MERIDA COMP TR
Motor & Battery
Motor
Shimano EP8
Battery
Shimano E8016
Remote
Shimano SC-E5003
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.423 mm | 1.38 mm | 1.341 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 328 mm | 328 mm |
| Front Center | 717 mm | 736 mm | 760 mm | 783 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 609 mm | 619 mm | 628 mm | 637 mm |
| Reach | 420 mm | 435 mm | 455 mm | 475 mm |
| Top Tube Length | 583 mm | 601 mm | 623 mm | 646 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1155 mm | 1174 mm | 1198 mm | 1221 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 698 mm | 730 mm | 751 mm | 783 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Max Height | 173 cm | 183 cm | 190 cm | cm |
Model Overview
eONE-TWENTY 500 is a Merida E Eone Twenty model. 15 e-bikes variations carry this model name so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2021 and its price was 3438$. If we compare this with the average Trail e-bike cost we notice that the price is 2.17% higher.
eONE-TWENTY 500 components
Fork
The fork installed on this bike is the Suntour XCR 34 model. The travel on this model is mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Merida eONE-TWENTY 500 2021, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
