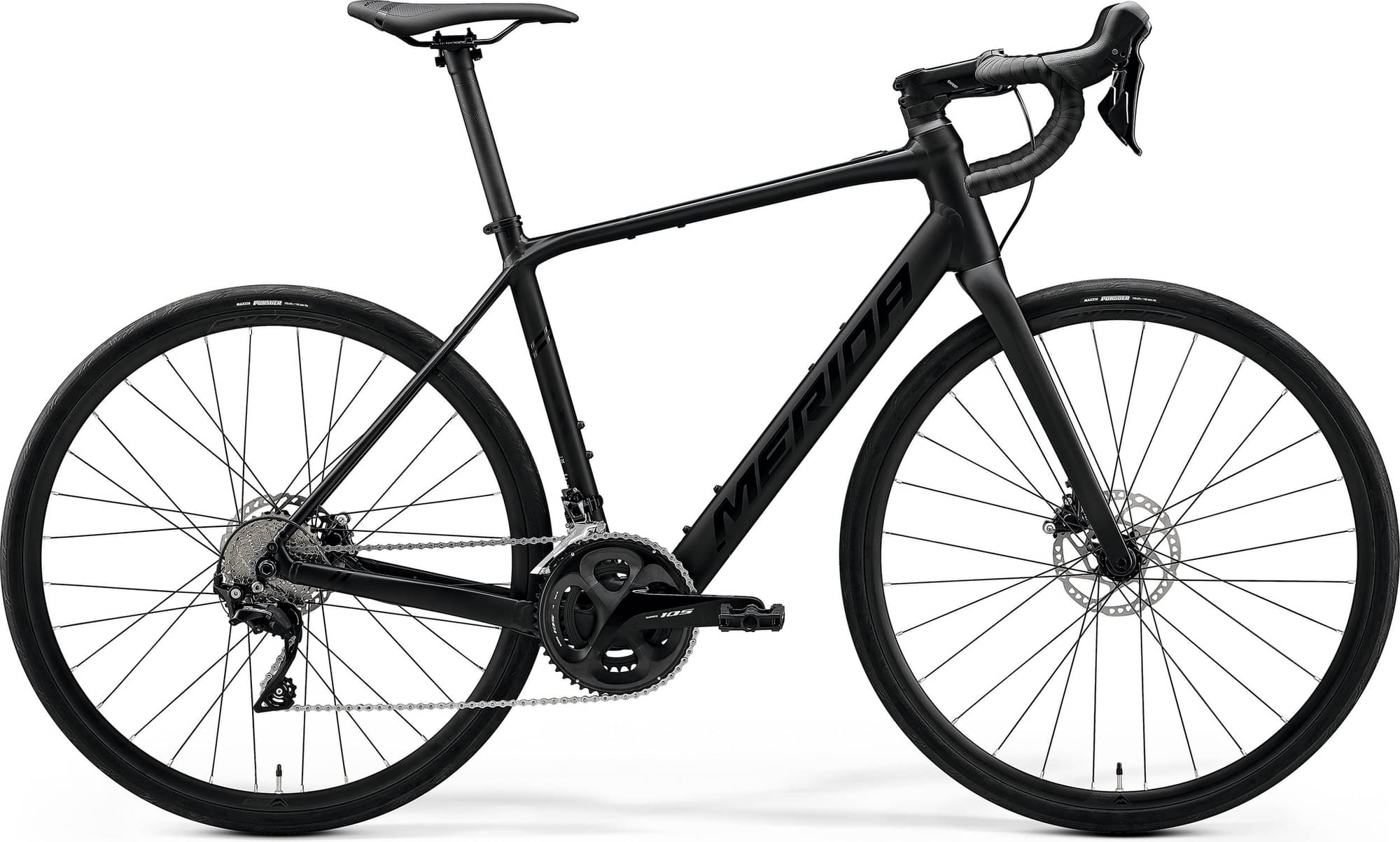

Merida eSCULTURA 400 2023
2023 E-bike
Estimate price |
4,282$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Motor MAHLE 40Nm hub-drive -
Battery Mahle B1-D, 250Wh -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSCULTURA LITE, material: aluminium, 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize, 100x9/135x9mm axle standard, BSA bottom bracket standard, MUK 40 Hanger
Suspension Fork
MERIDA SCULTURA CF, MDF09, material: carbon, 700x40C w/ fender max wheelsize
Drivetrain
Rear Derailleur
Shimano 105, GS
Front Derailleur
Shimano 105
Cassette
Shimano 105, 11-32 teeth, 11 speed
Crank
Shimano 105, 50-34 teeth, 170 mm-XS/S/SM/ML, 175 mm-L/XL
Bottom Bracket
Shimano BSA
Chain
KMC e11s
Pedals
VP VPE-891
Wheels
Front Hub
VP CLK170F, 100x12mm width front hub, 28 spoke holes, Centerlock
Rear Hub
VP CLK170F, 100x12mm width front hub, 28 spoke holes, Centerlock
Rims
MERIDA EXPERT SL, 17mm inner width, 22mm height aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Front: Maxxis Pursuer, 700x32C, fold, Rear: Maxxis Pursuer, 700x32C, fold
Brakes
Brakes
Shimano 105, 2 piston
Cockpit
Stem
MERIDA EXPERT IR, material: aluminium, 31.8mm diameter, 5° stem angle, 80 mm- XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
Handlebar
MERIDA EXPERT CW, material: aluminium, 400mm (XS/S), 420mm (M/L), 440 (XL)
Headset
VP MH-P16
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT CC, material: carbon, 30.9mm diameter, 0mm setback
Motor & Battery
Motor
Mahle X35+ Hub Engine, 40Nm
Battery
Mahle B1-D, 250Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.51 mm | 1.51 mm | 1.51 mm | 1.51 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 611 mm | 623 mm | 634 mm | 645 mm | 654 mm |
| Rake | 45 mm | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 78 mm | 73 mm | 71 mm | 68 mm | 65 mm |
| Stack | 567 mm | 583 mm | 599 mm | 615 mm | 631 mm |
| Reach | 376 mm | 386 mm | 397 mm | 408 mm | 418 mm |
| Top Tube Length | 527 mm | 542 mm | 557 mm | 572 mm | 587 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 145 mm | 160 mm | 175 mm | 190 mm | 205 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1034 mm | 1046 mm | 1057 mm | 1068 mm | 1078 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 750 mm | 769 mm | 787 mm | 806 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
eSCULTURA 400 completes the Merida E Escultura model. Merida launched 3 e-bikes of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race e-bikes
Our math shows that the average cost of a dependable Race e-bike is 4156$. However, you could also get a good Race e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Merida released this model in 2023, its price was 3892$. Comparing this to the average Race e-bike price, we see that the price is 6.78% smaller.
eSCULTURA 400 components
Fork material
eSCULTURA 400 has a carbon fork, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on eSCULTURA 400 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eSCULTURA 400 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
