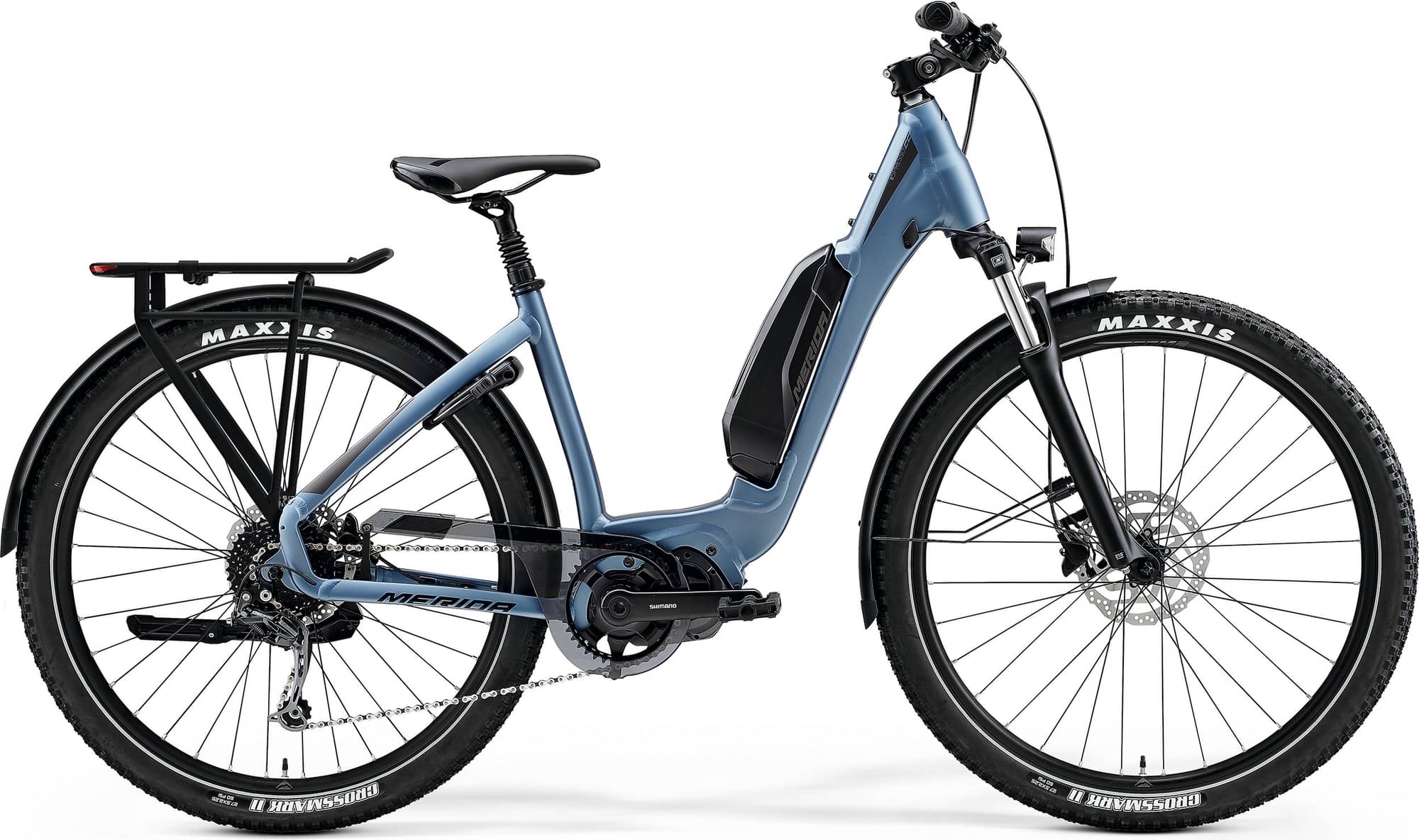

Merida eSPRESSO CC 400 SE EQ 2024
2024 E-bike
Estimate price |
3,249$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour NVX
-
Groupset Deore, Alivio -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8010, 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO LITE 650, material: aluminium, 27,5x2,25 max. wheelsize, 135x9mm axle standard, external, max. 504 Wh
Suspension Fork
SR Suntour NVX30 DS, Coil, 80mm suspension travel, 27,5x2,4" max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M3100, SGS
Shift Levers
Shimano Alivio
Cassette
Shimano HG200, 11-36 teeth, 9 speed
Crank
Shimano EP01A, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e9S
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TX505, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA 2346
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT TK, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Shimano E6100, 60Nm
Battery
Shimano E8010, 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.638 mm | 1.64 mm | 1.639 mm |
| Front Center | 674 mm | 693 mm | 713 mm |
| Rake | 43 mm | 44 mm | 44 mm |
| Trail | 84 mm | 83 mm | 83 mm |
| Stack | 642 mm | 661 mm | 680 mm |
| Reach | 392 mm | 403 mm | 415 mm |
| Top Tube Length | 588 mm | 605 mm | 623 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1114 mm | 1133 mm | 1153 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Standover Height | 472 mm | 465 mm | 461 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
