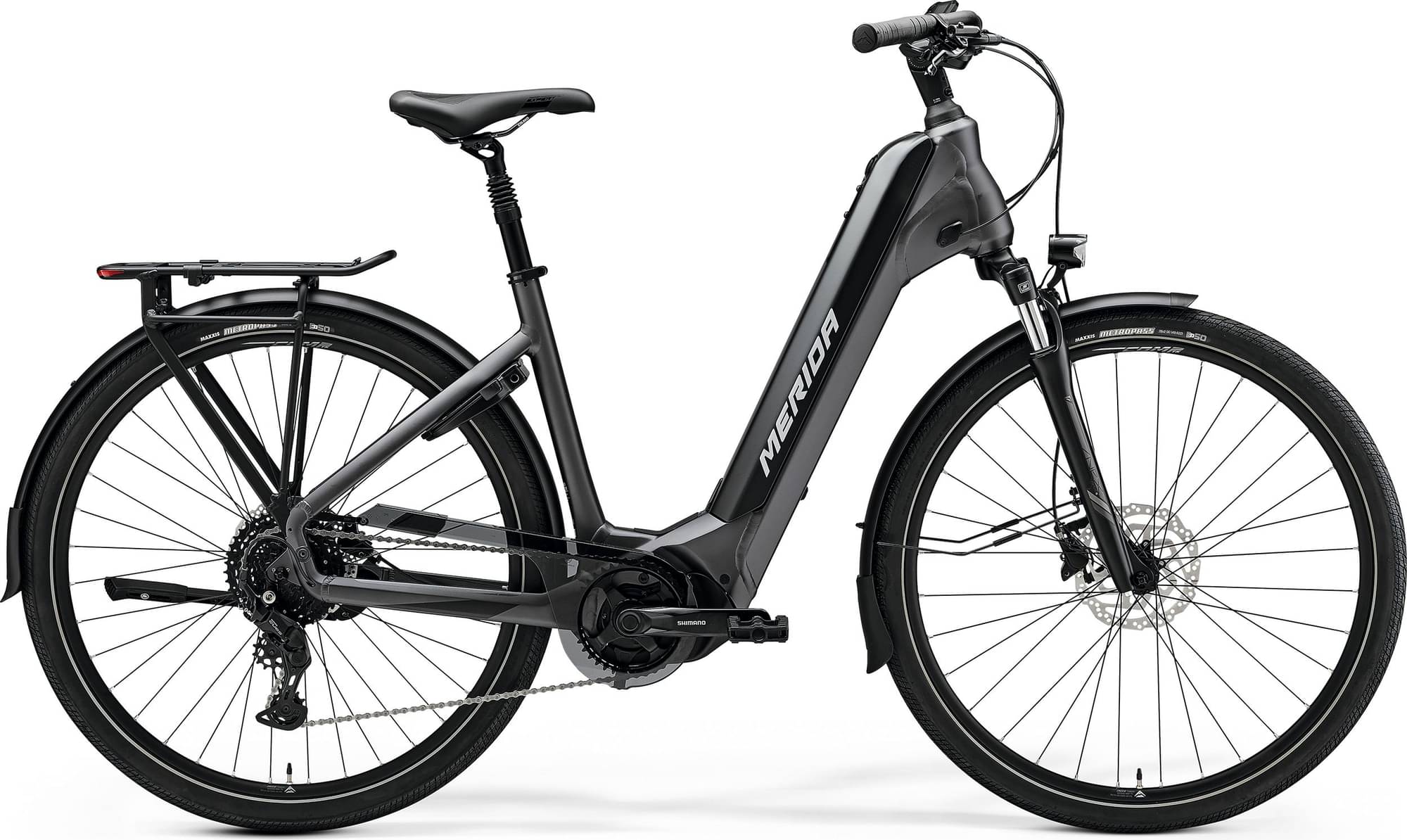

Merida eSPRESSO CITY 300 SE EQ 2025
2025 E-bike
Estimate price |
2,888$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset CUES -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano EN8035-L 504Wh, removable -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CITY LITE II, material: aluminium, 700x50C (with fender) max. wheelsize, 135x9mm axle standard, internal
Suspension Fork
SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize
Drivetrain
Rear Derailleur
Shimano CUES U4000
Shift Levers
Shimano CUES U4000
Cassette
Shimano LG300, 11-41 teeth, 9 speed
Crank
SM-CRE50 38T W/O CG
Bottom Bracket
BSA, threaded
Chain
Shimano LG500
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano QC300, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano QC300, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Metropass, 29x2.0", wire, reflecting line
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT, material: aluminium, 640mm width, 35mm rise
Headset
MERIDA 8252
Seat
Saddle
MERIDA EXPERT CT, V-mount
Seatpost
JD SP79, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Shimano E5000, 40Nm
Battery
Shimano EN8035-L 504Wh, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.699 mm | 1.657 mm | 1.591 mm | 1.552 mm |
| Front Center | 651 mm | 666 mm | 687 mm | 707 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 656 mm | 661 mm | 665 mm | 675 mm |
| Reach | 386 mm | 399 mm | 418 mm | 435 mm |
| Top Tube Length | 580 mm | 595 mm | 615 mm | 635 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 175 mm | 180 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1113 mm | 1128 mm | 1149 mm | 1169 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 413 mm | 413 mm | 412 mm | 412 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
