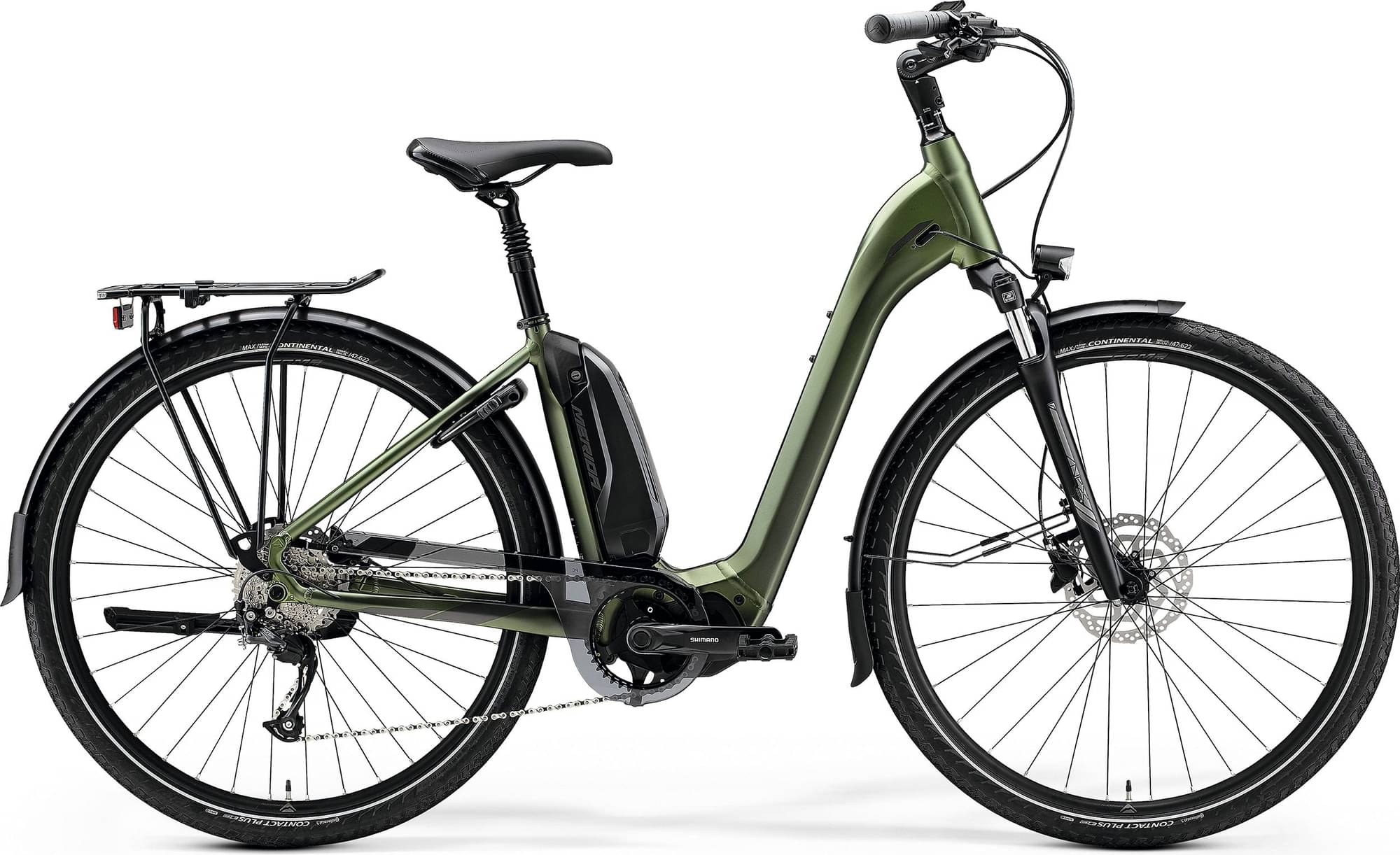

Merida eSPRESSO CITY 300 SE EQ 504Wh 2024
2024 E-bike
Estimate price |
2,835$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano E8010, 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CITY LITE, material: aluminium, 700x 42C (with fender) wheelsize, 142x12mm axle standard, external, max. 504 Wh
Suspension Fork
SR Suntour NEX-PM-DS, Coil, 63mm suspension travel, 700x48C max wheelsize
Drivetrain
Rear Derailleur
Shimano Altus M2000, SGS
Shift Levers
Shimano Altus
Cassette
Shimano HG400, 11-36 teeth, 9 speed
Crank
Shimano CRE50, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e9S
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Contact Plus, 622-47, wire, reflecting line
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 640mm width, 35mm rise
Headset
MERIDA 2346
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT TK, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Shimano E5000, 40Nm
Battery
Shimano E8010, 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.674 mm | 1.68 mm | 1.698 mm | 1.699 mm | 1.716 mm |
| Front Center | 659 mm | 662 mm | 672 mm | 682 mm | 690 mm |
| Rake | 46 mm | 46 mm | 46 mm | 47 mm | 46 mm |
| Trail | 81 mm | 78 mm | 78 mm | 74 mm | 75 mm |
| Stack | 651 mm | 662 mm | 676 mm | 693 mm | 707 mm |
| Reach | 389 mm | 394 mm | 398 mm | 408 mm | 412 mm |
| Top Tube Length | 575 mm | 590 mm | 605 mm | 620 mm | 635 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 415 mm | 450 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 185 mm | 200 mm | 215 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1140 mm | 1143 mm | 1153 mm | 1163 mm | 1171 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 378 mm | 379 mm | 379 mm | 380 mm | 380 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
